HLC-22-93 Passenger Elevator
EMI Available
Model: HLC-22-93
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm

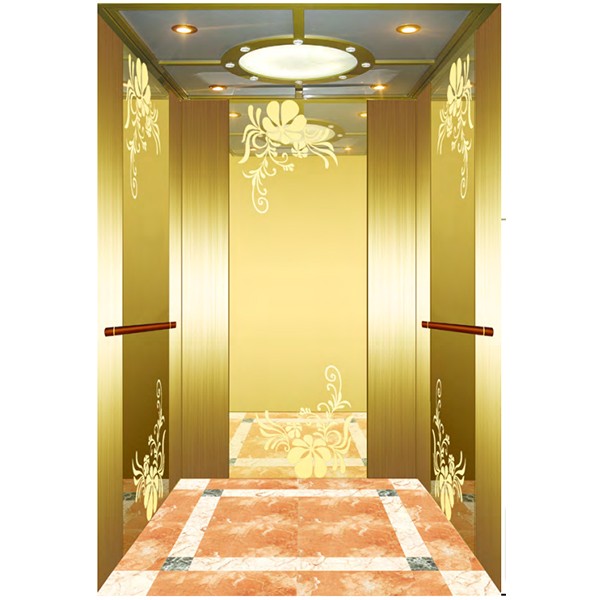

3. CAR SPECIFICATION:

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

Car Design

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Hairline Titanium Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm


Note: This pattern can also be processed into natural color, concave gold, rose gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.




Elevating Excellence with the HLC-22-93 450kg 6 Passenger Elevator

Elevators are a vital component of modern buildings, enhancing accessibility and convenience. If you're a property developer, building owner, or architect, selecting the right elevator is essential to provide a seamless and efficient vertical transportation experience. The HLC-2022-93 450kg 6 Passenger Elevator is a remarkable solution designed to meet these demands. In this blog, we'll explore the key features and benefits of this innovative elevator, designed to elevate your building's style, safety, and efficiency.

    Space Efficiency

      The HLC-2022-93 elevator is designed with space efficiency in mind. With a weight capacity of 450 kilograms and the ability to comfortably transport up to six passengers, it's a perfect choice for small to medium-sized buildings. The compact design ensures efficient use of space while providing a comfortable and efficient ride.

        Safety Features

          Safety is paramount when it comes to elevators, and the HLC-2022-93 is equipped with advanced safety features to provide passengers with peace of mind during their journeys. Some of the safety features include:

          • Emergency stop buttons for immediate halting in case of any issues.
          • Overload protection to prevent exceeding the weight limit.
          • Fire-rated landing doors for enhanced fire safety.
          • Safety interlocks to ensure the doors open only when the elevator is at the designated floor.

          The HLC-2022-93 elevator is designed for reliability, reducing the risk of breakdowns and the associated maintenance costs.

            Modern Technology

              This elevator incorporates cutting-edge technology to enhance its performance and energy efficiency. The control system ensures smooth and precise stops, reducing wear and tear on elevator components. The elevator is equipped with LED lighting and a digital floor display to add a modern touch to your building's interior, enhancing its overall appeal and leaving a lasting impression on both occupants and visitors.

                Customization Options

                  Every building is unique, and the HLC-2022-93 elevator offers customization options to ensure it aligns with your specific requirements. You can choose from a variety of cabin finishes, materials, and color schemes to match your building's aesthetics, allowing for a seamless integration with the overall design and style of your property.

                    Energy Efficiency

                      In today's environmentally conscious world, energy efficiency is a critical consideration. The HLC-2022-93 elevator is designed to reduce your building's energy consumption, making it a cost-effective and eco-friendly choice. Its efficient motor and lighting systems help lower energy usage, resulting in operational cost savings and a reduced carbon footprint.

                        Low Maintenance

                          Proper maintenance is essential for elevator performance and longevity. The HLC-2022-93 elevator is built with high-quality materials and components, reducing the frequency of maintenance and repairs. Accessible service panels and diagnostic tools simplify maintenance procedures, ensuring the elevator operates smoothly for years to come.

                          Conclusion
