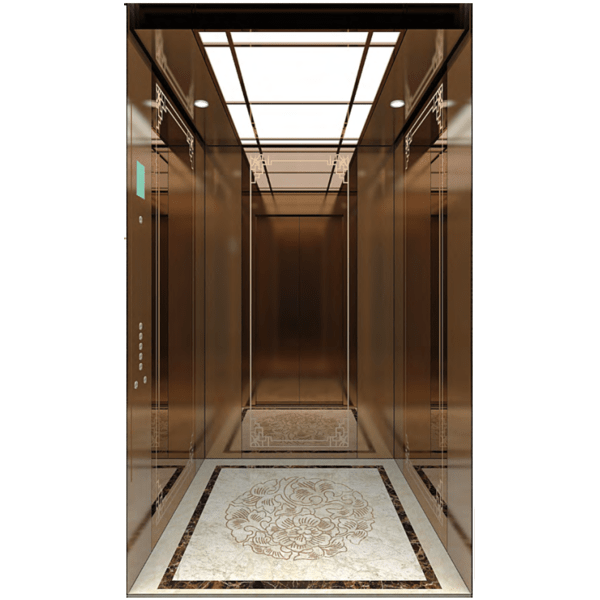

HLC-22-96 Passenger Elevator
EMI Available
Model: HLC-22-96
Brand: HAYASHIMU
0.00 0.00

1000kg 13 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

1000 kg / 13 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

2050 mm (W)x 2050 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1600 mm (W) x 1400 mm (D) x 2500mm (H) as per shaft size

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevate Your Building's Mobility with the HLC-22-96 1000kg 13 Passenger Elevator

In today's fast-paced world, efficient and reliable vertical transportation is a necessity for any building, be it a commercial space or a residential complex. If you're looking for a passenger elevator that combines cutting-edge technology, safety, and a spacious design, the HLC-2022-96 1000kg 13 Passenger Elevator might be just what you need. In this blog, we'll explore the features and benefits of this impressive elevator solution that's making waves in the industry.

    Space and Capacity:

      The HLC-2022-96 Passenger Elevator offers a spacious interior, capable of accommodating up to 13 passengers or a maximum load of 1000kg. This generous capacity is ideal for busy office buildings, high-rise residential complexes, and commercial establishments where efficient transportation of people and goods is essential.

        Safety Features:

          Safety is paramount when it comes to elevators, and the HLC-2022-96 doesn't disappoint. Equipped with advanced safety features, including emergency brakes, fire service mode, and anti-vandalism measures, this elevator ensures the well-being of passengers at all times. Additionally, it complies with international safety standards, giving you peace of mind.

            Energy Efficiency:

              In today's environmentally conscious world, energy efficiency is a top priority. The HLC-2022-96 Passenger Elevator is designed with energy-saving components to reduce power consumption, making it a green and cost-effective choice for your building. With LED lighting and a regenerative drive system, it helps you cut down on operational costs while minimizing your environmental footprint.

                Smooth and Silent Ride:

                  The elevator boasts a modern and efficient traction system, delivering a smooth and quiet ride. The noise-reducing features ensure minimal disruption to your building's occupants, providing a pleasant and comfortable experience for all passengers.

                    Customization Options:

                      Every building has its unique design and aesthetic requirements, and the HLC-2022-96 Elevator can be customized to match your specific needs. You can choose from a range of cabin finishes, materials, and lighting options to blend seamlessly with your interior decor.

                        User-Friendly Control Panel:

                          The elevator is equipped with an intuitive and user-friendly control panel, ensuring that passengers of all ages and abilities can operate it easily. The system provides real-time information on the elevator's status, ensuring transparency and convenience.

                            Maintenance and Reliability:

                              With regular maintenance and expert service, the HLC-2022-96 Passenger Elevator is built to provide years of reliable performance. It features a self-diagnostic system that can alert technicians to potential issues before they become significant problems, minimizing downtime and maximizing operational efficiency.

                              Conclusion

                              The HLC-2022-96 1000kg 13 Passenger Elevator is a testament to modern engineering and design. It offers a blend of space, safety, energy efficiency, and customization that makes it an ideal choice for any building. Whether you're a property manager, architect, or building owner, this elevator solution can enhance the overall experience within your space while adhering to the highest safety standards. Elevate your building's mobility with the HLC-2022-96 Elevator and provide your occupants with a state-of-the-art vertical transportation experience.
