HLC-22-97 Passenger Elevator
EMI Available
Model: HLC-22-97
Brand: HAYASHIMU
0.00 0.00

450kg 6 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

450 kg / 6 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1650 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm



3. CAR SPECIFICATION:

Car Internal Dimension

1150 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

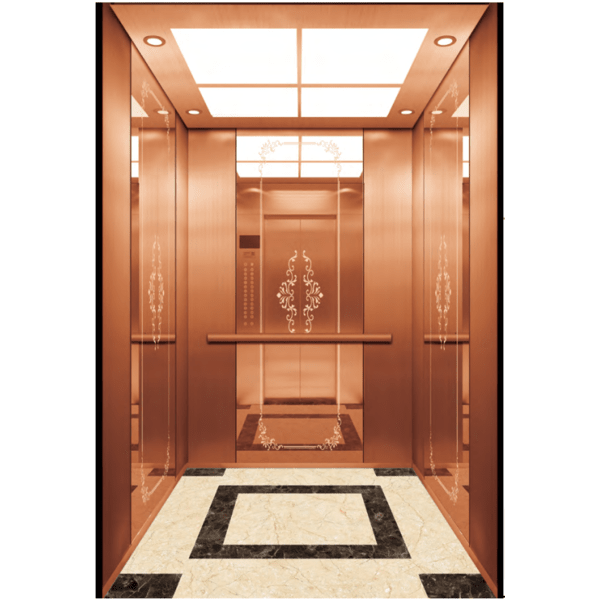

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevating Small Spaces: The HLC-22-97 450kg 6 Passenger Elevator

In the world of vertical transportation, one size doesn't fit all. Some spaces require a compact yet efficient elevator solution to meet the needs of a limited number of passengers. Enter the HLC-2022-97 450kg 6 Passenger Elevator, a versatile and practical choice for buildings where space and passenger capacity are at a premium. In this blog, we'll delve into the features and benefits of this remarkable elevator, which is gaining popularity for its adaptability and performance.

    Space Efficiency:

      The HLC-2022-97 450kg 6 Passenger Elevator is designed with compact spaces in mind. It efficiently utilizes available space, making it an excellent choice for smaller commercial buildings, residential complexes, or any location where maximizing space is essential.

        Passenger Capacity:

          Despite its compact size, this elevator can comfortably accommodate up to six passengers or a maximum load of 450kg. This makes it a suitable choice for low to medium-traffic areas, ensuring convenient and efficient transportation for both people and goods.

            Safety First:

              Safety is a non-negotiable aspect of any elevator, and the HLC-2022-97 doesn't cut corners. It comes equipped with an array of safety features such as emergency stop buttons, fire service mode, and reliable interlocks. Passengers can trust that their well-being is safeguarded at all times.

                Smooth and Silent Operation:

                  The elevator is designed for a smooth and silent ride. Its advanced traction system and noise-reducing features guarantee a quiet and comfortable experience for passengers, minimizing disturbances within the building.

                    Energy Efficiency:

                      Just like its larger counterparts, the HLC-2022-97 focuses on energy efficiency. It incorporates LED lighting and a regenerative drive system, reducing energy consumption and operational costs. This green approach is not only good for the environment but also for your building's bottom line.

                        Customization Options:

                          Despite its smaller size, this elevator can still be customized to fit your specific needs. You can choose from various cabin finishes, materials, and lighting options to create a personalized look that complements your building's aesthetics.

                            User-Friendly Controls:

                              The elevator's control panel is intuitive and user-friendly, ensuring that passengers of all ages and abilities can operate it with ease. Real-time information on the elevator's status adds transparency and convenience.

                                Maintenance and Reliability:

                                  With proper maintenance and regular service, the HLC-2022-97 450kg 6 Passenger Elevator is built for years of reliable performance. Its self-diagnostic system can detect potential issues before they become major problems, reducing downtime and keeping your operations running smoothly.

                                  Conclusion

                                  The HLC-2022-97 450kg 6 Passenger Elevator is a space-efficient, reliable, and user-friendly solution for smaller buildings with limited vertical transportation needs. Whether you're dealing with tight spaces in a commercial setting or need an elevator for a small residential complex, this model offers a practical solution that combines safety, efficiency, and customization. Elevate your small space with the HLC-2022-97, and provide your occupants with a reliable and efficient means of vertical transportation.
