HLC-22-98 Passenger Elevator
EMI Available
Model: HLC-22-98
Brand: HAYASHIMU
0.00 0.00

630kg 8 Passenger Elevator!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "[email protected] "or" [email protected]"



Brand New and Fully Imported Product.

Product Specification:

1. GENERAL DATA

Brand

HAYASHIMU

Type

Passenger Elevator

Country of Origin

China

Capacity & Person

630 kg / 8 Persons

Speed

1.0 M/Sec

No of floors/stops

8 Floors / 8 Stops

Service Floor Name

G Floor to 7th Floor

Traction Motor

HAYASHIMU

Control

Nice 3000+ (with HAYASHIMU Technology)

Type of Control

AC-VVVF (Variable Voltage & Variable Frequency)

Operation

Simplex, Full Collective Operation

Door Motor Inverter

Monarch

Conformity (Safety Code)

European safety code for lifts EN81.1

Type of Machine Room

Machine Room Lift

Rope & Guide Rail Type

2.5:1

Rope

05 Wire

Landing & Cabin Door Type

2-Panel Center Opening (Automatic Operation)

Ceiling Type

Standard

Safety Device

Door Safety Edge, Overload Device & Overload System, Emergency Lighting & Interphone, Alarm/Buzzer, Governor, Spring Buffer & Safety Gear.

Spare parts

Available from ready stock

After Sales service

01 (One) Year free service

Warranty

12 (Twelve) months



2. SHAFT SPECIFICATION:

Shaft Size

1850 mm (W)x 1750 mm (D) (Size will be changed as per site)

Total Travel

Approx. 27.9 m (approx.)

Pit Depth

1500 mm

Overhead

4700 mm

Machine Room Height

2500 mm

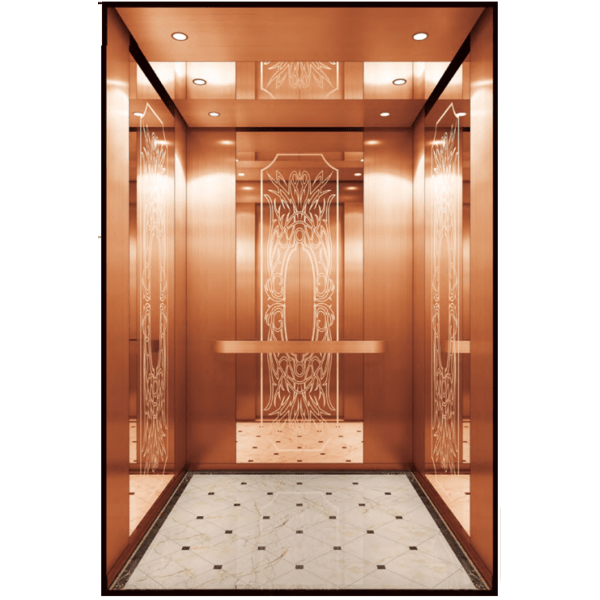

3. CAR SPECIFICATION:

Car Internal Dimension

1400 mm (W) x 1100 mm (D) x 2500mm (H) as per shaft size

Car Design

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Front Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Side Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Wall (Real Wall)

Rose Gold Stainless Steel Mirror Etching Finish

Car Ceiling

According to Design

Car Floor

According to Design

Handrail

According to Design (Round/Flat Type at Back Wall)

Sheet Grade & Thickness

SUS 304 Grade & Thickness 1.2 mm

Note: This pattern can also be processed into natural color, titanium gold, concave gold, Champagne gold, black titanium.

Landing Door Decoration:

We offer a variety of designs for you to choose from, allowing you to customize your lift landing door to your preferences.


Elevating Your Space: The HLC-22-98 630kg 8 Passenger Elevator

In the world of vertical transportation, innovation and adaptability are paramount. The HLC-2022-98 630kg 8 Passenger Elevator represents a prime example of how modern engineering is revolutionizing the way we move within buildings. If you're seeking a versatile and efficient elevator solution for your space, this blog is your guide to understanding the incredible features and benefits of the HLC-2022-98.

    Optimal Space Utilization:

      The HLC-2022-98 Passenger Elevator is designed to maximize space while providing efficient transportation for your building. With a focus on adaptability, it's ideal for various settings, whether you're outfitting a commercial building, a residential complex, or any space where space utilization is critical.

        Passenger Capacity:

          This elevator boasts a generous capacity, accommodating up to 8 passengers or a maximum load of 630kg. This makes it the perfect choice for areas with moderate passenger traffic, ensuring both comfort and efficiency.

            Safety Redefined:

              Safety is a top priority, and the HLC-2022-98 doesn't compromise in this regard. It is equipped with a range of safety features, including emergency brakes, fire service mode, and dependable interlocks, ensuring passenger well-being is never in question.

                Smooth and Silent Operation:

                  The elevator's modern traction system and noise-reducing components guarantee a smooth and quiet ride, reducing disturbances within the building. This ensures a comfortable experience for passengers, making it a seamless addition to any space.

                    Energy Efficiency:

                      In an era where energy conservation is paramount, this elevator shines. It integrates LED lighting and a regenerative drive system, resulting in reduced energy consumption and operational costs. Going green with the HLC-2022-98 not only benefits the environment but also your budget.

                        Customization Options:

                          Despite its standardized design, this elevator provides ample customization options. You can choose from various cabin finishes, materials, and lighting options to personalize the look and feel, allowing it to seamlessly blend with your building's aesthetics.

                            User-Friendly Control Panel:

                              The elevator's control panel is intuitive and user-friendly, ensuring passengers of all ages and abilities can operate it with ease. Real-time information on the elevator's status provides transparency and convenience.

                                Maintenance and Reliability:

                                  With proper maintenance and regular service, the HLC-2022-98 630kg 8 Passenger Elevator is built to deliver years of reliable performance. Its self-diagnostic system can identify potential issues before they escalate, reducing downtime and ensuring a smooth operational experience.

                                  Conclusion

                                  The HLC-2022-98 630kg 8 Passenger Elevator offers a blend of adaptability, efficiency, and safety that is tailored to meet the unique needs of your building. Whether you're managing a commercial establishment or a residential complex, this elevator solution is designed to elevate your space in every sense of the word. Elevate your building's mobility with the HLC-2022-98, providing your occupants with a reliable and efficient means of vertical transportation that redefines convenience and performance.
