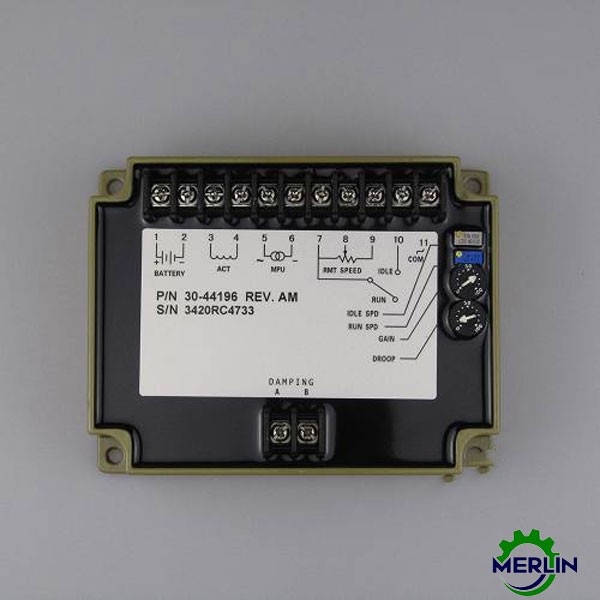

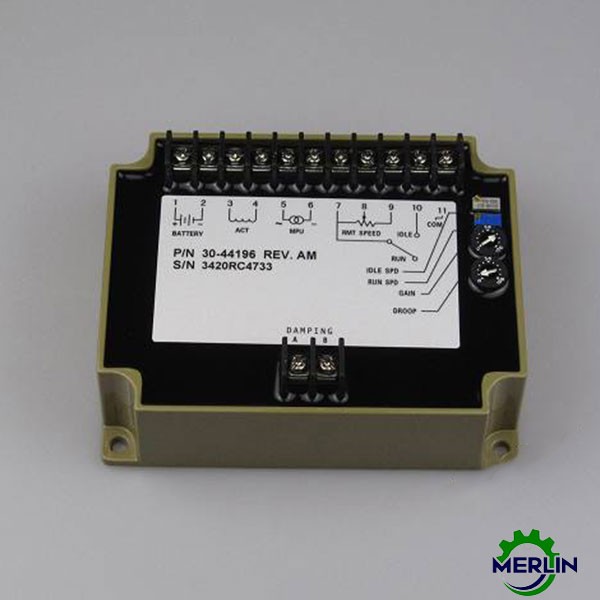

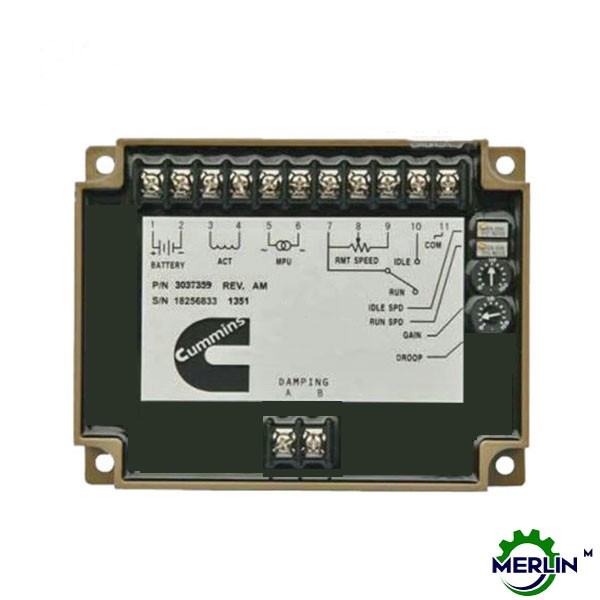

Cummins EFC 3044196 | CUMMINS EFC SPEED CONTROLLER!
SPECIFICATIONS
& PERFORMANCE of Cummins 3044196 Speed Governor:
Operating Voltage: 12 or 24 volts ±20%
Steady State Speed Band: ±0.25%
Ambient Operating Temperature: -40℃ to +85℃
Temperature Stability: Better than ±0.5% over temperatures of -40℃ to +125℃
Mechanical Vibration: Withstands the following vibration without failure or
degraded , performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to
30 Hz
Connections: Terminal strip
Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs.) Magnetic Pickup Frequency Range: 2500 - 5000 Hz
Output Signal: PWM current to 5A at max.
Actuator Compatibility: EFC3408324, DYNA2000, DYNA2500
SPECIFICATION of 3044196 Cummins EFC Speed Controler: |
|
|
RPM Stability: |
<±0.25% |
|
Speed Range: |
1KHz ~ 6.5KHz |
|
Thermal Stability: |
Max ±0.7% |
|
IDLE Regulation: |
260 ±20Hz |
|
DROOP Regulation: |
Minimum 15Hz ±6Hz/ 1 Amp |
|
Maximum: 400Hz ±75Hz/ 1 Amp |
|
|
External Speed Regulation: |
±200Hz (with 1 KΩ connected) |
|
AUX Input Sensitivity: |
148Hz / 1V., ±10Hz |
|
Impedance: |
1MΩ |
|
Working Temp Range: |
-40 ~ 85 °C |
|
ENVIRONMENT: |
|
|
Working Humidity Range: |
Maximum 95% |
|
Stocking Temp: |
-55 ~ 92 °C |
|
Shocking: |
20-100HZ 500mm/Sec. |
|
INPUT POWER PROVIDE: |
|
|
Voltage: |
24V |
|
Grounding Pole: |
Negative pole |
|
Power Provide: |
40mA |
|
Actuator Continuous Current: |
Minimum 1A, Maximum 4.5A |
|
MPU: |
|
|
Signal: |
2 ~ 120V RMS |
|
SPECIFICATION: |
|
|
RPM Stability: |
<±0.25% |
|
Speed Range: |
1KHz ~ 6.5KHz |
|
Thermal Stability: |
Max ±0.7% |
|
IDLE Regulation: |
260 ±20Hz |
|
DROOP Regulation: |
Minimum 15Hz ±6Hz/ 1 Amp |
|
Maximum: 400Hz ±75Hz/ 1 Amp |
|
|
External Speed Regulation: |
±200Hz (with 1 KΩ connected) |
|
AUX Input Sensitivity: |
148Hz / 1V., ±10Hz |
|
Impedance: |
1MΩ |
|
Working Temp Range: |
-40 ~ 85 °C |
|
ENVIRONMENT: |
|
|
Working Humidity Range: |
Maximum 95% |
|
Stocking Temp: |
-55 ~ 92 °C |
|
Shocking: |
20-100HZ 500mm/Sec. |
|
INPUT POWER PROVIDE: |
|
|
Voltage: |
12V or 24V |
|
Grounding Pole: |
Negative pole |
|
Power Provide: |
40mA |
|
Actuator Continuous Current: |
Minimum 1A, Maximum 4.5A |
|
MPU: |
|
|
Signal: |
2 ~ 120V RMS |
