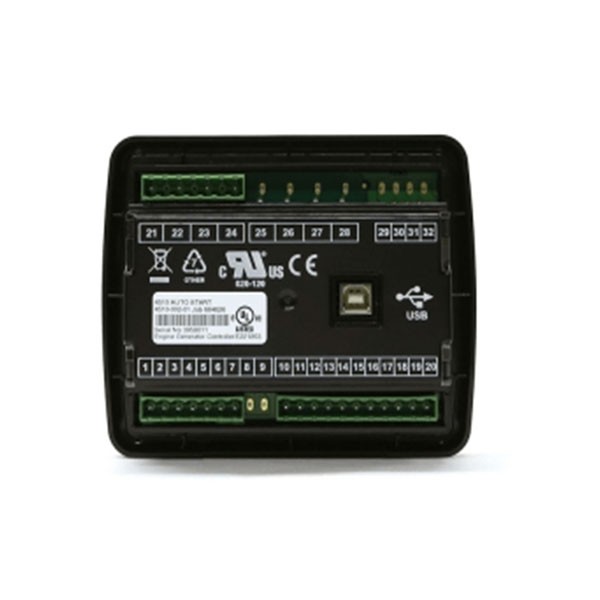

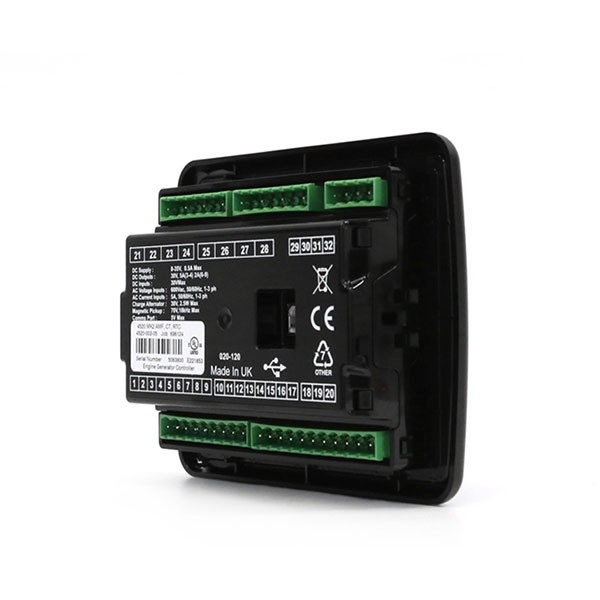

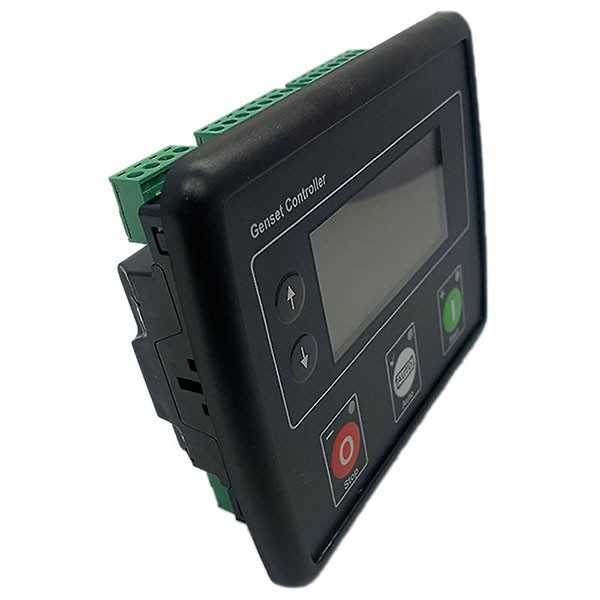

DSE 4520 MKII | Auto Mains (Utility) Failure Control Module

The DEEP SEA DSE 4520 Generator Controller and the DSE4520 Auto Mains (Utility) Failure Control Module are ideal for a wide range of single gen-set applications.

While retaining features found in higher-end controllers, such as generator and load power monitoring, the DSE45xx series offers an exceptional size-to-feature ratio in a particularly compact design.

The DSE4520MKII Generator Controller monitors engine speed, oil pressure, coolant temperature, frequency, voltage, current, power, and fuel level, providing comprehensive protection for the engine and alternator. These statuses are displayed on the largest back-lit LCD icon display in its class, with a range of warning, electrical trip, and shutdown alarms.

It supports both electronic J1939 (CAN) and non-electronic (alternator sensing) engines for diesel, gas, and petrol variants.

With numerous flexible inputs, outputs, and protections, the Deep Sea 4520 Generator Controller can be easily adapted for various applications, including lighting towers, with the added option for staged loading outputs.

The Deep Sea DSE4520 Generator Controller can be configured via USB using the DSE Configuration Suite PC Software or directly through the module's fascia.

THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.

Product Description:

OVERALL SIZE

140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)

PANEL CUTOUT SIZE

118 mm x 92 mm (4.6" x 3.6")

MAXIMUM PANEL THICKNESS

8.0 mm (0.3”)

WEIGHT

0.26kg

PRODUCT VARIANTS

4520-05 - 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT
85 mA at 12 V, 96 mA at 24 V

MAXIMUM STANDBY CURRENT
51 mA at 12 V, 47 mA at 24 V

MAXIMUM SLEEP CURRENT
35 mA at 12 V, 32 mA at 24 V

MAXIMUM DEEP SLEEP CURRENT
<10 uA at 12 V, <10 uA at 24 V
