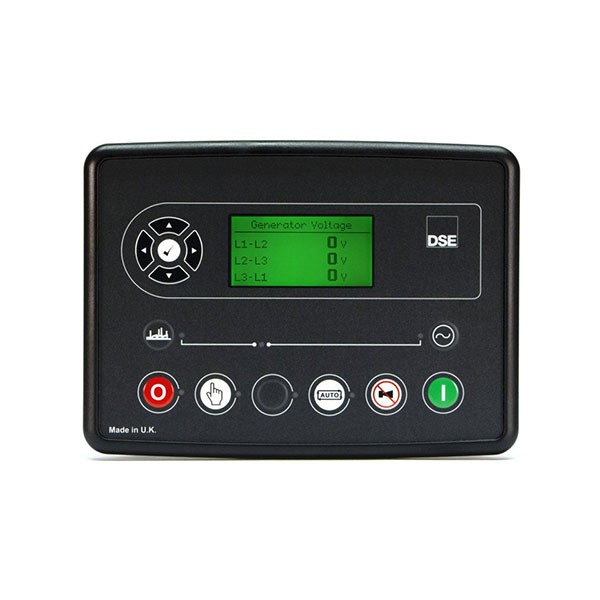

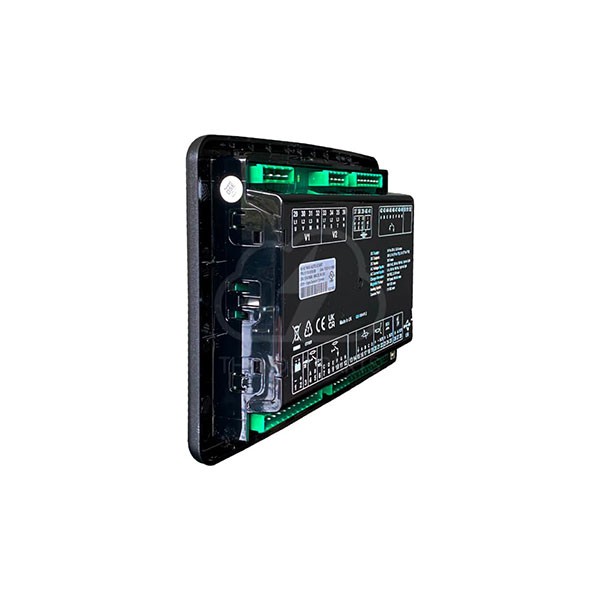

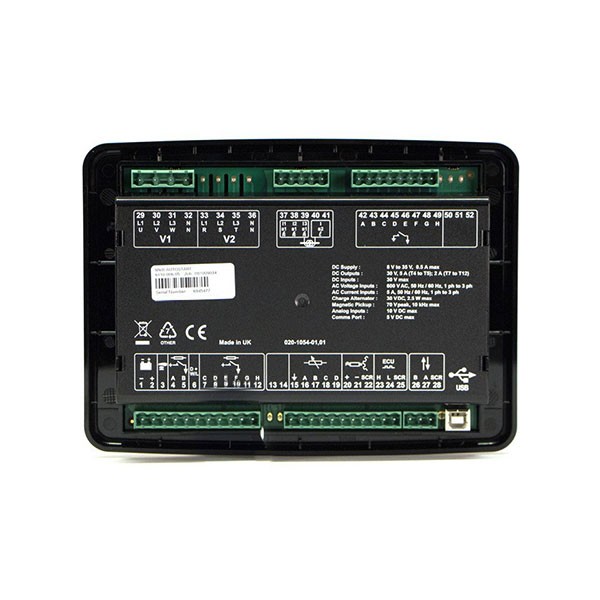

DSE 6110 MKIII | Auto Start Control Module

The DSE6110 MKIII is a versatile Auto Start Control Module designed to support a broad range of single diesel or gas genset applications.

With the ability to monitor a wide array of engine parameters, this module provides comprehensive information, including warnings, shutdown alerts, and engine status, all conveniently displayed on a back-lit LCD screen and illuminated LEDs. It also offers connectivity options through USB and dedicated DSENet® terminals for system expansion.

The module is compatible with both electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and offers a wealth of flexible inputs, outputs, and robust engine protections, making it easily adaptable to meet the diverse needs of various industries.

OVERALL SIZE

216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)

PANEL CUTOUT SIZE

184 mm x 137 mm (7.2” x 5.3”)

MAXIMUM PANEL THICKNESS

8.0 mm (0.3”)

WEIGHT

0.5kg

PRODUCT VARIANTS

6110-05 - 6110 MKIII Auto Start Control Module

PRODUCT SPECIFICATION:

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for up to 1 minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

260 mA at 12 V, 150 mA at 24 V

MAXIMUM STANDBY CURRENT

145 mA at 12 V, 85 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

GENERATOR & MAINS (UTILITY)

VOLTAGE  RANGE

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICKUP

VOLTAGE  RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)

INPUTS

DIGITAL INPUTS A to H

Negative switching

ANALOGUE INPUTS A & D

Configurable as:

Negative switching digital input

0 V to 10 V sensor

4 mA to 20 mA sensor

Resistive sensor

ANALOGUE INPUTS B & C

Configurable as:

Negative switching digital input

Resistive sensor

OUTPUTS

OUTPUT A & B (FUEL & START)

10 A DC at supply voltage

AUXILIARY OUTPUTS C, D, E,  F, G & H

2 A DC at supply voltage ­­

ADVANTAGES

• Illuminated, four-line LCD
• Alarm displays on LCD and LEDs
• Energy-saving mode
• 9 inputs and 8 outputs for control and monitoring signals
• Date scheduler, timer, alarms, maintenance and event log configurable
• Fuel and generator alarm
• Real-time clock for accurate logging
• Diagnostic page and test run function
• Extensive power monitoring
• Single or three-phase mains monitoring
• Load switching and automatic load transfer
• Overload protection and unbalanced load protection
• Fault-voltage protection
• USB port for PC programming
• Programmable status screens
• Extended PCL programming
• RS232 interface for GSM module or 3G gateway
• RS485 interface with Modbus RTU protocol for building control
• Automatic mode with permanent mains monitoring, constant start-up readiness and fully automatic switching between mains - generator - mains
• Scope of control and monitoring depends on the generator, special version possible if necessary.
