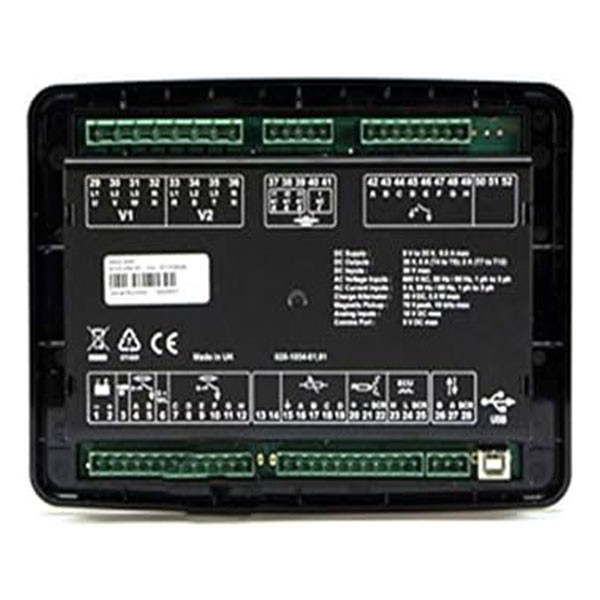

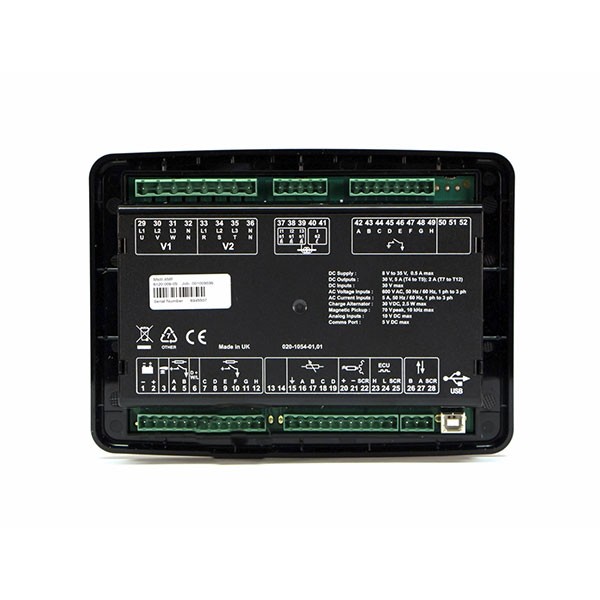

DSE 6120 MKIII | Auto Mains (Utility) Failure Control Module

The DSE6120 MKIII is a versatile Auto Mains (Utility) Failure Control Module designed to support a wide range of single diesel or gas genset applications.

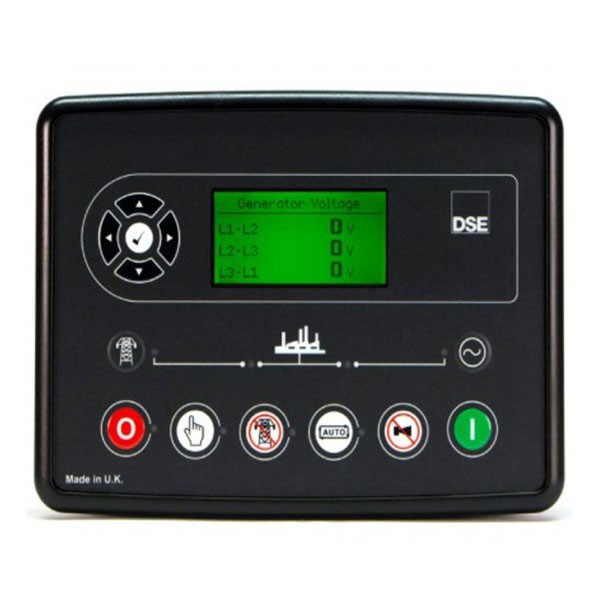

With the ability to monitor a wide array of engine parameters, this module provides comprehensive information, including warnings, shutdown alerts, and engine status, all conveniently displayed on the back-lit LCD screen and illuminated LEDs. It offers compatibility with both electronic (CAN) and non-electronic (magnetic pick-up/alternator sensing) engines and provides a wealth of flexible inputs, outputs, and robust engine protections to meet industry demands.

Notable features include enhanced event and performance monitoring, remote communications, PLC functionality, and easy configuration through the DSE Configuration Suite PC software, with the added option of selected front panel editing.

OVERALL SIZE

216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)

PANEL CUTOUT SIZE

184 mm x 137 mm (7.2” x 5.3”)

MAXIMUM PANEL THICKNESS

8.0 mm (0.3”)

WEIGHT

0.5kg

PRODUCT VARIANTS

6120-05 - 6120 MKIII Auto Mains (Utility) Failure Control Module

PRODUCT SPECIFICATION:

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for up to 1 minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

260 mA at 12 V, 150 mA at 24 V

MAXIMUM STANDBY CURRENT

145 mA at 12 V, 85 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

GENERATOR & MAINS (UTILITY)

VOLTAGE  RANGE

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICKUP

VOLTAGE  RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)

INPUTS

DIGITAL INPUTS A to H

Negative switching

ANALOGUE INPUTS A & D

Configurable as:

Negative switching digital input

0 V to 10 V sensor

4 mA to 20 mA sensor

Resistive sensor

ANALOGUE INPUTS B & C

Configurable as:

Negative switching digital input

Resistive sensor

OUTPUTS

OUTPUT A & B (FUEL & START)

10 A DC at supply voltage

AUXILIARY OUTPUTS C, D, E,  F, G & H

2 A DC at supply voltage ­­
