Pressure measuring range:

0 - 10 Bar
0 - 145 PSI
0 - 1000 KPa

Maximum pressure:

30 Bar during 2 seconds

Thread:

M10 x 1 Tapered short

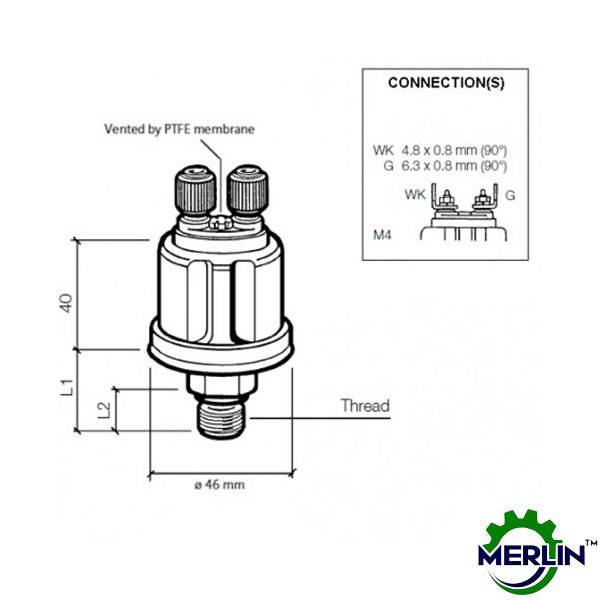

Length thread + nut (L1):

19.5 mm

Thread length (L2):

11 mm

Torque:

30 Nm

Operating temperature:

-25 °C to +100 °C

Pressure medium:

Oil - Fuel - Air

Operating voltage:

6 - 24 V DC

Resistor range:

10 - 184 Ohm

Pressure sensor signal:

Single-Pole common ground

Warning contact:

5.20 Bar ± 0.50 Bar

Warning contact switching capacity:

Maximum 5 Watt non-inductive

Warning contact features:

Closes with falling pressure

Pressure sender connector:

M4 AMP Male 6.3 x 0.8 mm 90°

Warning contact connector:

M4 AMP Male 6.3 x 0.8 mm 90°

VDO 2014 Vehicle Electronics Catalog:

Page 123 - 125

Type of connection:

H

VDO En Du Pressure senders Tables:

VDO Datasheet table 4
