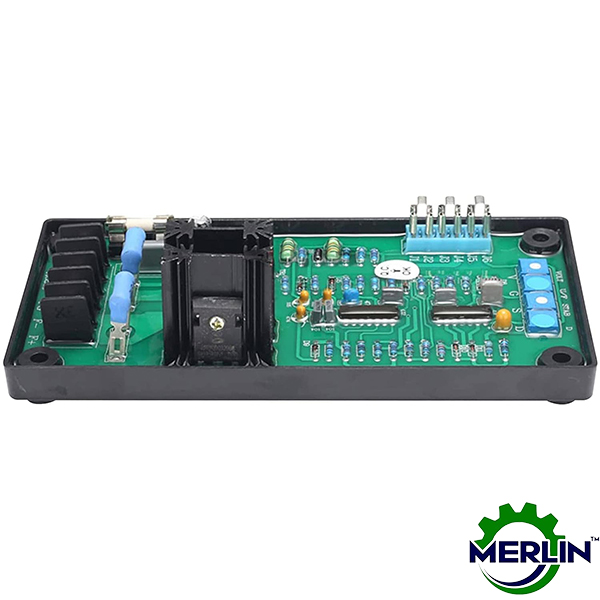

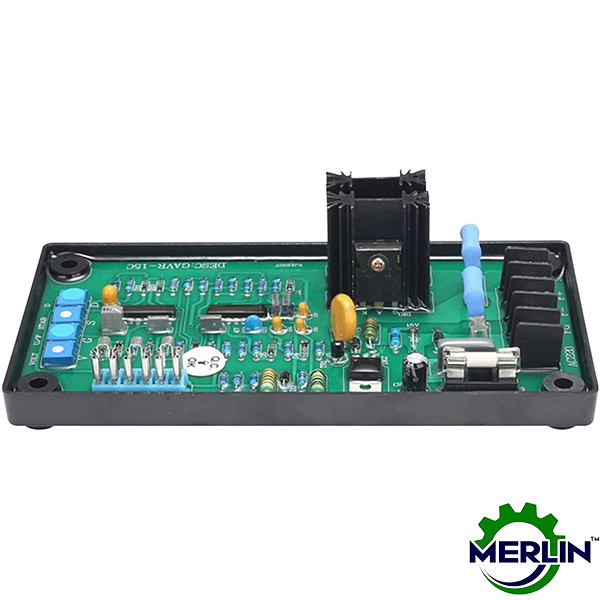

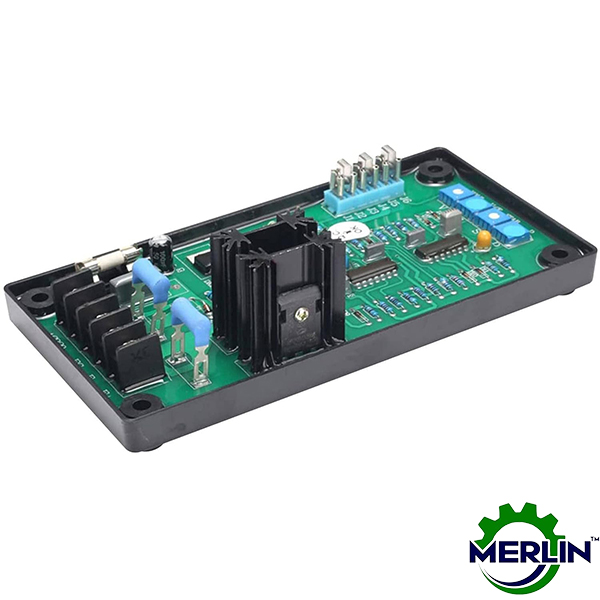

Automatic Voltage Regulator (AVR) | GAVR 15C | Brushless Generators
EMI Available
Model: GAVR 15C
Brand:
5500.00
5500.00
-
Sensinglnput Voltage:220/400V AC, I phase2wire
-
PoNNerlnput Voltage:180-24OVAC,I phase2wire
-
Voltage:Max.9OVDC CC240VAC input
-
Current:Continuous 6A
-
Volts Regulation:<+-0.5%(with 4% engine governing)
Automatic Voltage Regulator | AVR GAVR-15C | GAVR15C Compatible with Generator Genset
Product Descriptions:
GAVR-15C generator AVR is Universal 15 Amp 1/2 Wave Self Excited Dip-Switch Programmable Automatic Voltage Regulator.Specifications:
- Sensinglnput Voltage:220/400V AC, I phase2wire
- PoNNerlnput Voltage:180-24OVAC,I phase2wire
Output:
- Voltage:Max.9OVDC CC240VAC input
- Current:Continuous 6A
- Intermittent 12A for 10SEE.
- Resistance:Min.10 Q Max.100 Q
- Volts Regulation: <+-0.5%(with 4% engine governing)
- VoltageBuild-up:Residualvolts at A VR teminal>5 VAC
- External Volts Adjustment:7%with 1 K 0 1 watt trimmer
- Sotf Start Ramp Time:3sec.
- Unit Power Dissipation:Maix.8Watt
- EMI Suppression:Internal Electromagnetic Interference Filtering
- Thermal.Drift:0.05%per0C chage in A VR ambient
- Under Frequency Protection:6OHz system presets knee point at 57Hz
- (Factory Settings):50Hz system presets knee point at 47Hz
Environment:
- Vibration: 3G 100-2K Hz
- Operating Temperature:-40-65 0C
- Relative Humidity:<95%
- Storage Temperature:-40-85 C
