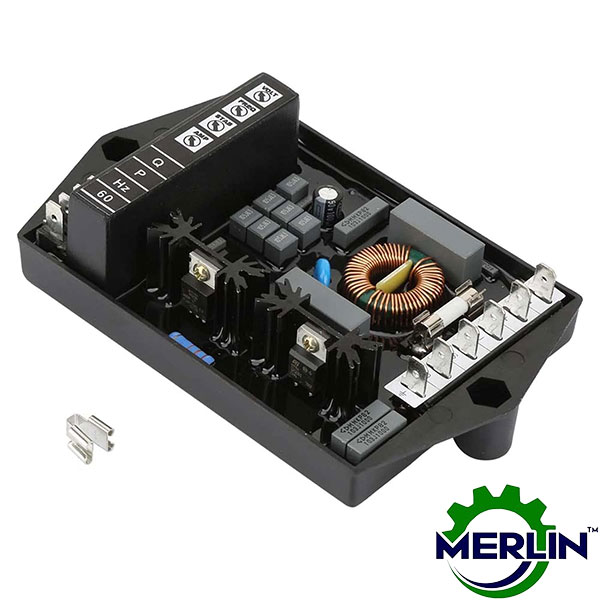

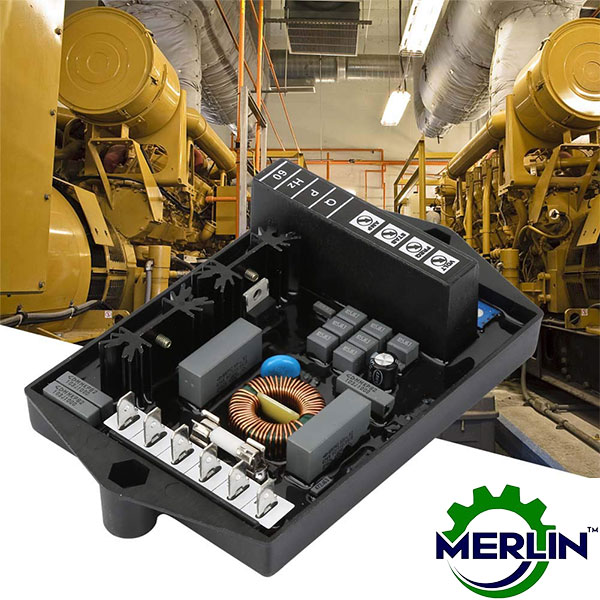

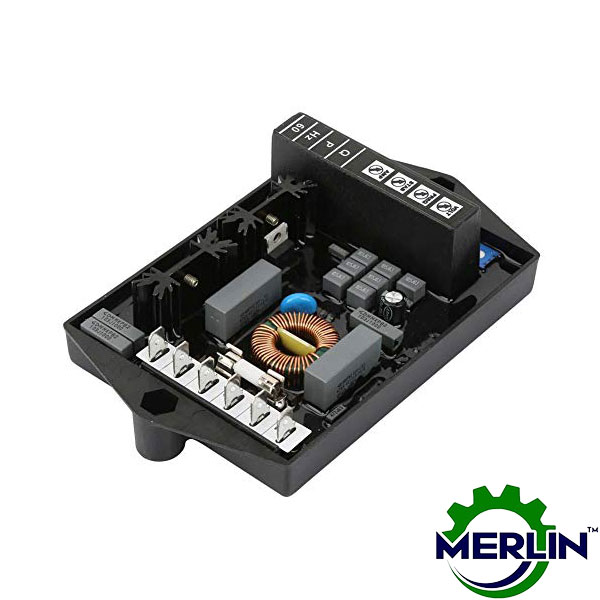

Automatic Voltage Regulator (AVR) | M16FA655A | DC 30V AVR

Product Descriptions:

The "Mark V" voltage regulator is designed for Marelli Motor Make MJB series synchronous generators, spanning 160-225 frames. Engineered with full insulation, it ensures high reliability even in challenging environments like high humidity, dust, and salt. Additionally, it withstands high vibration levels. Suitable for both single and three-phase generators, it offers versatile voltage control for optimal performance.

The "Mark V" type voltage regulator is suitable for Marelli Motor Make, MJB series, synchronous generators with a size range of 160-225 frames. The regulator is completely insulated to maintain high reliability in harsh environmental conditions (high humidity, dust, salt environment) and high vibration levels. The regulator is suitable for single and three phase generators.

• Premium Quality Capacitors Ensures Reliable Performance: This Automatic Voltage Regulator is made of high quality capacitors for high reliability
• Offers Safety Performance with Flame Retardant: This Generator Automatic Voltage Regulator Module is made of flame retardant and high temperature resistant materials, safe and durable
• Offers Stable Performance Under Any Conditions: This regulator is completely insulated to maintain high reliability in harsh environmental conditions (high humidity, dust, salt environment) and high vibration levels
• High-grade Diodes Ensures Longer Service: This Automatic Voltage Regulator Generator is made of imported diodes, which is high quality
• Ideal Tool for Single & Three Generators: The regulator is suitable for single and three phase generators.

Features:

1. High quality capacitors for high reliability.

2. Made of imported diodes, which is high quality

3. Made of flame retardant and high temperature resistant materials, safe and durable.

4. The regulator is completely insulated to maintain high reliability in harsh environmental conditions (high humidity, dust, salt environment) and high vibration levels.

5. The regulator is suitable for single and three phase generators.

Specification:

Adjustment accuracy: +/-0.5% rated steady state condition

Voltage drift: +/-0.5%, voltage change, 50°C T AMB change

Response time: 1 cycle

Working temperature: -30°C - +70 C

Exciter field resistance: 8Ω (minimum) - 20Ω (maximum)

Input/output data:

Power supply voltage: 170-270V

Power supply: 350VA (maximum)

Power consumption: 15W (maximum)

Voltage Sensing: 170-270V

Output voltage (DC): 30V

Output current (DC): 5A (maximum, continuous)

Output current (dc): 8A (maximum forced 1 minute)
