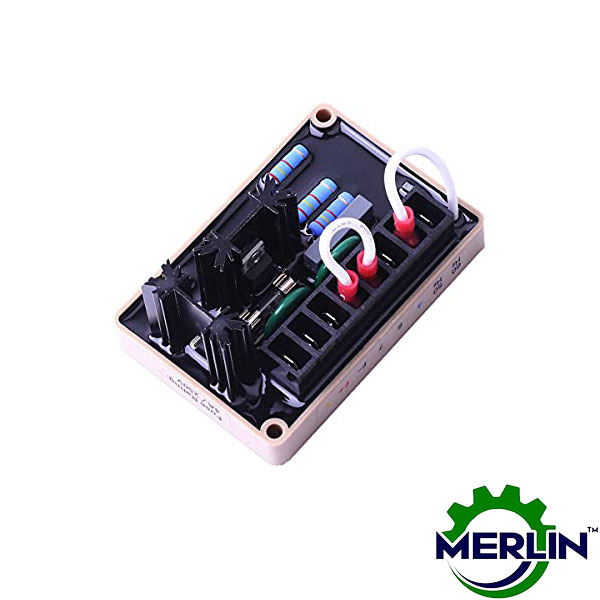

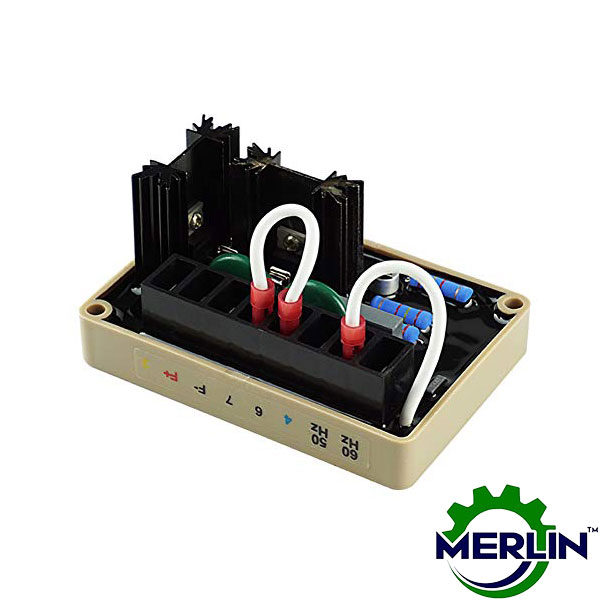

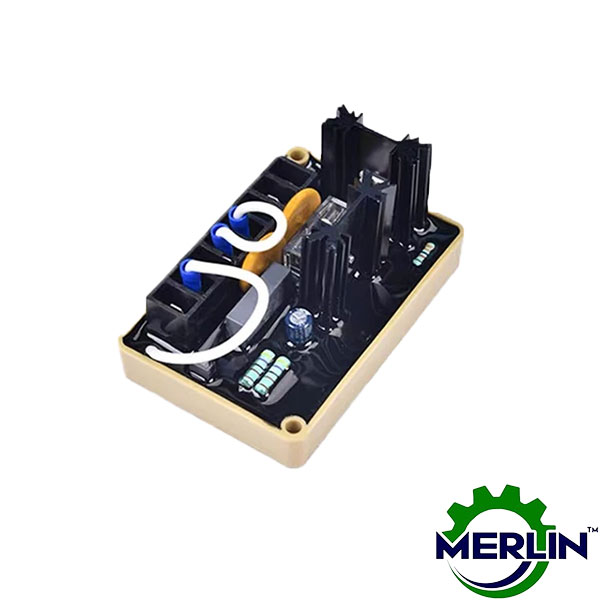

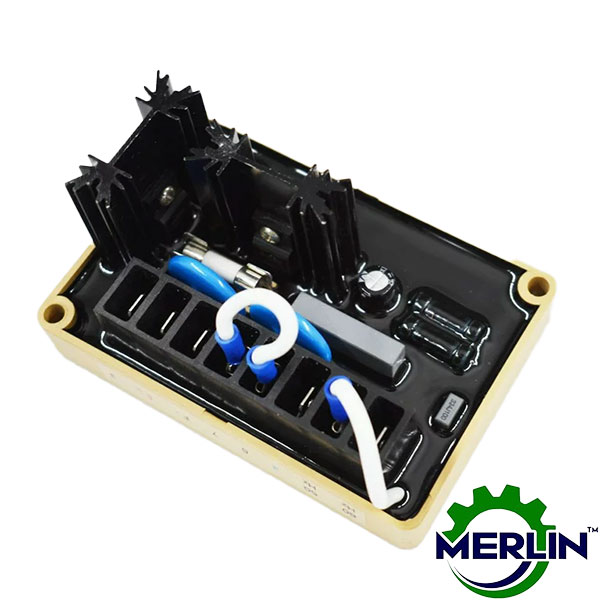

Automatic Voltage Regulator Control Module for Generator Genset | AVR SE350

EMI Available

Model: SE350

Brand:

6500.00 6500.00

Power Input:

190 - 240 Vac
Burden:

500 VA
Output Power - Continuous:

73 Vdc at 3.5 Adc (255w)
Output Power - Forcing:

105 Vdc at 5 Adc (525w)
Regulation:

1.0%
Remote Volt. adjustment Range:

±10% with 2000 ohm rheostat. ±5% with 1000 ohm rheostat

Automatic Voltage Regulator Control Module for Generator Genset | AVR SE350

Sensing & Power Input: 190 - 240 Vac Burden: 500 VA
Output Power - Continuous: 73 Vdc at 3.5 Adc (255w) | Output Power - Forcing (240 Vac Input Power): 105 Vdc at 5 Adc (525w) | Regulation: 1.0%
Remote Voltage adjustment Range: ±10% with 2000 ohm rheostat | ±5% with 1000 ohm rheostat
Frequency Compensation: Adjustable Roll off frequency: 54 - 64 Hz for 60 Hz | 45 - 51 Hz for 50 Hz | Operation: Weight 6.5 oz
Operating Temperature: -40°C to + 60°C | Storage Temperature: -60°C to + 85°C | Power Dissipation: 8 watts maximum

Sensing & Power Input:	190 - 240 Vac \| Burden: 500 VA
Output Power - Continuous:	73 Vdc at 3.5 Adc (255w)
Output Power - Forcing:	105 Vdc at 5 Adc (525w)
Regulation:	1.0%
Remote Volt. adjustment Range:	±10% with 2000 ohm rheostat. ±5% with 1000 ohm rheostat
Frequency Compensation:	Adjustable Roll off frequency: 54 - 64 Hz for 60 Hz. 45 - 51 Hz for 50 Hz
Operation:	Weight 6.5 oz
Operating Temperature:	-40°C to + 60°C
Storage Temperature:	-60°C to + 85°C
Power Dissipation:	8 watts maximum
