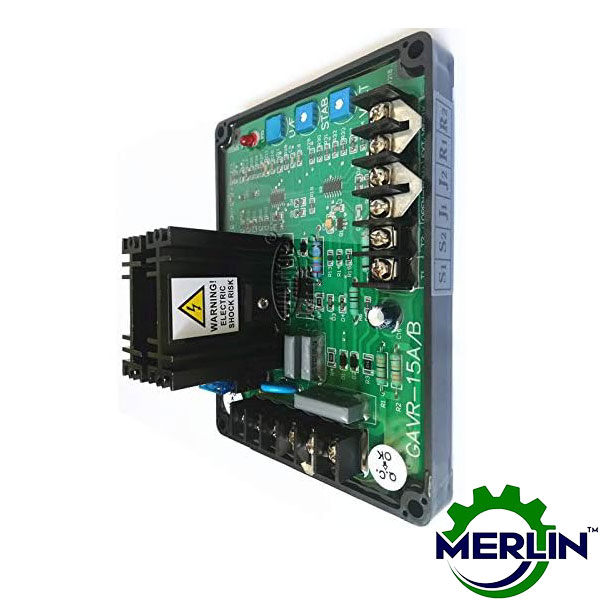

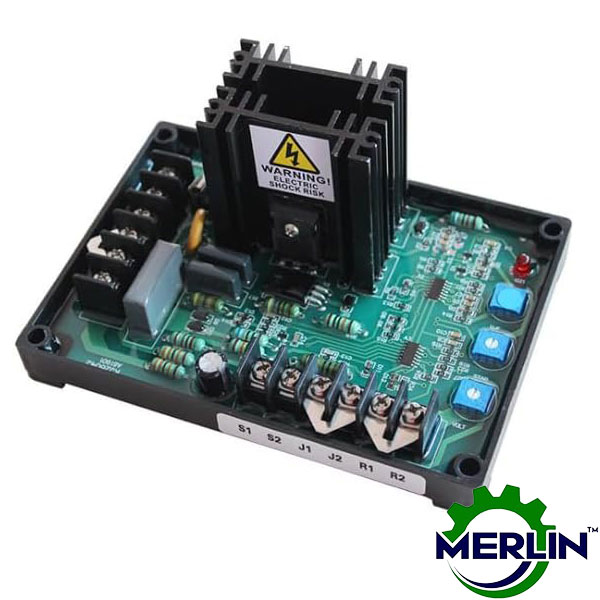

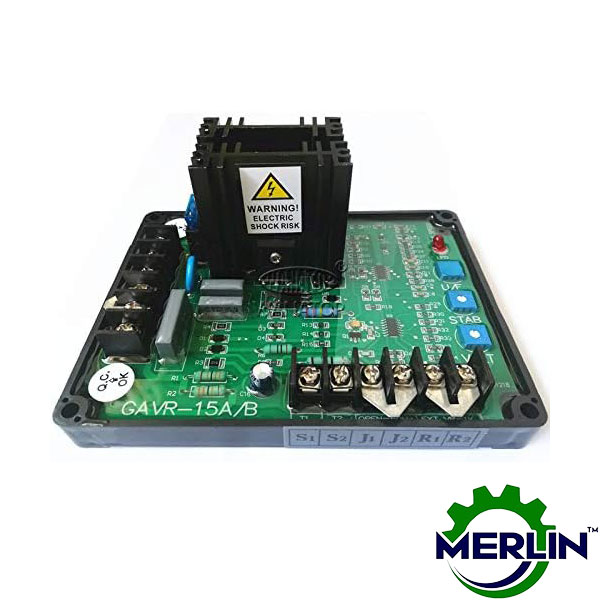

Automatic Voltage Regulator for Diesel Generator | GAVR 15A
EMI Available
Model: GAVR 15A
Brand:
4500.00
4500.00
-
Sensing Input Voltage:220/400VAC,1phase 2wire
-
Power Input Voltage:180~240VAC, 1phase 2wire
-
Item Weight:1.09 pounds
Automatic Voltage Regulator for Diesel Generator | GAVR 15A!
Specifications for AVR-15A
- Sensing lnput of AVR-15A AVR: Voltage 2201-l00V AC.I
phase2wire
- Power Input of AVR GAVR-15A : Voltage 180-240VAC.I
phase2wire
- Voltage Build-up: Residual volts at A VR terminal
>5VAC
- External Volts Adjustment: ±7% with 1K 1watt
trimmer
- Output Voltage Max.90VDC@240VACinput
- Resistance Min.IOQ Max.100Q
- Current Continuous 6A
- Intermittent 12A for IOSEE.
- Soft Start Ramp Time 3sec.
- Unit Power Dissipation: Max.8Wall
- EMI Suppression: Internal Electromagnetic Interference
Filtering
- Thermal. Drift: 0.05%per change in AVR ambient
- Under Frequency Protection 60Hz system presets knee
point at 57Hz
- (Factory Settings) 50Hz system presets knee point at 47Hz
- Volt Regulation < 0.5%(with 4%engine governing)
