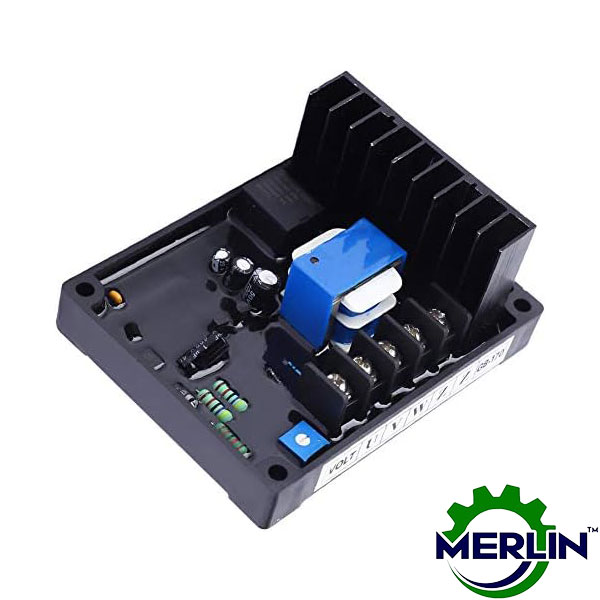

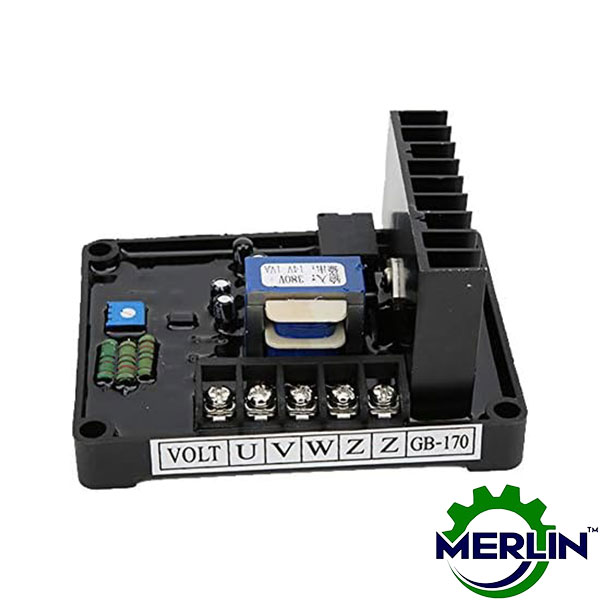

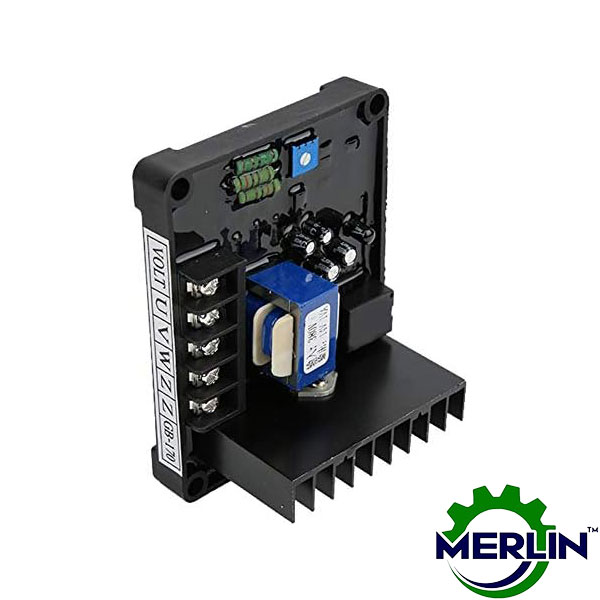

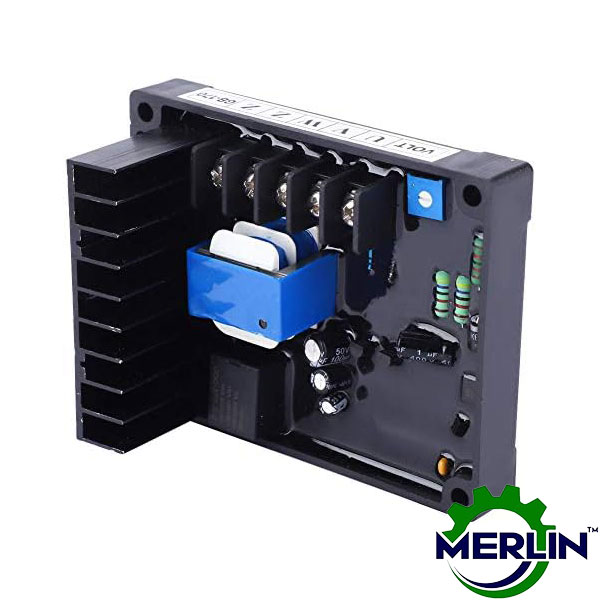

AVR Automatic Voltage Regulator for Generator | GB170 | Voltage Control Board!

Product Description:

The AC Brush Generator AVR Circuit Diagram 3 Phase GB-170 is a half-wave phase controlled Thyristor type Automatic Voltage Regulator integral to brushless generator excitation systems. Alongside regulating generator voltage, its circuitry includes under speed and sensing loss protection for safe, reliable control. Proficient semiconductors in the power circuitry ensure positive voltage build-up from residual levels. Linked with main stator windings and exciter field windings, it offers closed-loop control of output voltage with load regulations of +/- 1.5%.

• GB-170 AVR(Automatic voltage regulator) is applicable to harmonic excitation, 3 phase brush generator

• Regulator is suitable for three-phase 220/380/400VAC voltage generator, High precision, long service life

• Made with flame retardant and heat resisting material, stable and reliable to use

• We are very confident about the quality of our products, and we also look forward to your confidence in choosing our products
