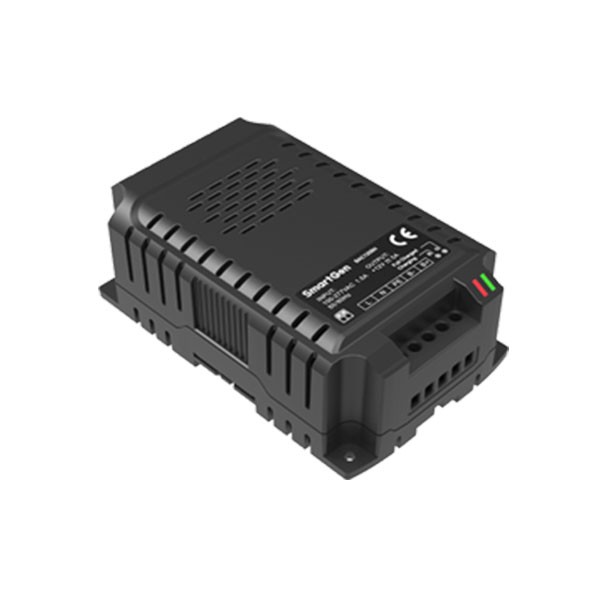

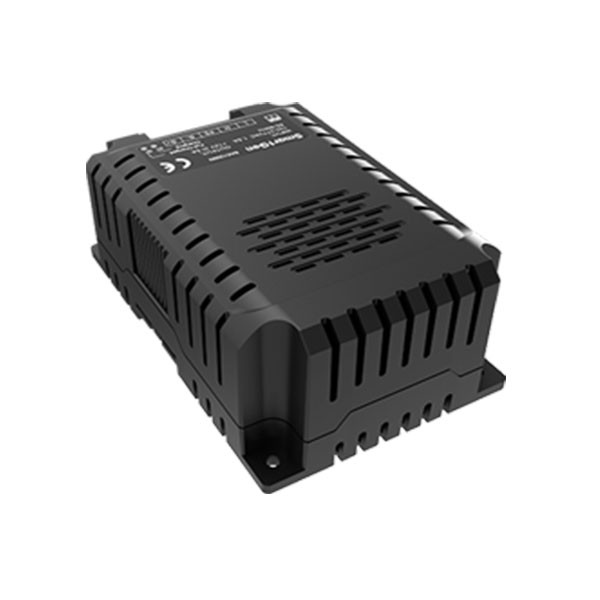

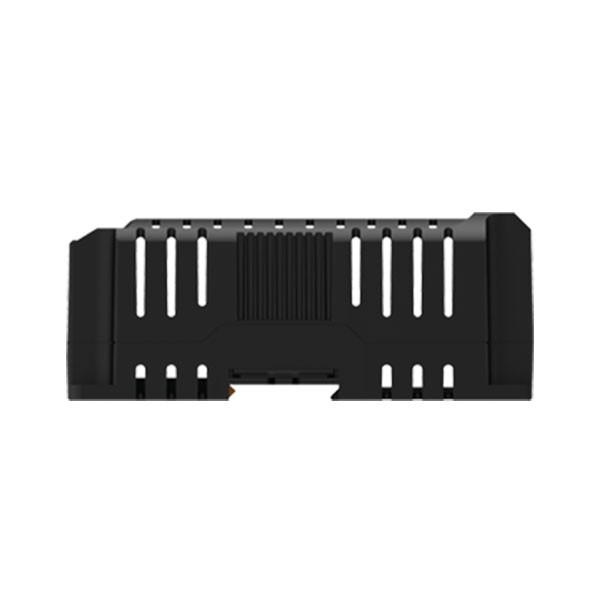

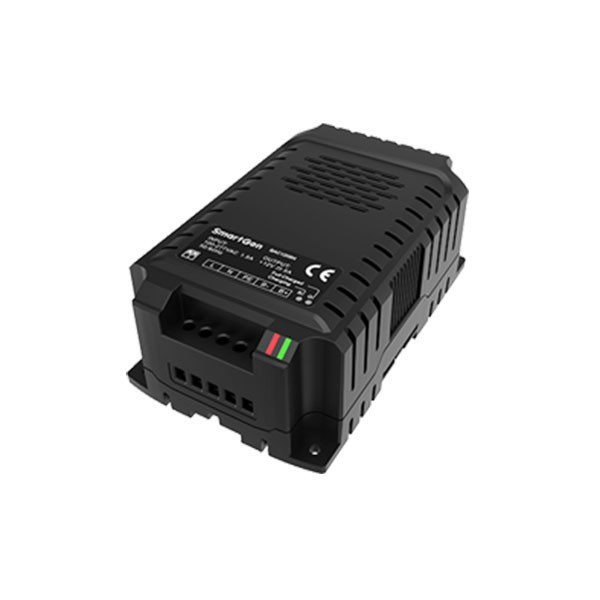

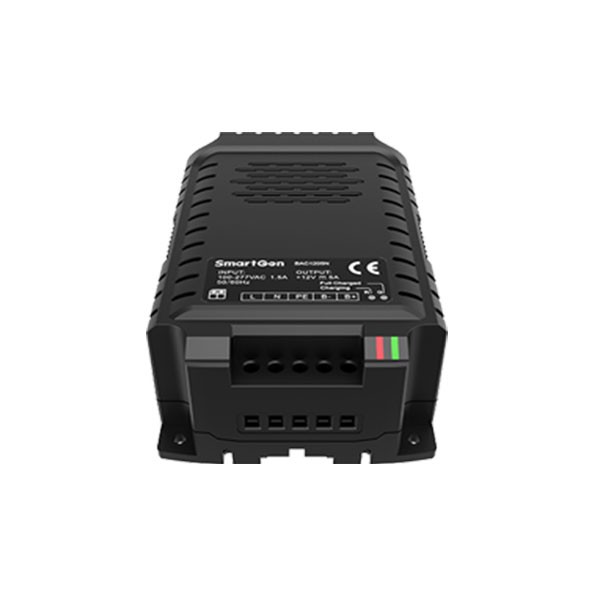

BAC1205N | Floating Charger | Short Circuit and Reverse Connection Protection

EMI Available

Model: BAC1205N

Brand: SMARTGEN(ZHENGZHOU) TECHNOLOGY CO., LTD.

8500.00 8500.00

BAC1205N | Floating Charger | Short Circuit and Reverse Connection Protection!

Technical Parameters:

Battery Voltage	12V
Max. Charging Current	5A
Rated Input Voltage	AC(100~277)V
Max. Input Voltage Range	AC(90~305)V
AC Input Frequency	(50/60)Hz
No-Load Power Consumption	<5W
Max. Input Current	1.5A
Operating Mode	Two segments
Maximum Efficiency	84%
Operating Temp.	(-30~+55)℃
Storage Temp.	(-40~+85)℃
Net Weight(kg)	0.45
Case Dimensions(mm)	1499561

Product Overview:

The BAC1205N/2403N battery charger, featuring the latest switch power components, is expertly crafted for charging lead-acid starting batteries, tailored to their unique properties. Ideal for long-term supplementary charging (float charge), this charger boasts the following characteristics:

Switching Power Structure: Designed for efficiency with a wide AC voltage input range, compact size, lightweight build, and high efficiency.
Two-Stage Charging Method: Utilizes a dual-phase approach, starting with constant current and transitioning to constant voltage. This method, carefully considering the lead-acid battery's charging properties, prevents overcharging and maximizes battery lifespan.
Short Circuit and Reverse Connection Protection: Ensures safety by offering protection against short circuits and reverse connections.
Compatibility: Suitable for charging 12V or 24V batteries, with corresponding models BAC1205N or BAC2403N.
LED Display: Provides clear charging and full-charged indications for easy monitoring.
Easy Installation: Offers flexibility with guide-rail way and screw mounting installations.
Built-in Terminals and Flame Retardant Shell: Ensures durability and safety with integrated terminals and a flame-retardant plastic shell.

Experience reliable and efficient charging with the BAC1205N/2403N, tailored for optimal lead-acid battery maintenance.
