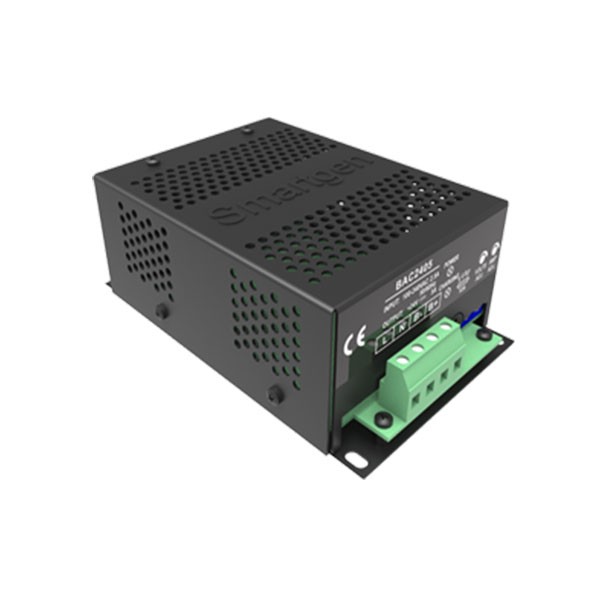

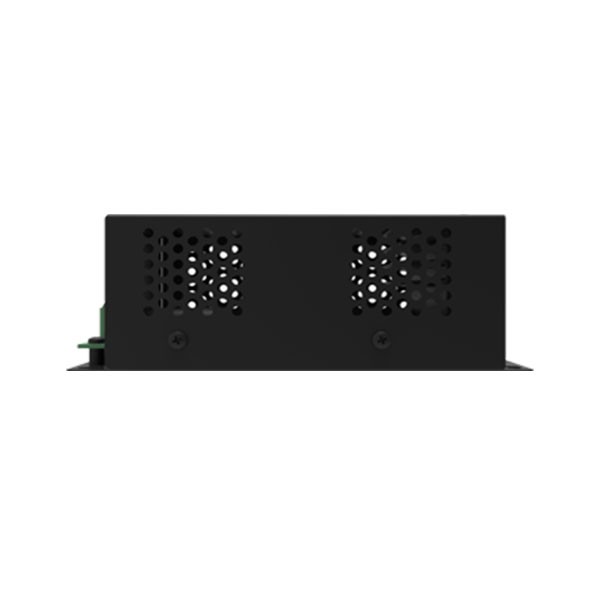

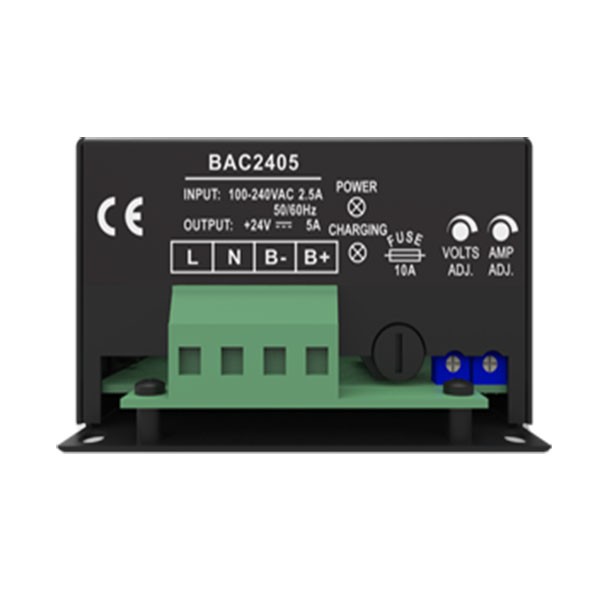

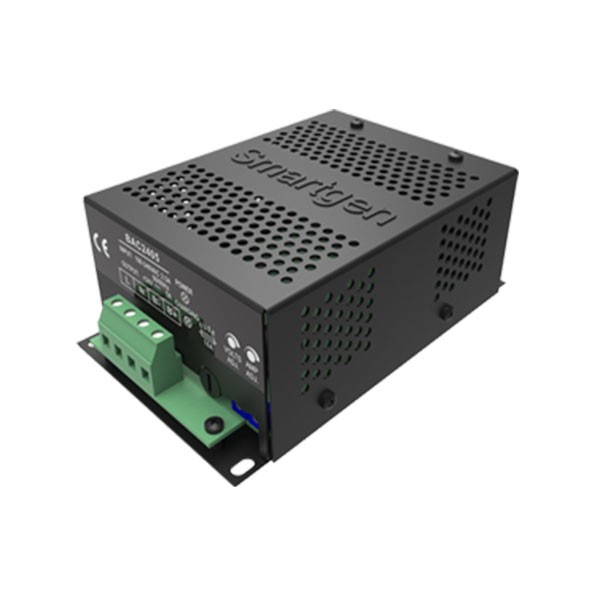

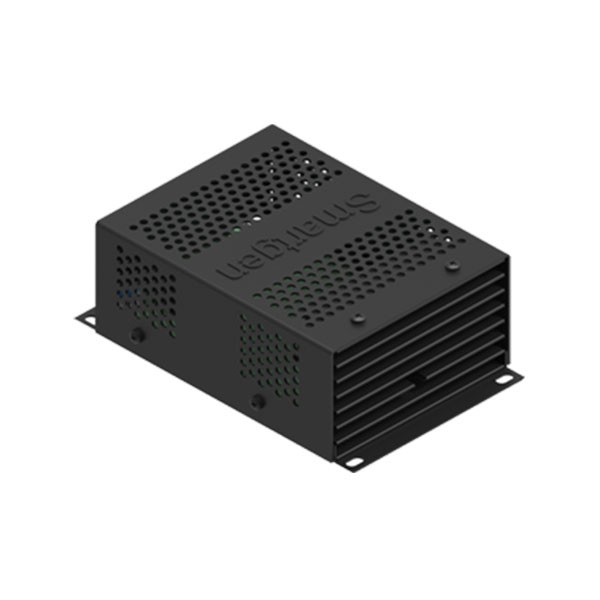

BAC2405 | Floating Charger | Short Circuit and Reversal Protection!
Technical Parameters:
|
Battery Voltage |
24V |
|
Max. Charging Current |
5A |
|
Rated Input Voltage |
AC(100~200)V |
|
Max. Input Voltage Range |
AC(90~280)V |
|
AC Input Frequency |
(50/60)Hz |
|
No-Load Power Consumption |
<3W |
|
Max. Input Current |
2.5A |
|
Operating Mode |
Two segments |
|
Maximum Efficiency |
87% |
|
Operating Temp. |
(-30~+55)℃ |
|
Storage Temp. |
(-40~+85)℃ |
|
Case Dimensions(mm) |
143*92*52 |
Product Overview:
The Mebay intelligent floating generator charger is designed to automatically charge batteries using power generated by a PDB. It supports 12/24V power voltage and features built-in circuitry that controls the charging process to prevent overcharging and optimize battery health. This charger is suitable for use in generators, hospitals, and backup power systems, ensuring continuous and efficient battery charging during generator operation.
- Switch
Power Supply Structure: Compact, lightweight, and efficient with a
wide input voltage range.
- Automatic
Two-Stage Charging: Implements a dual-phase charging process (constant
current followed by constant voltage) based on battery characteristics,
preventing overcharging and extending battery life.
- Built-in
Current Protective Circuit: Ensures short-circuit and reverse
connection protection for enhanced safety.
- Adjustable
Voltage and Current: On-the-spot adjustments via a potentiometer for
precise control.
- Suitable
for 24V Batteries: Specifically designed for 24V storage batteries
with a rated current of 5A.
- LED
Display: Provides clear Power and Charging indications for easy
monitoring.
Experience efficient, adjustable, and secure charging with the BAC2405, ensuring prolonged battery life and reliable performance.
