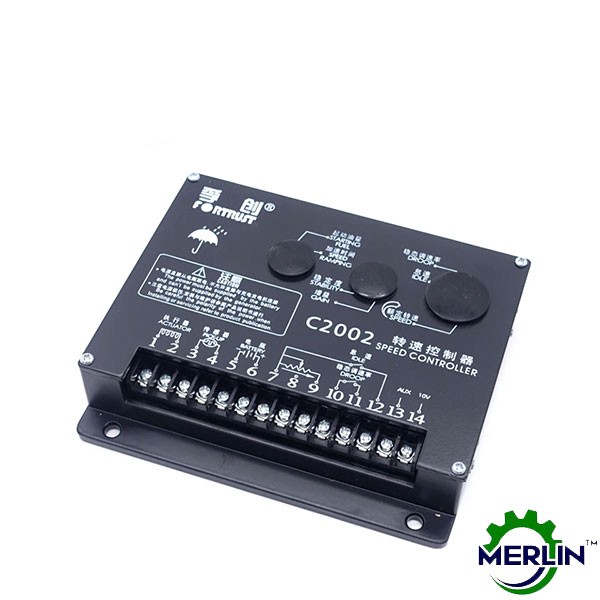

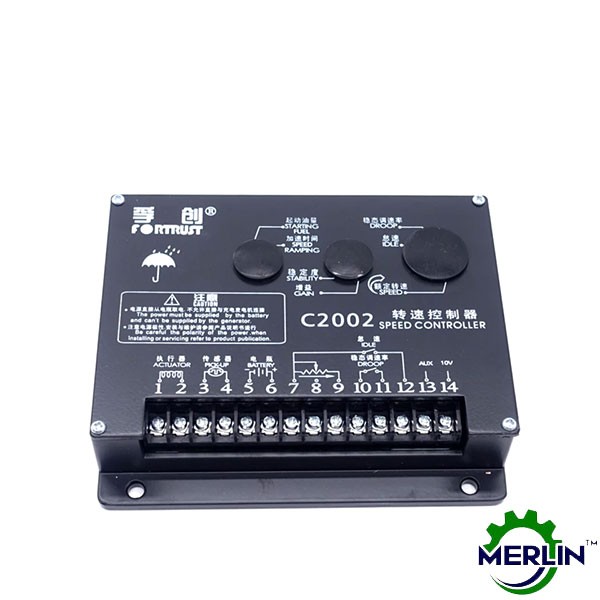

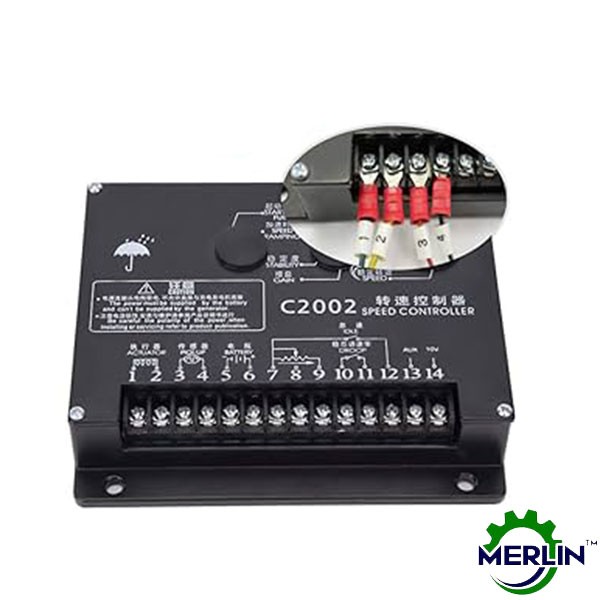

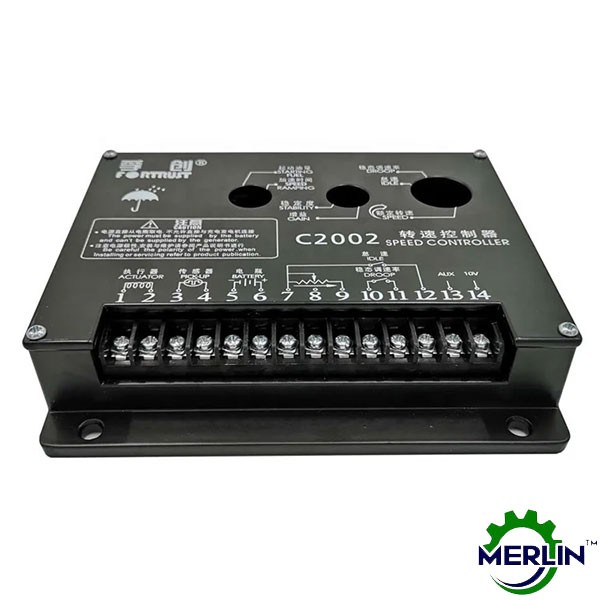

C2002 Generator Speed Controller

12-15 Days Quick Delivery
Cash on Delivery Facility
Online Payment Options
No Cost 12 Months EMI
Sales & Parts Warranty
100% Genuine Products
24/7 Customer Support

EMI Available

Model: C2002

Brand:

13000.00 13000.00

C2002 Generator Speed Controller in Bangladesh

Advantage:

FAST AND ACCURATE RESPONSE
PREVENT REVERSE VOLTAGE
FULL CLOSED-LOOP CONTROL
EASY TO INSTALL & PRE-ADJUST
OPERATING FREQUENCY OF 3800HZ

Product Specification

Model Number	C2002
Current	STD
Input Resistance	STD
Brand	Delcot
Features	STD
Minimum Order Quantity	1 Number

Product Description

Place of Origin: Chongqing, China (Mainland)
Model Number: C2002
Model nunber:C2002
Product name: Speed Controller C2002
Material: iron- boxRPM
Stability: <±0.25%
Test temperature: 75 degree
Reliability Testing: 100% Functionally
Purpose: Brushless generator
Weight:0.658
Reliability vibration: 1G at 20 to 100 Hz
Working humidity range: maximum 95%

Environment:

Operating temperature range: - 40 ℃ ~ 85 ℃
Working humidity range: 95% Max
Temperature: - 55 ℃ ~ 92 ℃
Vibration: 20-100hz 500mm/Sec.

Input power:

Power supply voltage: 12V and 24V DC battery system
Ground polarity: negative
Power consumption: 40mA
Actuator continuous current: Minimum 1A; Maximum 4.5A
Speed sensor : 2~120V RMS
