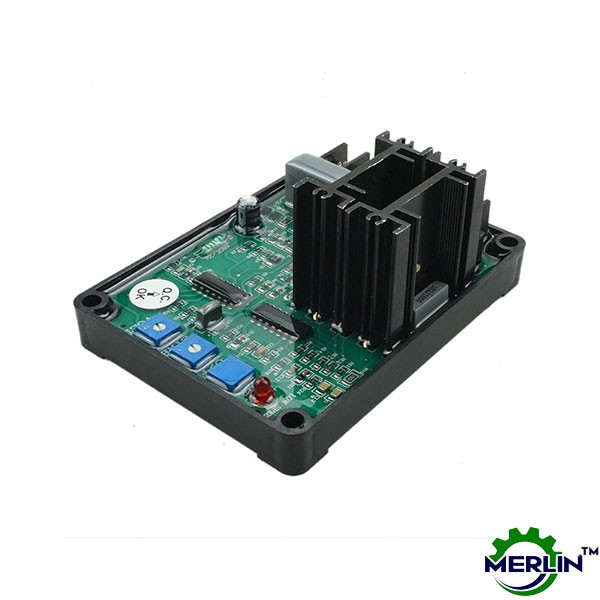

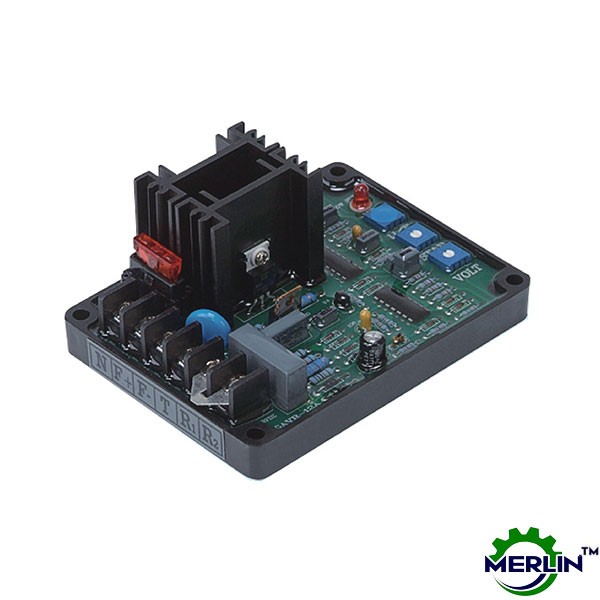

Common GAVR 12A | Common AVR for Brushless Generator

Basic Info.

Model NO.	GAVR-12A
Usage	Regulating Voltage
Generator Type	Diesel Generator
Conditions of Use	Brushless Generator
Output Type	AC Three Phase
Transport Package	Polybag + Carton Box



Product Description

TECHNICAL DATA:

Voltage Set-up:The voltage set up when the remnant magnetism greater than 4V 25Hz

Input power Supply:AC 160~260V 50/60Hz

Maximum Output: DC 5A 95V(when the voltage reaches AC 240V)

Frequency Compensation:Built-in low speed protective circuit.

INPUT:

Voltage Jumper selectable
95-132V ac or 190-264 Hz nominal
Frequency 50-60 Hz nominal

OUTPUT:

Voltage max 90V dc at 207V ac input
Current continuous 2A dc
Intermittent 5A for 10 secs
Resistance 20 ohms minimum
REGULATION: +/-1%
This is one kinds of currency AVRs for brushless generators in the world.

TECHNICAL DATA:

INPUT:
Voltage :160-260V AC
Frequency :50-60 Hz nominal
