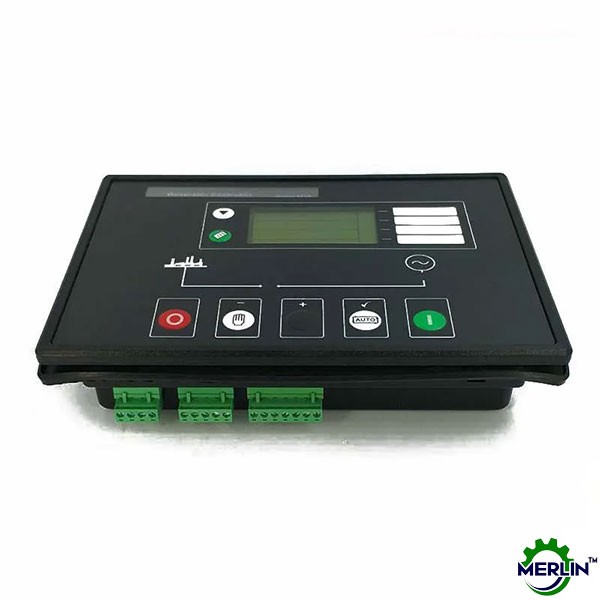

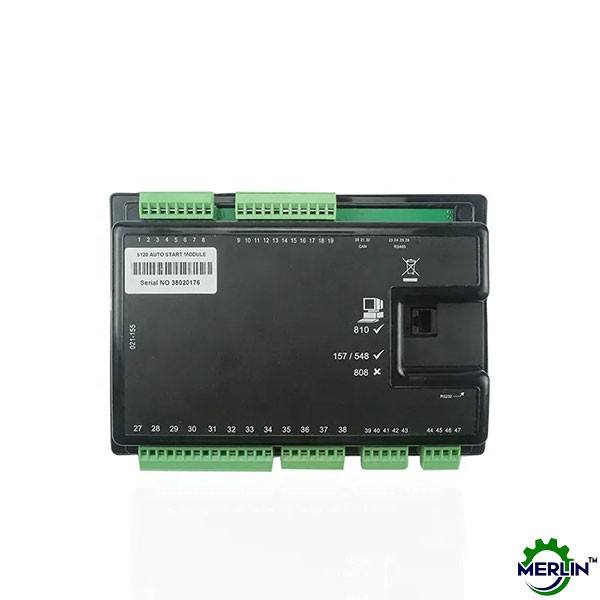

DSE5120 Auto Mains (Utility) Failure Control Module

The module 5120 has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.

Protection:
Lubricants to protect lower
Charger fail rechargeable
Emergency generating units down
Generating units of public alarm
Over-voltage generators, pressure for a long time, and overload protection
High cooling water temperature protection
Engine overspeed protection
Failure of the engine shutdown
Start the engine failure

Display data:
Speed of Generator
Battery Voltage
Oil Pressure of Engine
Water Temperature of Engine
Generating unit output frequency of exchange
Operating Time of Generator Set
Load-phase AC current
Exchange phase Voltage

Alarm instructions:
Stability in the light of public alarm, indicating the red;
Public warning lights flashing red display, said there is fault shutdown.
Allocation method: controller through the front panel configuration parameters.
The installation of opening size: 220*160mm

Main features:
Micro-computer control;
Automatically activated, the shutdown;
Real-time display unit operating status and parameters;
Visualization of the state of graphics and logo;
Quick information display unit;
LED and LCD alarm instructions;
Programmable relay output for a variety of models
