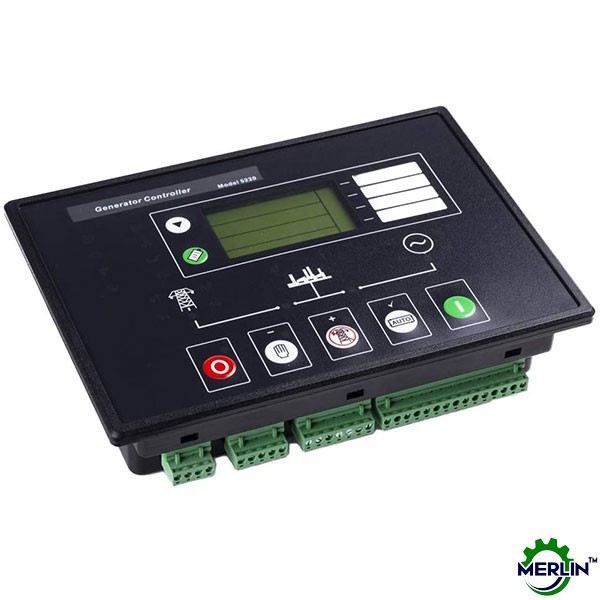

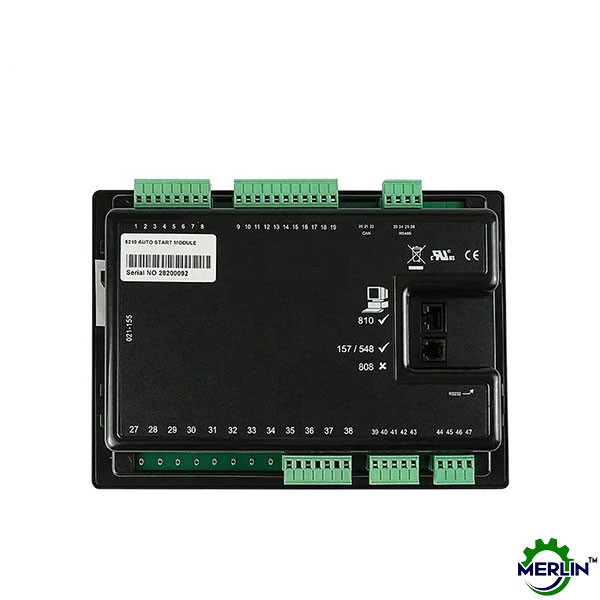

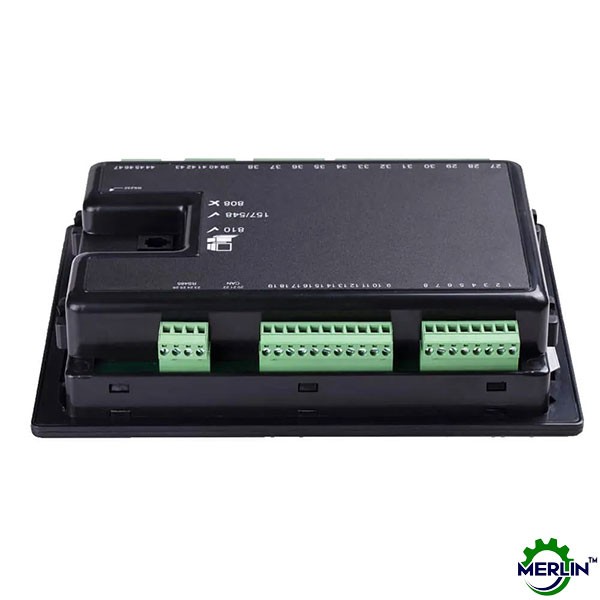

DSE5220 Auto (Mains) Utility Failure Control Module

The DSE5220, an Automatic Mains Failure Control Module, is specifically designed to manage automatic start and stop functions for diesel and gas generating sets equipped with non-electronic engines. This module excels in engine monitoring and protection, detecting under speed, over speed, charge failure, emergency stops, low oil pressure, high engine temperature, start or stop failures, voltage fluctuations, current overload, frequency variations, low/high DC battery levels, low fuel alerts, and loss of speed sensing signals. Fault conditions are clearly displayed on the LCD and LED indicators for easy monitoring.

ENVIRONMENTAL TESTING STANDARDS

ELECTRO-MAGNETIC  COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for the Industrial Environment.
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment.

ELECTRICAL SAFETY
BS EN 60950
Safety of Information Technology Equipment, including Electrical Business Equipment.

TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30°C.
BS EN 60068-2-2
Bb/Be Dry Heat +70°C.

VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three major axes.
5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn.

HUMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55° C @ 95% RH 48 Hours.
BS EN 60068-2-78
Cab Damp Heat Static 40° C @ 93% RH 48 Hours.

SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes 15 gn in 11 ms.

DEGREES OF PROTECTION PROVIDED BY ENCLOSURES
BS EN 60529
IP65 - Front of module when installed into the control panel with the optional sealing gasket.
