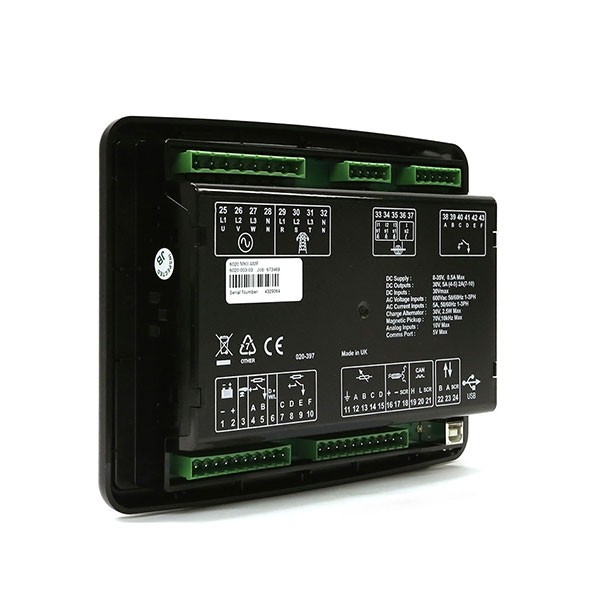

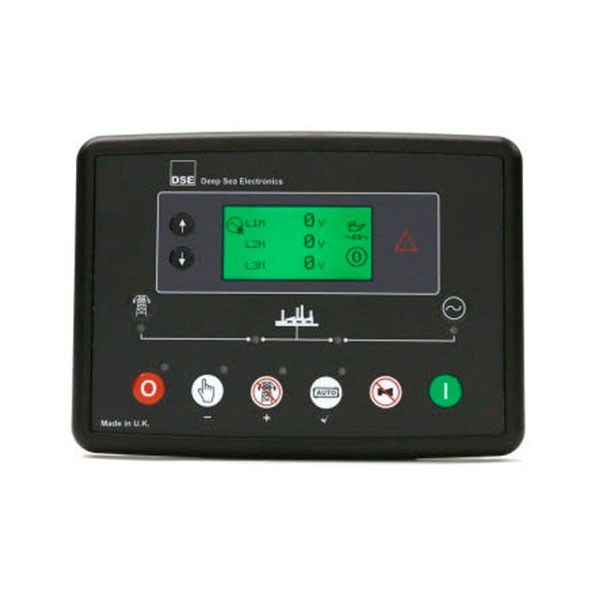

DSE 6020 MKII | Auto Mains (Utility) Control Module

The DSE 6020 MKII is a Control Module designed for Auto Mains (Utility) Failure, offering an extensive array of operational and monitoring capabilities for both single diesel and gas gen-sets.

Product Description:

OVERALL SIZE

216 mm x 158 mm x 43 mm (8.5” x 6.2” x 1.5”)

PANEL CUTOUT SIZE

184 mm x 137 mm (7.2" x 5.3")

MAXIMUM PANEL THICKNESS

8.0 mm (0.3”)

WEIGHT

0.48kg

PRODUCT VARIANTS

6020-03 - MKII Auto Mains (Utility) Failure Control Module

6020-04 - MKII Auto Mains (Utility) Failure Control Module (Htr)

SPECIFICATION

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

CRANKING DROPOUTS

Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

100 mA at 12 V, 105 mA at 24 V

MAXIMUM STANDBY CURRENT

60 mA at 12 V, 55 mA at 24 V

MAXIMUM SLEEP CURRENT

40 mA at 12 V, 35 mA at 24 V

GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

26 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

INPUTS

DIGITAL INPUTS A to F

Negative switching

ANALOGUE INPUTS A to C

Configurable as:

Negative switching digital input

0 Ω to 480 Ω

ANALOGUE INPUT D

Configurable as:

Negative switching digital input

0 V to 10 V

4 mA to 20 mA

0 Ω to 480 Ω

OUTPUTS

OUTPUT A (FUEL)

10 A short term, 5 A continuous,

at supply voltage

OUTPUT B (START)

10 A short term, 5 A continuous,

at supply voltage

AUXILIARY OUTPUTS C, D, E & F

2 A DC at supply voltage ­­

CONNECTION DIAGRAM
