Model: DSE720

Brand: DEEP SEA ELECTRONICS LIMITED

9000.00 9000.00

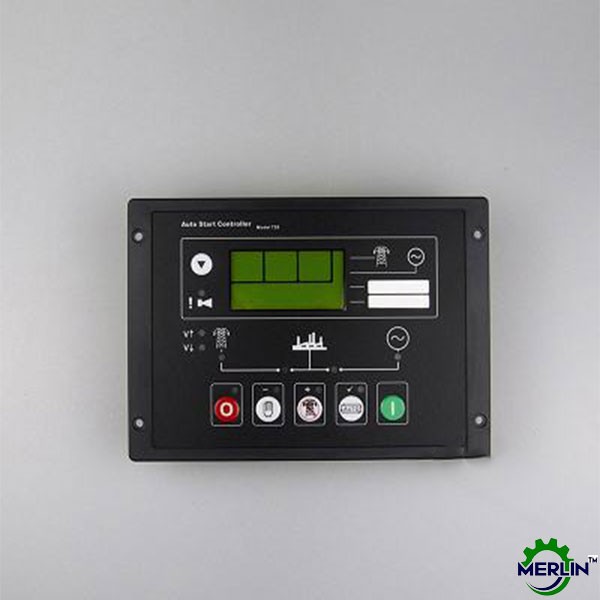

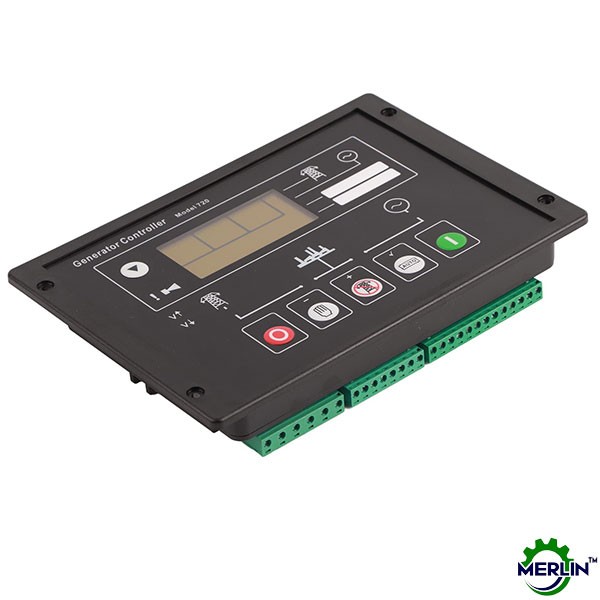

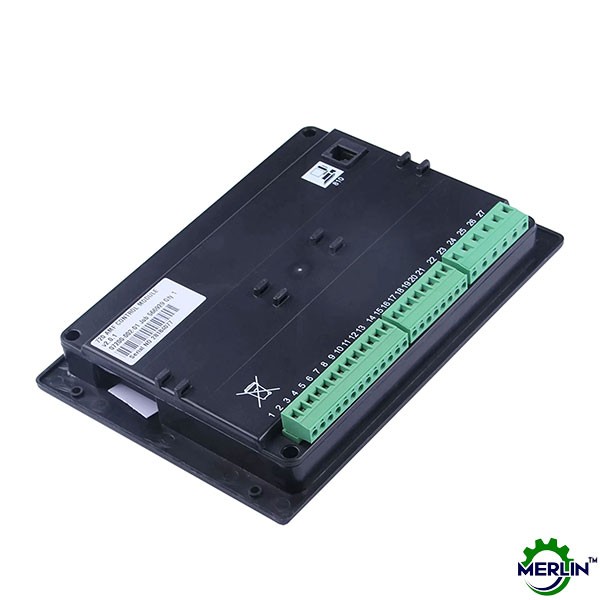

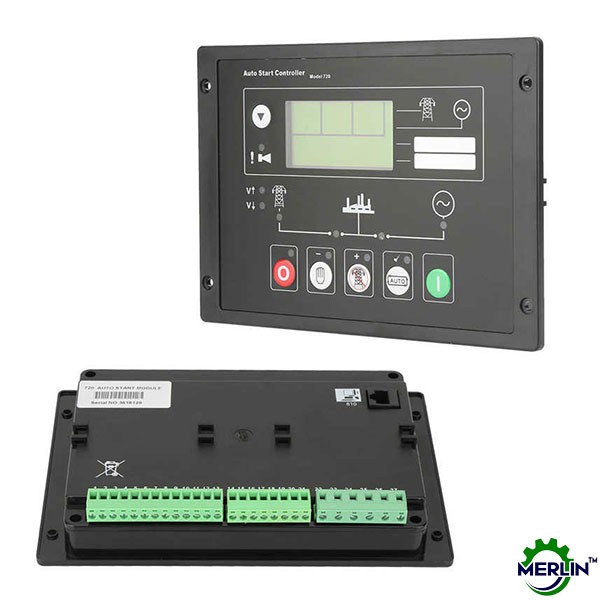

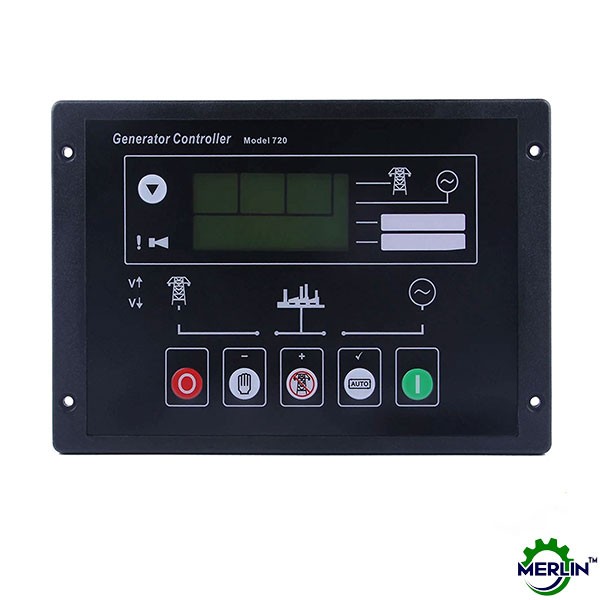

DSE720 Auto Mains (Utility) Failure Control Module

The DSE720, an Automatic Mains (Utility) Failure Control Module, is well-suited for diverse single diesel or gas genset applications. Monitoring an array of engine parameters, it promptly responds to fault conditions by either automatically shutting down the engine or issuing warnings. Fault indications are displayed on the front panel LCD or LED. Easily configurable through the DSE810 interface and PC Software, the module allows control from a PC located within a maximum distance of 100 meters. Front panel editing further enhances accessibility.

ENVIRONMENTAL TESTING STANDARDS

ELECTRO-MAGNETIC COMPATIBILITY
BS EN 61000-6-2
EMC Generic Immunity Standard for the Industrial Environment.
BS EN 61000-6-4
EMC Generic Emission Standard for the Industrial Environment.

ELECTRICAL SAFETY
BS EN 60950
Safety of Information Technology Equipment, including Electrical Business Equipment.

TEMPERATURE
BS EN 60068-2-1
Ab/Ae Cold Test -30°C.
BS EN 60068-2-2
Bb/Be Dry Heat +70°C.

VIBRATION
BS EN 60068-2-6
Ten sweeps in each of three major axes.
5 Hz to 8 Hz @ +/-7.5 mm, 8 Hz to 500 Hz @ 2 gn.

HUMIDITY
BS EN 60068-2-30
Db Damp Heat Cyclic 20/55° C @ 95% RH 48 Hours.
BS EN 60068-2-78
Cab Damp Heat Static 40° C @ 93% RH 48 Hours.

SHOCK
BS EN 60068-2-27
Three shocks in each of three major axes 15 gn in 11 ms.

DEGREES OF PROTECTION PROVIDED BY ENCLOSURES
BS EN 60529
IP65 - Front of module when installed into the control panel with the optional sealing gasket.
