DSE 7320 MKII | Auto Mains (Utility) Failure Control Module

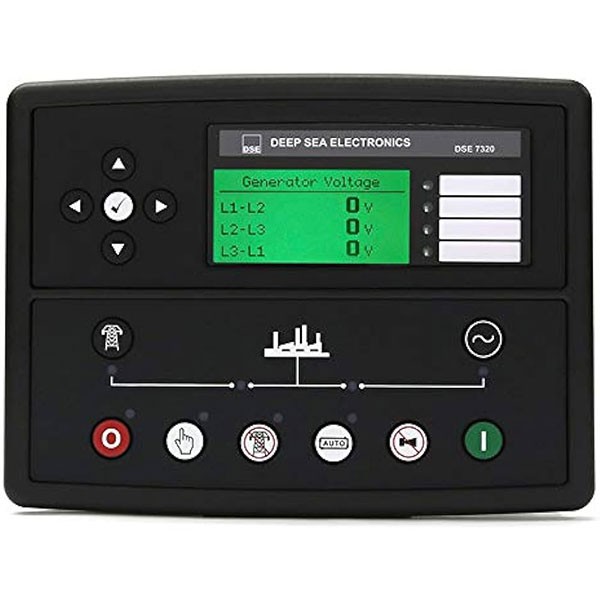

The DSE7320 MKII represents a cutting-edge Auto Mains (Utility) Failure genset control module, boasting an advanced set of features and functions in the familiar user-friendly DSE format. It's suitable for a wide range of single diesel or gas Gen-set applications.

With its new Dual Core main processor and expanded memory, this module delivers enhanced processing power, resulting in faster responses for demanding applications and extended functionality, including data logging capabilities.

The module's comprehensive engine parameter monitoring system displays warnings, shutdown alerts, and engine status information via the back-lit LCD screen, illuminated LED indicators, remote PC access, and SMS text alerts (when used with an external communication device).

OVERALL SIZE

245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")

PANEL CUTOUT SIZE

220 mm x 160 mm (8.7" x 6.3")

MAXIMUM PANEL THICKNESS

8.0 mm (0.3")

PRODUCT VARIANTS

7320-03 - 7320 MKII Auto Mains (Utility) Failure Control Module

PRODUCT SPECIFICATION:

DC SUPPLY

CONTINUOUS VOLTAGE RATING

8 V to 35 V Continuous

5 V for up to 1 minute

CRANKING DROPOUTS

Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking.

MAXIMUM OPERATING CURRENT

510 mA at 12 V, 240 mA at 24 V

MAXIMUM STANDBY CURRENT

330 mA at 12 V, 160 mA at 24 V

CHARGE FAIL/EXCITATION RANGE

0 V to 35 V

GENERATOR & MAINS (UTILITY)

VOLTAGE RANGE

15 V to 415 V AC (Ph to N)

25 V to 719 V AC (Ph to Ph)

FREQUENCY RANGE

3.5 Hz to 75 Hz

MAGNETIC PICK UP

VOLTAGE RANGE

+/- 0.5 V to 70 V

FREQUENCY RANGE

10,000 Hz (max)

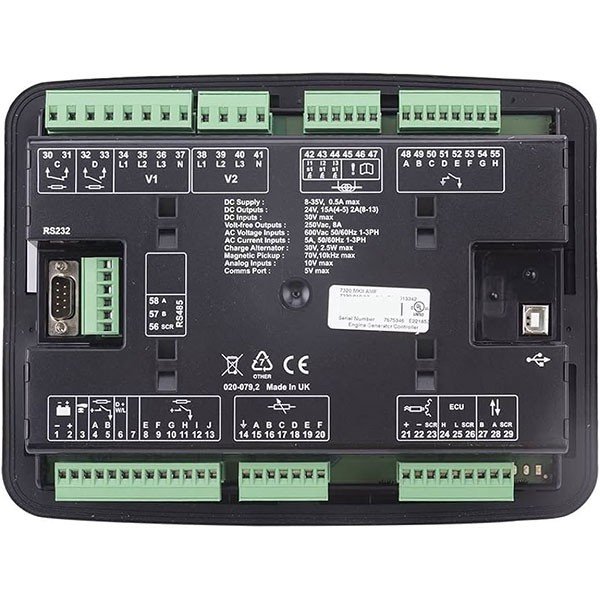

CONNECTION DIAGRAM:
