DSE8660 MKII Auto Transfer Switch & Mains (Utility) Control Module!

The Deep Sea DSE8660 DSE8660MKII Generator Controller is a user-friendly single or multi-mains controller with automatic transfer switch capability.

Designed to synchronize single or multiple DSE8610s with one or more mains (utility) supplies, the DSE8660MKII Controller automatically manages the changeover from mains to generator supply. It can also run generators in synchronization with the mains, providing seamless no-break, peak lopping, and peak shaving power solutions.

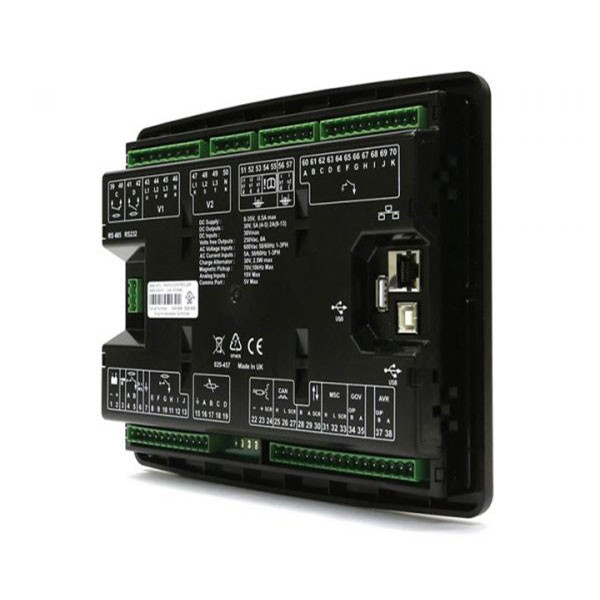

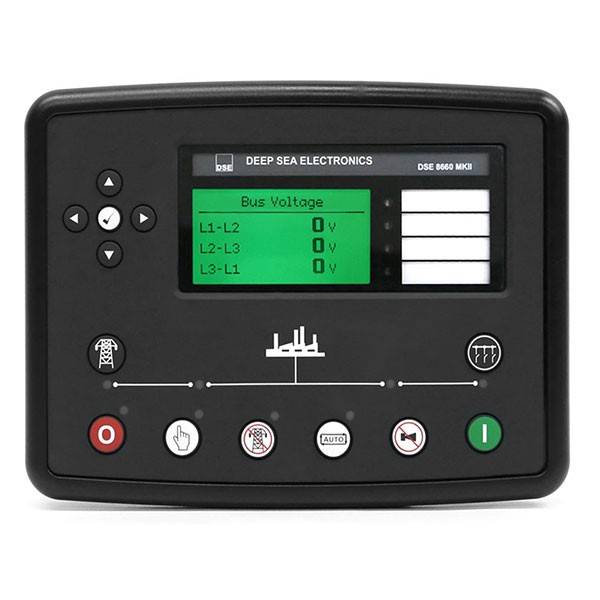

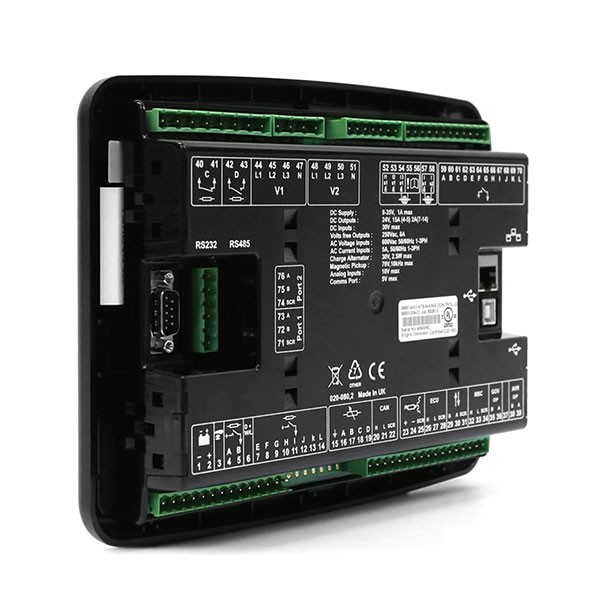

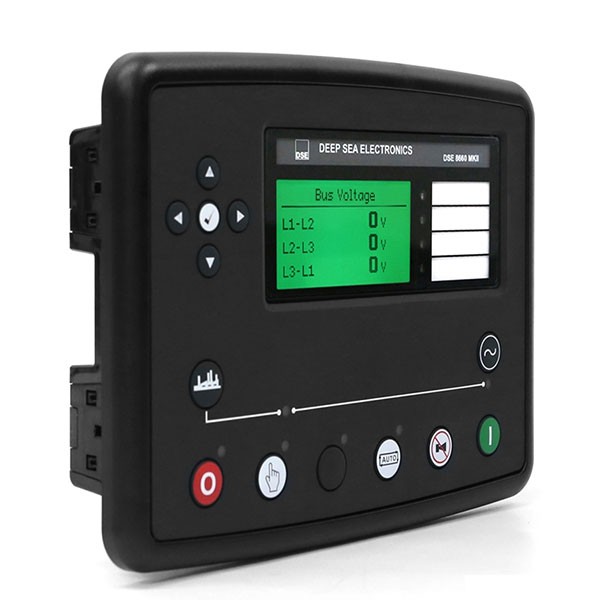

The module displays operational status and fault conditions on an LCD screen (with multiple language options), illuminated LEDs, an audible sounder, and via SMS messaging.

Comprehensive communication capabilities are available through RS485 and RS232 ports, enabling remote PC control and monitoring, and integration into building management systems.

The extensive event log can record up to 250 events, facilitating maintenance. The module includes numerous fixed and flexible monitoring and protection features. Operational sequences, timers, and alarms can be easily adjusted using the DSE PC Configuration Suite Software, with selected configurations available via the front panel.

With all communication ports capable of being active simultaneously, the Deep Sea DSE8660 Generator Controller is ideal for a wide range of demanding load share applications.

OVERALL SIZE
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")

PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")

MAXIMUM PANEL THICKNESS
8.0 mm (0.3")

WEIGHT
0.88kg

PRODUCT VARIANTS
8660-02 - 8660 MKII Auto Transfer Switch & Mains (Utility) Control Module (Ct, Rtc)

SPECIFICATION:

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous

CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries

MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V

MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V

CHARGE FAIL/EXCITATION RANGE
0 V to 35 V

OUTPUTS

OUTPUT A (FUEL)
15 A DC at supply voltage

OUTPUT B (START)
15 A DC at supply voltage

OUTPUTS C & D
8 A AC at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage

GENERATOR & BUS

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

MAGNETIC PICK-UP
VOLTAGE RANGE
+/- 0.5 V to 70 V

FREQUENCY RANGE
10,000 Hz (max)

MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC
Fully isolated

OFFSET VOLTAGE
+/- 10 V DC
Fully isolated

BUILT-IN AVR CONTROL

MINIMUM LOAD IMPEDANCE
1000Ω
Fully isolated

GAIN VOLTAGE
0 V to 10 V DC
Fully isolated

OFFSET VOLTAGE
+/- 10 V DC
Fully isolated
