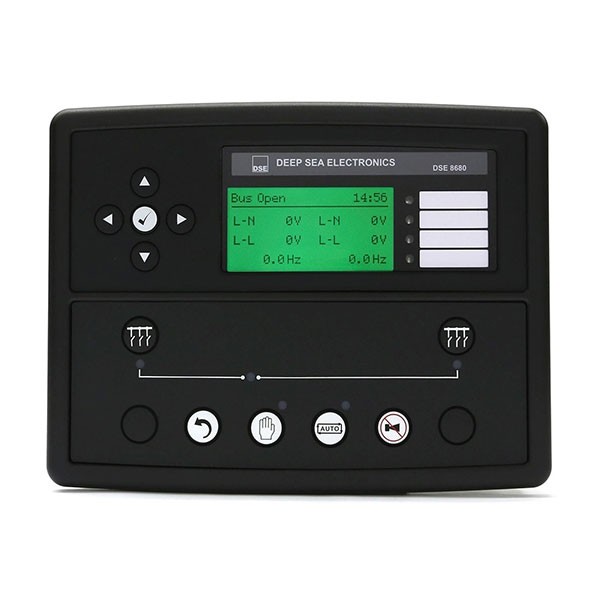

DSE8680 Synchronising Generator Bus Tie Control Module!

The DSE8680 is a smart control module specifically crafted for managing a generator bus-tie breaker. This intelligent module utilizes advanced technology to automate synchronization and check-sync processes across the breaker, employing the DSE multi-set communications (MSC) link during bus-tie breaker openings and closures.

OVERALL SIZE
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
0.86kg
PRODUCT VARIANTS
8680-01 - 8680 Synchronising Generator Bus Tie Control Module

SPECIFICATION:

DC SUPPLY

CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous

MAXIMUM OPERATING CURRENT
150 mA at 12 V, 80 mA at 24 V

MAXIMUM STANDBY CURRENT
50 mA at 12 V, 30 mA at 24 V

BUS 1 AND BUS 2

VOLTAGE RANGE
15 V to 333 V AC (L-N)

FREQUENCY RANGE
3.5 Hz to 75 Hz

OUTPUTS

OUTPUTS C & D
8 A at 250 V AC (Volt free)

AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage

CONNECTION DIAGRAM:
