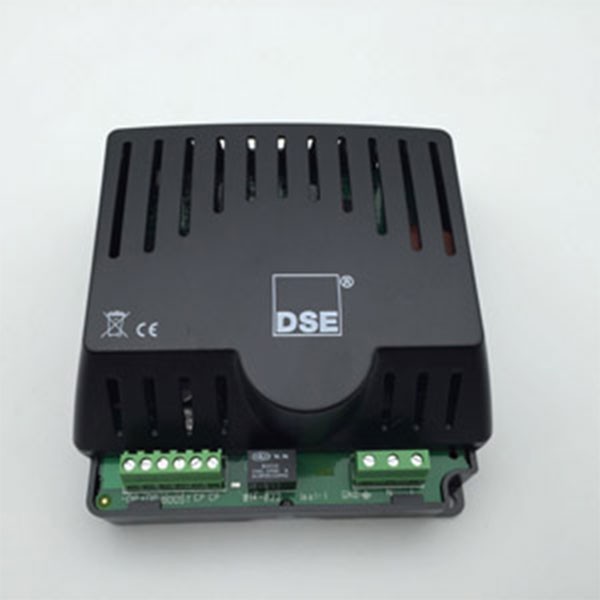

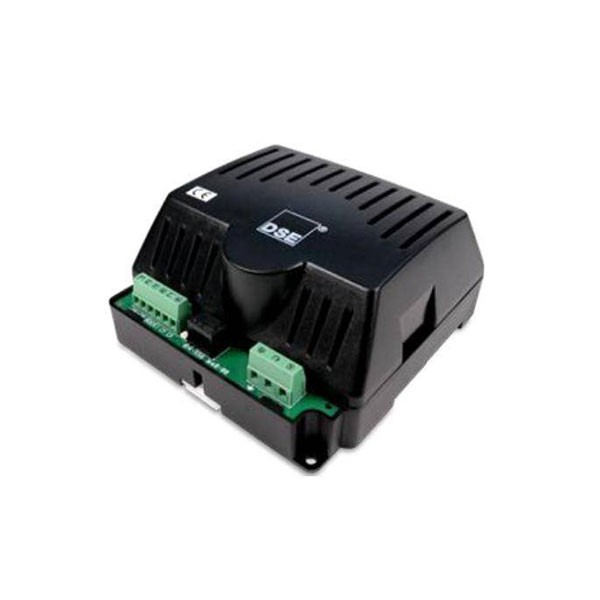

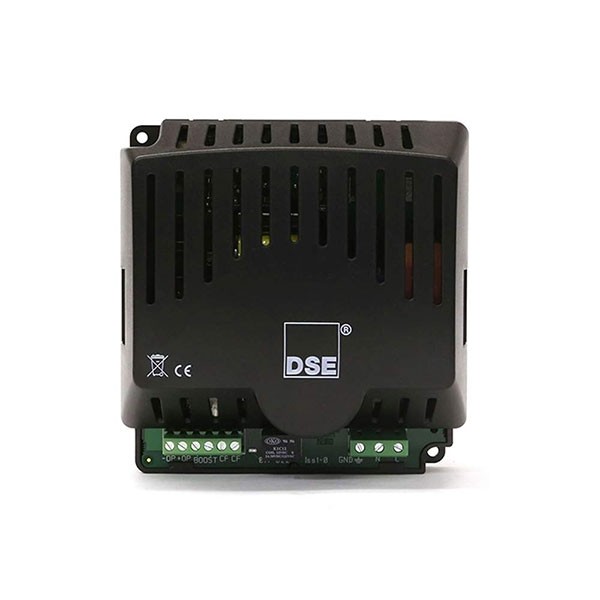

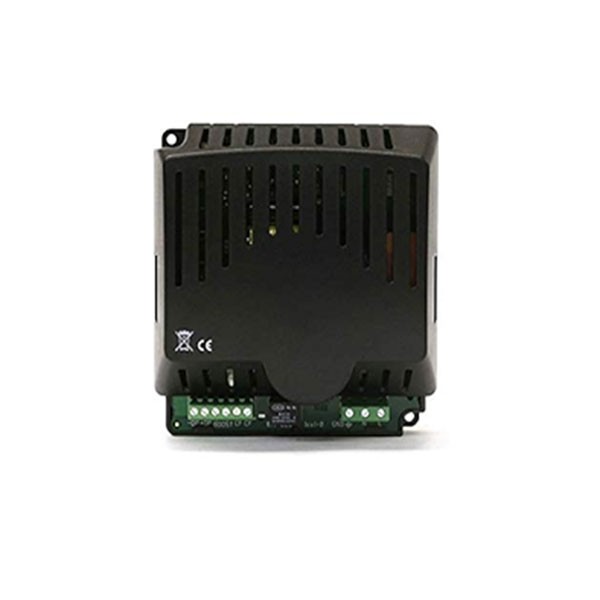

DSE9255 | 24 Volt 5 AMP Compact Battery Charger!

The DSE9255 24-volt 5-amp Switch-Mode Battery Charger ensures batteries are always charged to their maximum capacity. Designed for permanent battery connection, it can be mounted on a DIN rail or chassis. The charger features a front LED indicator for normal or overload conditions, operates during cranking and running, and supports multiple AC voltage connections.

OVERALL SIZE
136 mm x 140 mm x 63 mm (5.4” x 5.5” x 2.5”)
WEIGHT
0.5kg
PRODUCT VARIANTS
9255-00 - 24 volt 5 amp Compact Battery Charger (90-305v 50/60Hz)

SPECIFICATION:

AC SUPPLY

VOLTAGE RANGE

90 V to 305 V (L-N)

DC OUTPUT

5 A DC 24 V DC at 13.7 V DC

RIPPLE AND NOISE

<1%

EFFICIENCY

>80%

REGULATION

LINE

<0.001% Vo

LOAD

1% Vo

PROTECTIONS

• Short Circuit
• Over Voltage
• Over Current
• Reverse Polarity

CONNECTION DIAGRAM:
