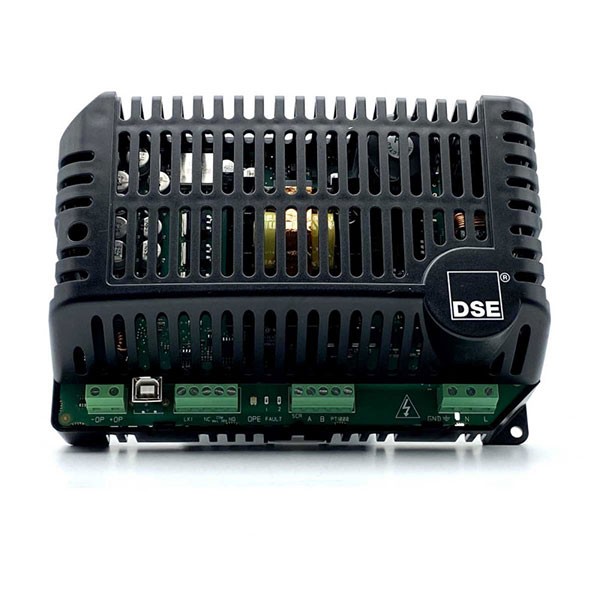

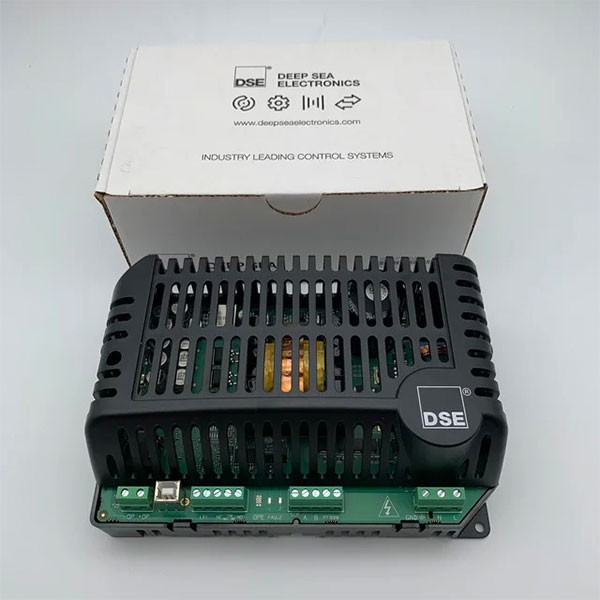

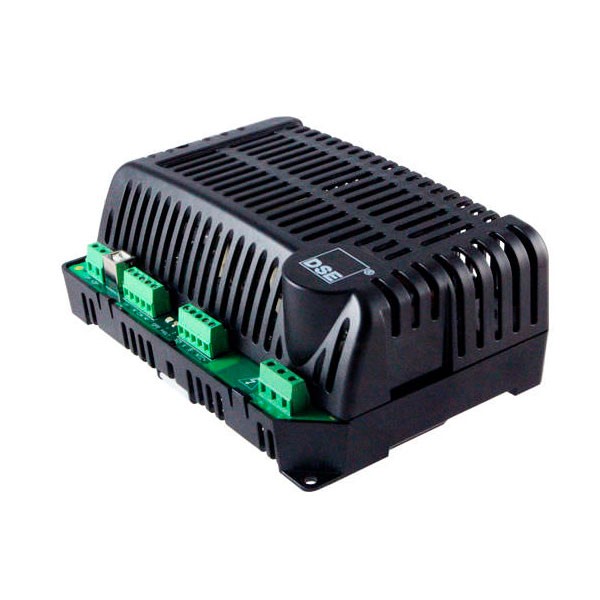

DSE9470MKII | 24 Volt 10 Amp Intelligent Battery Charger!

The Deep Sea DSE9470 MKII is an intelligent switch-mode battery charger designed to optimize battery life through programmable charging curves. The charger is configured using the DSE Configuration Suite Software. It can be mounted on a DIN rail or chassis and features three built-in LEDs to indicate current charging status and fault conditions. The DSE9470 continues to operate during cranking and running and accommodates multiple AC voltage connections.

OVERALL SIZE
80 mm x 205 mm x 135 mm (3.1” x 8.0” x 5.3”)
WEIGHT
0.78kg
PRODUCT VARIANTS
9470-01 - 24 V 10 A Intelligent Battery Charger (USA - UL - 110 V - 250 V)
9470-A4 - 24 V 10 A Intelligent Battery Charger (USA & Canada - UL - 110 V - 150 V)

SPECIFICATION:

AC SUPPLY

VOLTAGE RANGE
90 V to 305 V (L-N)

FREQUENCY RANGE
48 Hz to 64 Hz (L-N)

DC OUTPUT

DSE9470 OUTPUT
10 A DC at 24 V DC

RIPPLE AND NOISE
<1%

EFFICIENCY
>86%

REGULATION

LINE
<0.5%

LOAD
2%

TEMPERATURE SENSOR INPUT

PT1000

PROTECTIONS

Short Circuit
DC Over Voltage
DC Over Current
Reverse Polarity
Over Temperature
AC Under & Over Voltage

CHARGE FAILURE RELAY

3 A at 30 V DC volt free relay
