DSE9702 | Vertical 12 Volt 5 AMP Battery Charger!

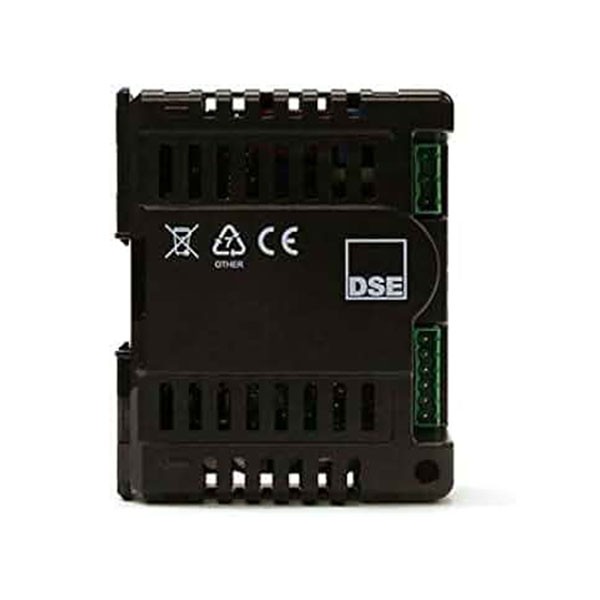

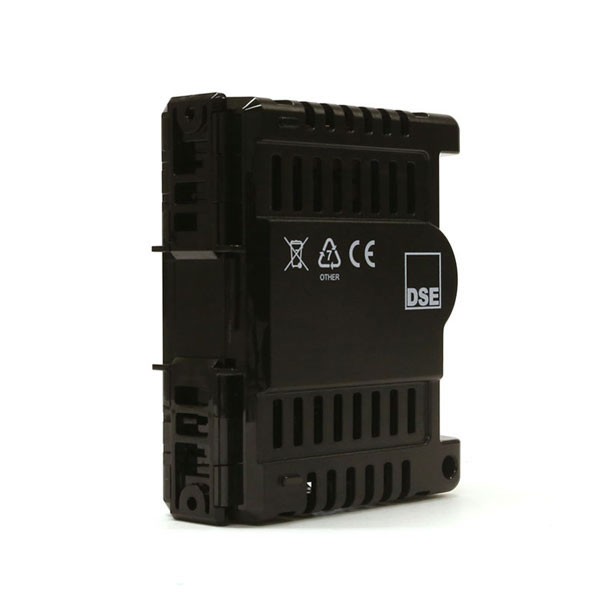

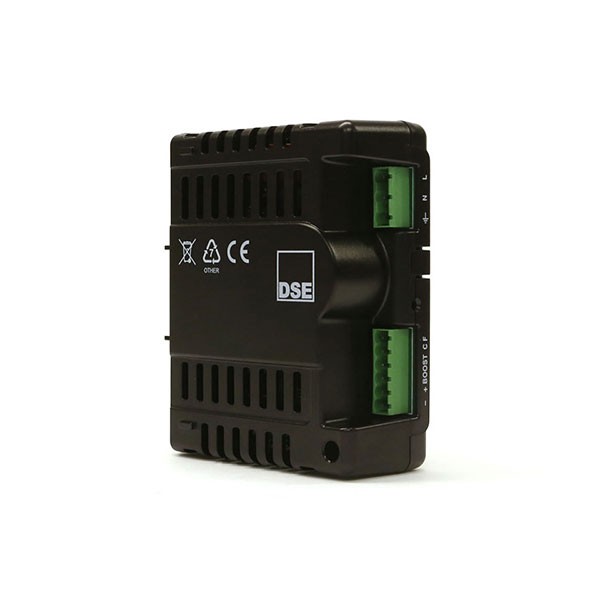

The DSE9702 is a 12-volt, 5-amp switch-mode battery charger, ensuring continuous maximum charge for your batteries. Specifically crafted for permanent battery connection, it offers the flexibility of DIN rail or chassis mounting. Featuring front-facing LED indicators for normal and overload conditions, the charger facilitates easy status identification. Operating seamlessly during cranking and running, it accommodates multiple AC voltage connections for versatile use.

DIN RAIL MOUNTED (W x H x D)
110 mm x 133 mm x 48 mm (4.3” x 5.2” x 1.9”)
CHASSIS MOUNTED (W x H x D)
112 mm x 153 mm x 48 mm (4.4” x 6.0” x 1.9”)
WEIGHT
0.4kg
PRODUCT VARIANTS
9702-01 - Vertical 12 Volt 5 Amp Battery Charger (90-305v 50/60Hz)

SPECIFICATION:

AC SUPPLY

FREQUENCY RANGE
45 Hz to 65 Hz

VOLTAGE RANGE
90 V to 305 V (L-N)

DC OUTPUT

5 A DC 12 V DC

RIPPLE AND NOISE
<1%

EFFICIENCY
>80%

REGULATION

LINE
<0.001% Vo

LOAD
1% Vo

PROTECTIONS

• Short Circuit

• Over Voltage

• Over Current

• Reverse Polarity

CONNECTION DIAGRAM:
