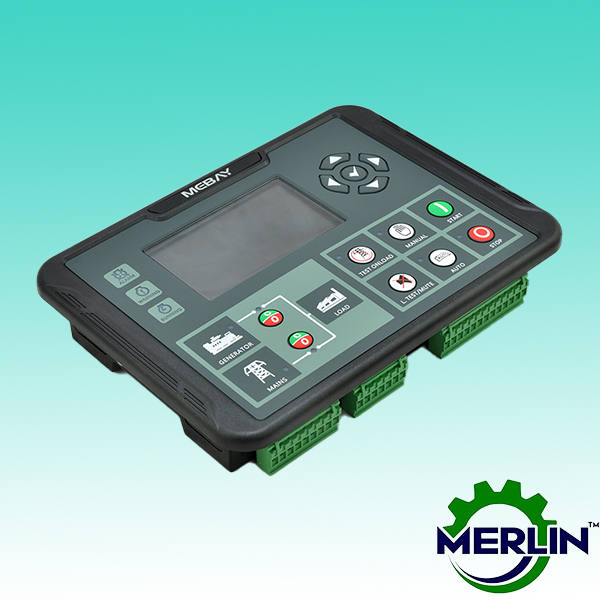

MEBAY Genset Controllers for Generator | DC92D MK2 in Bangladesh!
This Mebay controller series is designed specifically for Diesel/Gasoline/Gas Genset operations, encompassing start/stop functions, parameter monitoring, fault detection, and data configuration.

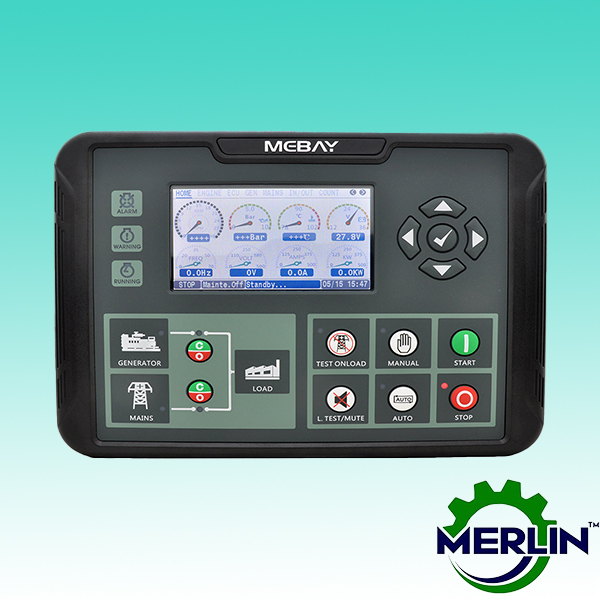

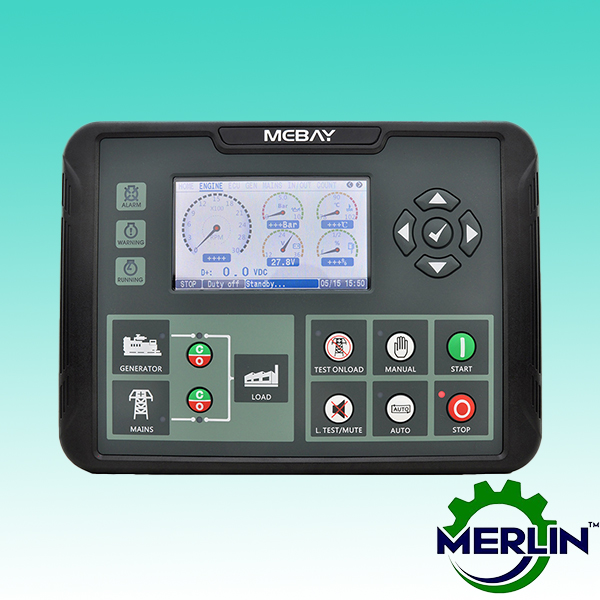

Featuring a
4.3-inch colorful LCD screen with a new UI design, it can directly display
relevant failures. Parameters are visualized using simulated indicators and
words. The LCD screen can simultaneously show various faults, prompting genset
shutdown if smooth operation is compromised.
With
Chinese/English interface options and the ability to add more languages upon
request, users can configure parameters using front-facing buttons or
programmable interfaces (RS485/USB) for PC adjustments.
Versatile
and adaptable, it's suitable for various genset auto control systems.
Parameters
|
Options |
Parameters |
|
Working
voltage |
DC9V----36V
Continuous |
|
Power
consumption |
Standby：24V：MAX 1W |
|
Working：24V：MAX 7W |
|
|
AC
Voltage Input |
1P2W
30VAC-276VAC (ph-N) |
|
2P3W
30VAC-276VAC (ph-N) |
|
|
3P4W
30VAC-276VAC (ph-N) |
|
|
Rotate
speed sensor Frequency |
200-10000Hz |
|
MAX
Accumulating Time |
99999.9Hours（Min Store
time:6min） |
|
Fuel
Relay Output |
Max 16Amp
DC+VE Supply voltage |
|
Start
Relay Output |
Max 16Amp
DC+VE Supply voltage |
|
AUX. output
1 |
Max 16Amp
Non-contact-Normal close output |
|
AUX. output
2 |
Max 16Amp
Non-contact Normal open output |
|
AUX. output
3 |
Max 5Amp
DC+VE Supply voltage |
|
AUX. output
4 |
Max 5Amp
DC+VE Supply voltage |
|
AUX. output
5 |
Max 5Amp
DC+VE Supply voltage |
|
AUX. output
6 |
Max 5Amp
DC+VE Supply voltage |
|
AUX. output
7 |
Max 5Amp
DC+VE Supply voltage |
|
AUX. output
8 |
Max 5Amp
DC+VE Supply voltage |
|
Excitation
output |
Max
0.9AMP DC+VE supply voltage |
|
Switch
value input |
Available
if connecting with Battery - |
|
Working
condition |
-25-65℃ |
|
Storage
condition |
-40-85℃ |
|
Protection
Level |
IP65：when
waterproof rubber gasket is added between controller and its panel |
|
Insulation
strength |
Apply
AC1.5kV voltage between high voltage terminal and low voltage terminal; The
leakage current is not more than 3mA within 1min. |
|
Overall
dimension |
241mm*177mm*45mm |
|
Panel
cutout |
220mm*160mm |
|
Weight |
1Kg |
