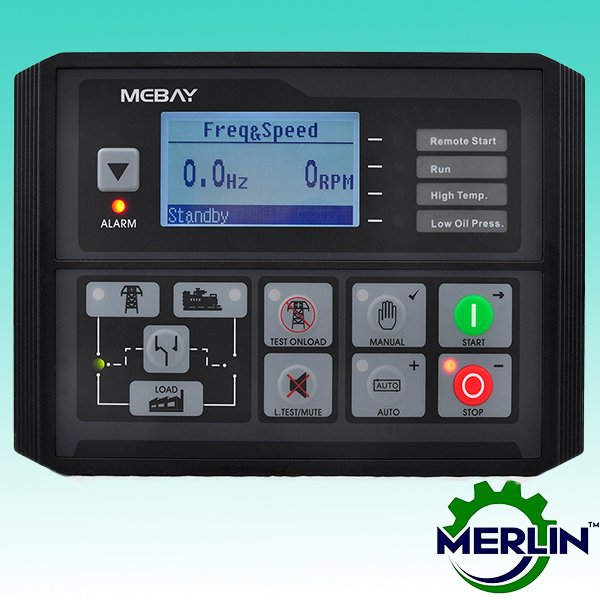

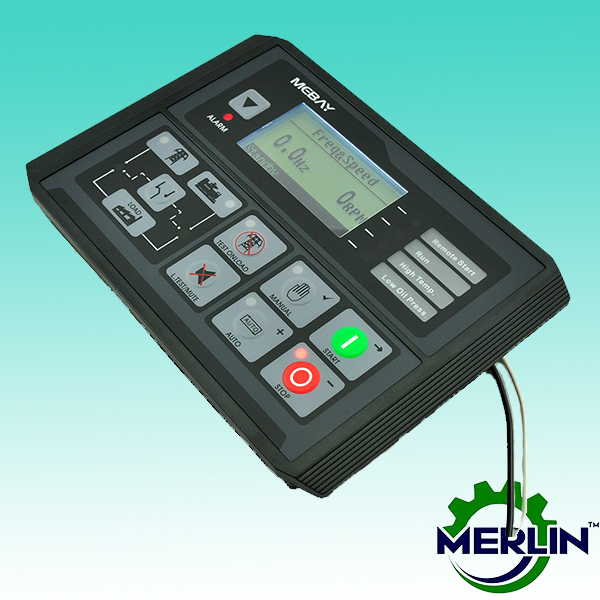

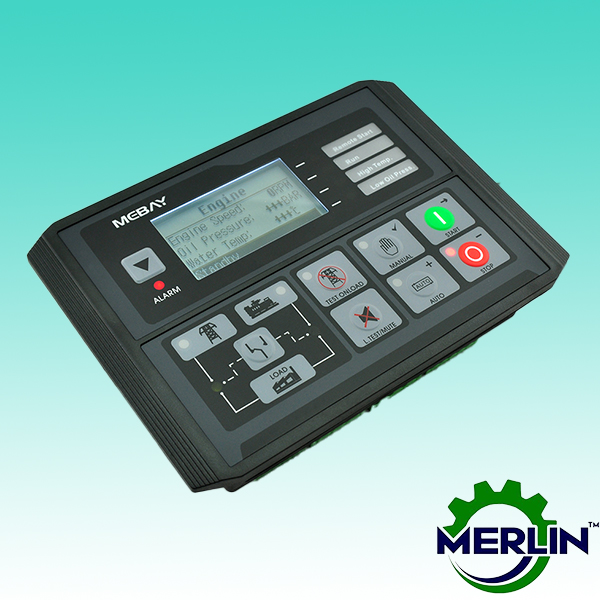

MEBAY Genset Controllers for Generator in Bangladesh!
This Mebay controller series is specifically designed for Diesel/Gasoline/Gas Genset operations, encompassing start/stop functions, parameter monitoring, fault detection, and data configuration. Featuring a 3-inch LCD screen, it can simultaneously display multiple faults, prompting genset shutdown in case of operational issues. Offering Chinese/English interface options with additional languages available upon request, parameters can be configured via front-facing buttons or programmable interfaces (USB/RS485) for PC adjustments. Versatile and adaptable, it suits various genset auto control systems.
Specifications:
Options |
Parameters |
Working
voltage |
DC8V~36V
Continuous |
Power
consumption |
Standby:24V:MAX 1W |
Working:24V:MAX 5W |
|
AC
Voltage Input |
1P2W
50VAC-276VAC(ph-N) |
2P3W
50VAC-276VAC(ph-N) |
|
3P4W
50VAC-276VAC(ph-N) |
|
Rotate
speed sensor Frequency |
50-9000Hz |
MAX
Accumulating Time |
99999.9Hours(Min Store
time:6min) |
Fuel
Relay Output |
5Amp
DC+VE Supply voltage |
Start
Relay Output |
5Amp
DC+VE Supply voltage |
Programmable
Relay output 1 |
5Amp
DC+VE Supply voltage |
Programmable
Relay output 2 |
5AMP
Non-contact-Normal open--Normal close output |
Programmable
Relay output 3 |
5AMP
Non-contact Normal Open output |
Programmable
Relay output 4 |
5AMP
Non-contact normal open output |
Excitation
output |
Max 1AMP
DC+VE supply voltage |
Switch
value input |
Available
if connecting with Battery - |
Working
condition |
-25-65℃ |
Storage
condition |
-40-85℃ |
Protection
Level |
IP65:when
waterproof rubber gasket is added between controller and its panel |
Overall
dimension |
189mm×134mm×50mm |
Panel
cutout |
160mm×120mm |
Weight |
0.68Kg |
