Genset Controllers for Generator | DC50D MK3
EMI Available
Model: DC50D MK3
Brand: MEBAY TECHNOLOGY
17500.00 17500.00

MEBAY Genset Controllers for Generator | DC50D MK3 in Bangladesh!

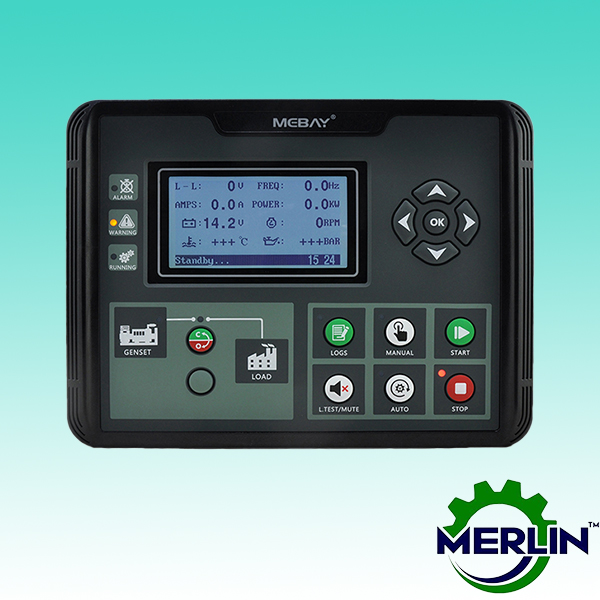

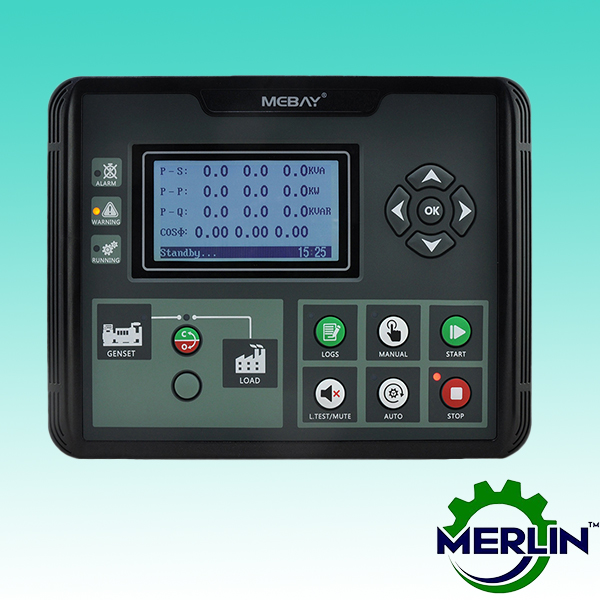

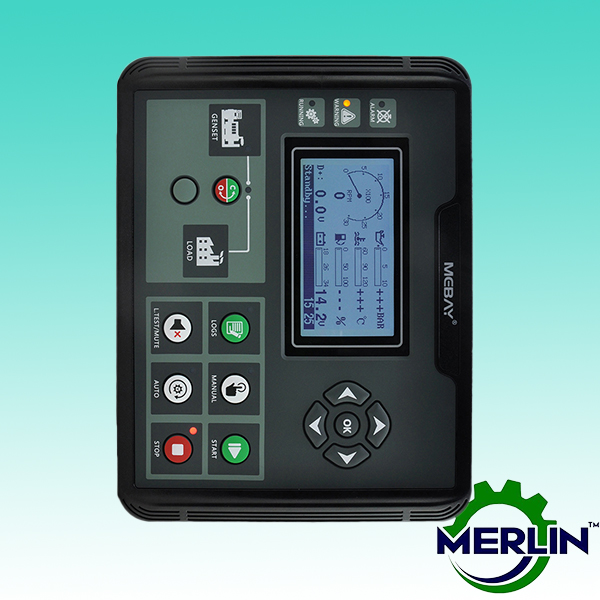

This Mebay controller series is tailored for Diesel/Gasoline/Gas Genset operations, including start, stop, parameter monitoring, fault-checking, and data configuration. Featuring a 3.5-inch LCD screen with a new UI design, it directly displays relevant failures and parameters through simulated indicators and text. Offering Chinese/English interface options with additional languages available upon request, it allows for parameter configuration via front-facing buttons or programmable interfaces (RS485/USB) for PC adjustments. Versatile and adaptable, it suits various genset auto control systems.

Parameters

Options

Parameters

Working voltage

DC8V----36V Continuous

Power consumption

Standby24VMAX 1W

Working24VMAX5W

AC Voltage Input

1P2W 30VAC-276VAC (ph-N)

2P3W 30VAC-276VAC (ph-N)

3P4W 30VAC-276VAC (ph-N)

Rotate speed sensor Frequency

50-10000Hz

MAX Accumulating Time

99999.9HoursMin Store time:6min

Fuel Relay Output

Max 16Amp DC+VE Supply voltage

Start Relay Output

Max 16Amp DC+VE Supply voltage

AUX. output 1

Max 5Amp DC+VE Supply voltage

AUX. output 2

Max 5Amp Non-contact normal open or normal close output

AUX. output 3

5AMP Non-contact normal open output

PAUX. output 4

5AMP Non-contact normal open output

Excitation output

Max 1AMP DC+VE supply voltage

Switch value input

Available if connecting with Battery -

Working condition

-25-65

Storage condition

-40-85

Protection Level

IP65when waterproof rubber gasket is added between controller and its panel

Insulation strength

Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Overall dimension

210mm*160mm*50mm

Panel cutout

186mm*142mm

Weight

0.85Kg
