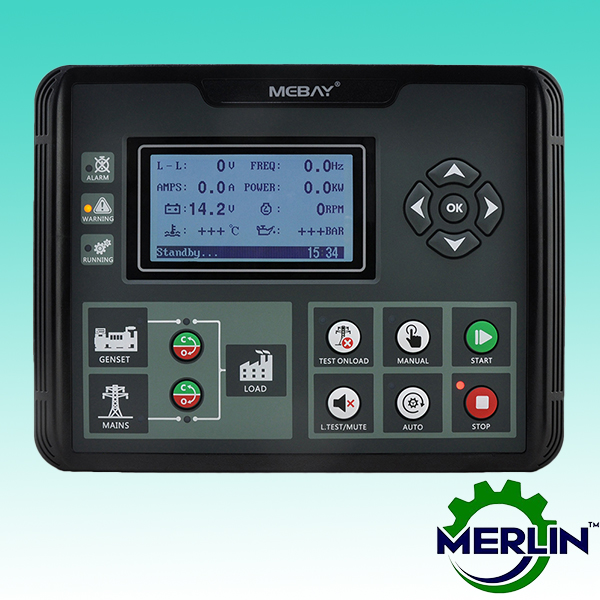

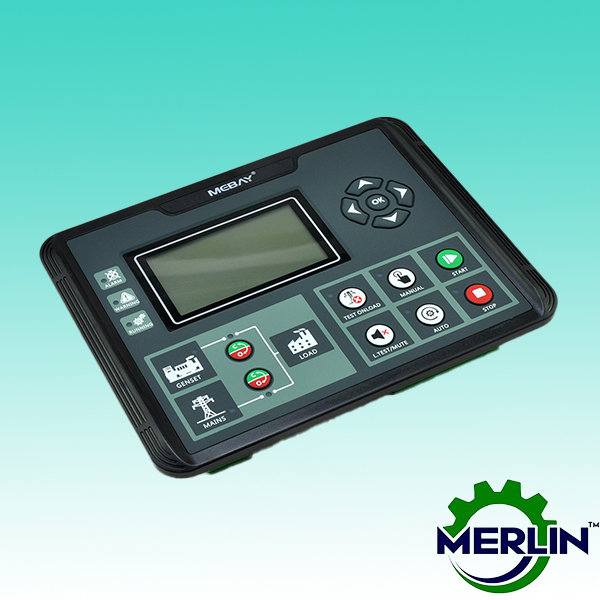

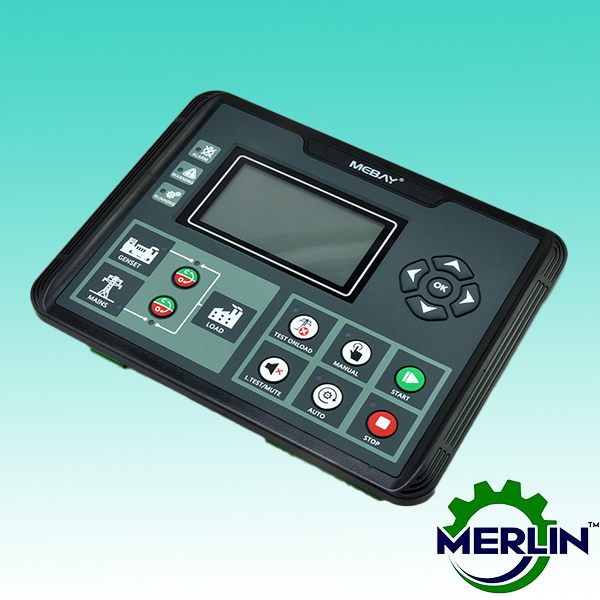

MEBAY Genset Controllers for Generator | DC52D MK3 in Bangladesh
This specialized Mebay controller is
designed for Diesel/Gasoline/Gas Genset operations, including start/stop
functions, parameter monitoring, fault detection, and data configuration.

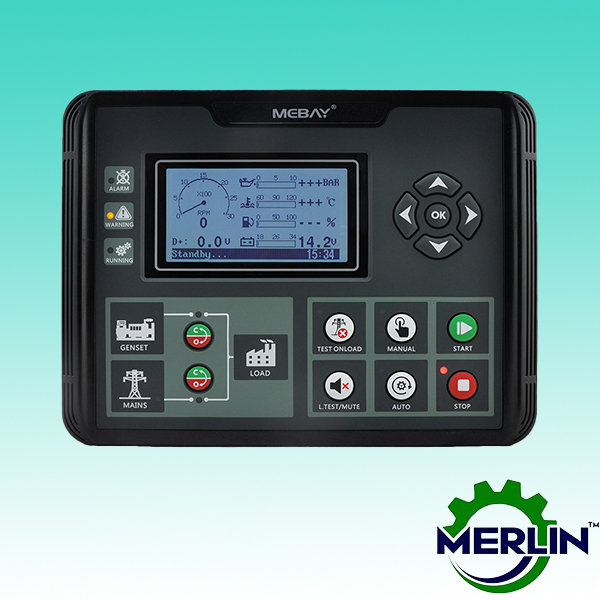

Featuring a 3.5-inch LCD screen
with a brand new UI design, it directly displays relevant failures and
parameters through simulated indicators and text. The LCD screen can
simultaneously show various faults, prompting genset shutdown if smooth
operation is compromised.
With Chinese/English interface
options and the ability to add more languages upon request, users can configure
parameters via front-facing buttons or programmable interfaces (RS485/USB) for
PC adjustments.
Versatile and adaptable, it's suitable for a wide range of genset auto control systems.
Parameters
|
Options |
Parameters |
|
Working
voltage |
DC8V----36V
Continuous |
|
Power
consumption |
Standby：24V：MAX 1W |
|
Working：24V：MAX5W |
|
|
AC
Voltage Input |
1P2W
30VAC-276VAC (ph-N) |
|
2P3W
30VAC-276VAC (ph-N) |
|
|
3P4W
30VAC-276VAC (ph-N) |
|
|
Rotate
speed sensor Frequency |
50-10000Hz |
|
MAX
Accumulating Time |
99999.9Hours（Min Store
time:6min） |
|
Fuel
Relay Output |
Max 16Amp
DC+VE Supply voltage |
|
Start
Relay Output |
Max 16Amp
DC+VE Supply voltage |
|
AUX.
output 1 |
Max 5Amp
DC+VE Supply voltage |
|
AUX.
output 2 |
Max 5Amp
Non-contact normal open or normal close output |
|
AUX.
output 3 |
5AMP
Non-contact normal open output |
|
PAUX.
output 4 |
5AMP
Non-contact normal open output |
|
Excitation
output |
Max 1AMP
DC+VE supply voltage |
|
Switch
value input |
Available
if connecting with Battery - |
|
Working
condition |
-25-65℃ |
|
Storage
condition |
-40-85℃ |
|
Protection
Level |
IP65：when
waterproof rubber gasket is added between controller and its panel |
|
Insulation
strength |
Apply
AC1.5kV voltage between high voltage terminal and low voltage terminal; The
leakage current is not more than 3mA within 1min. |
|
Overall
dimension |
210mm*160mm*50mm |
|
Panel
cutout |
186mm*142mm |
|
Weight |
0.85Kg |
