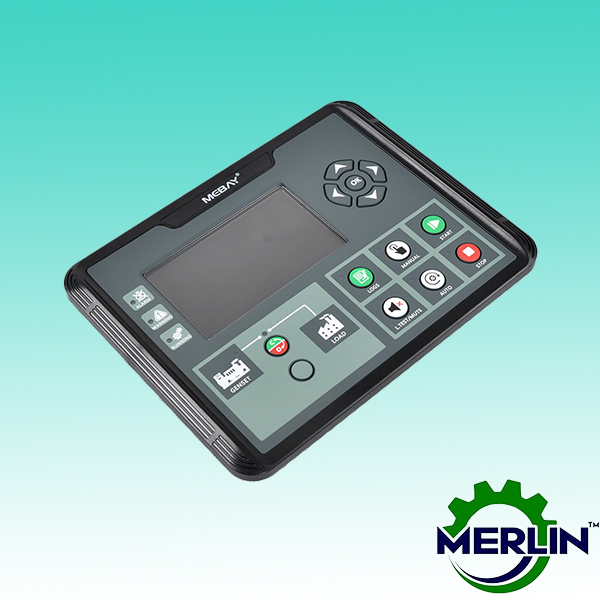

MEBAY Controllers for Generator | DC70D MK2 in Bangladesh!
This
specialized MEBAY Controller is designed for Diesel/Gasoline/Gas Genset operations,
including start/stop functions, parameter monitoring, fault detection, and data
configuration.

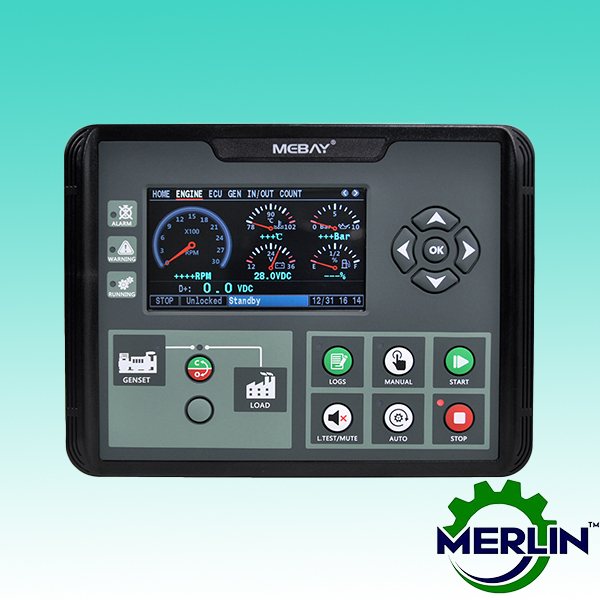

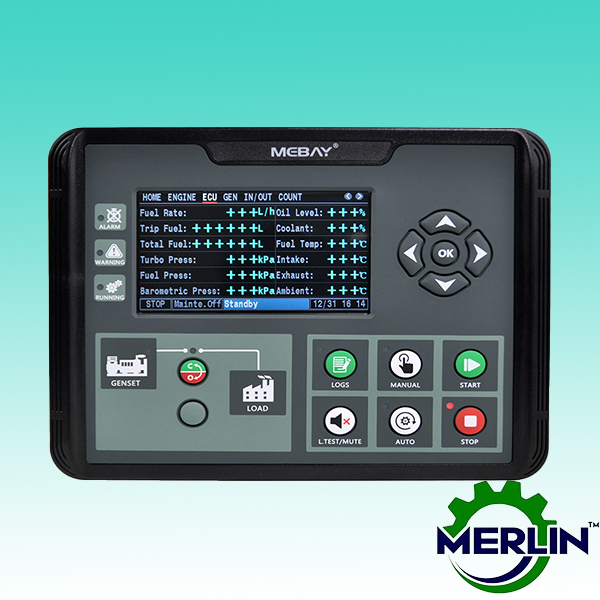

Featuring a
4.3-inch colorful LCD screen with a brand new UI design, it directly displays
relevant failures and parameters through simulated indicators and text. The LCD
screen can simultaneously show various faults, prompting genset shutdown if
smooth operation is compromised.
With
Chinese/English interface options and the ability to add more languages upon
request, users can configure parameters via front-facing buttons or
programmable interfaces (RS485/USB) for PC adjustments.
Versatile
and adaptable, it's suitable for a wide range of genset auto control systems.
Parameters
Options |
Parameters |
Working
voltage |
DC8V----36V
Continuous |
Power
consumption |
Standby:24V:MAX 1W |
Working:24V:MAX 5W |
|
AC
Voltage Input |
1P2W 30VAC-276VAC(ph-N) |
2P3W 30VAC-276VAC(ph-N) |
|
3P4W 30VAC-276VAC(ph-N) |
|
Rotate
speed sensor Frequency |
200-10000Hz |
MAX
Accumulating Time |
99999.9Hours(Min Store
time:6min) |
Fuel
Relay Output |
16Amp
DC+VE Supply voltage |
Start
Relay Output |
16Amp
DC+VE Supply voltage |
Programmable
Relay output 1 |
5Amp
DC+VE Supply voltage |
Programmable
Relay output 2 |
5AMP
Non-contact-Normal open--Normal close output |
Programmable
Relay output 3 |
5AMP
Non-contact Normal Open output |
Programmable
Relay output 4 |
5AMP
Non-contact normal open output |
Programmable
Relay output 5 |
5AMP
Non-contact-Normal open--Normal close output |
Excitation
output |
Max 1AMP
DC+VE supply voltage |
Switch
value input |
Available
if connecting with Battery - |
Working
condition |
-20-65℃ |
Storage
condition |
-40-85℃ |
Protection
Level |
IP65:when
waterproof rubber gasket is added between controller and its panel |
Overall
dimension |
210mm*160mm*50mm |
Panel
cutout |
186mm*142mm |
Weight |
0.9Kg |
