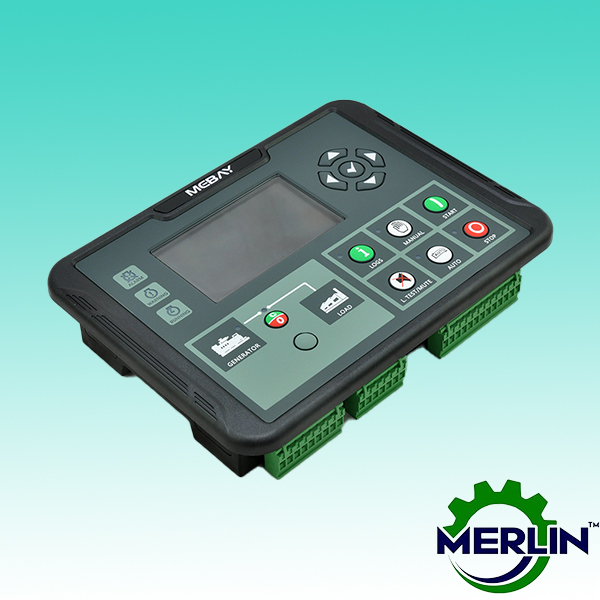

Genset Controllers for Generator | DC90D MK2
EMI Available
Model: DC90D MK2
Brand: MEBAY TECHNOLOGY
21600.00 21600.00

MEBAY Genset Controllers for Generator | DC90D MK2 in Bangladesh!

This Mebay controller series is specialized for Diesel/Gasoline/Gas Genset operations, including start/stop functions, parameter monitoring, fault checking, and data setting.

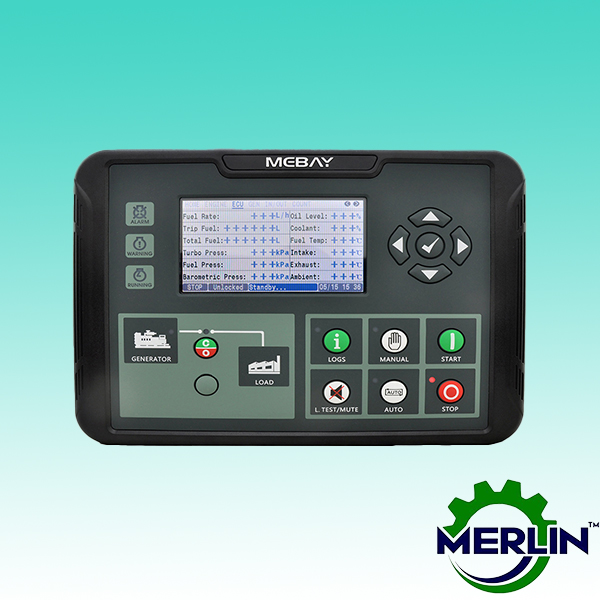

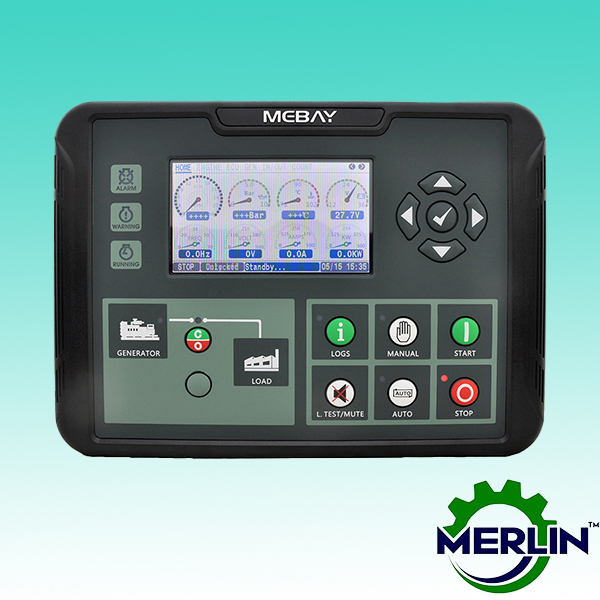

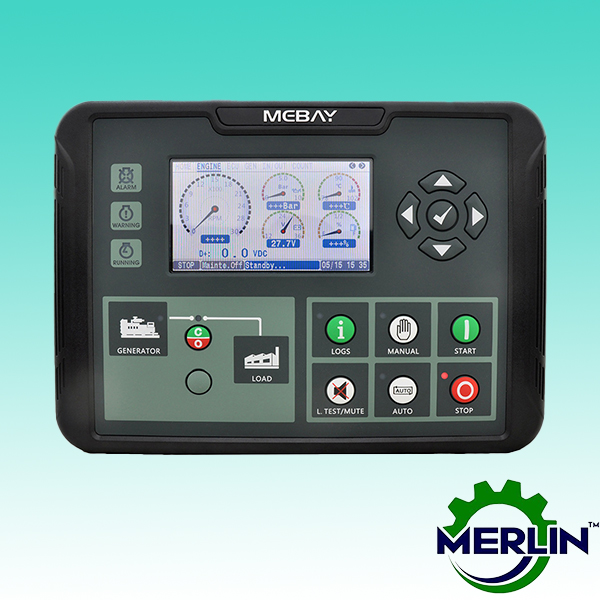

Equipped with a 4.3-inch colorful LCD screen featuring a new UI design, this controller can directly display relevant failures. Parameters are visualized using simulated indicators and words. The LCD screen can simultaneously display various faults, triggering genset shutdown if smooth operation is compromised.


With Chinese/English interface options and the ability to add more languages upon request, users can configure parameters using front-facing buttons or programmable interfaces (RS485/USB) for PC adjustments.

Versatile and adaptable, it's suitable for various genset auto control systems.



Parameters

Options

Parameters

Working voltage

DC9V----36V Continuous

Power consumption

Standby24VMAX 1W

Working24VMAX 7W

AC Voltage Input

1P2W 30VAC-276VAC (ph-N)

2P3W 30VAC-276VAC (ph-N)

3P4W 30VAC-276VAC (ph-N)

Rotate speed sensor Frequency

200-10000Hz

MAX Accumulating Time

99999.9HoursMin Store time:6min

Fuel Relay Output

Max 16Amp DC+VE Supply voltage

Start Relay Output

Max 16Amp DC+VE Supply voltage

AUX. output 1

Max 16Amp Non-contact-Normal close output

AUX. output 2

Max 16Amp Non-contact Normal open output

AUX. output 3

Max 5Amp DC+VE Supply voltage

AUX. output 4

Max 5Amp DC+VE Supply voltage

AUX. output 5

Max 5Amp DC+VE Supply voltage

AUX. output 6

Max 5Amp DC+VE Supply voltage

AUX. output 7

Max 5Amp DC+VE Supply voltage

AUX. output 8

Max 5Amp DC+VE Supply voltage

Excitation output

Max 0.9AMP DC+VE supply voltage

Switch value input

Available if connecting with Battery -

Working condition

-25-65

Storage condition

-40-85

Protection Level

IP65when waterproof rubber gasket is added between controller and its panel

Insulation strength

Apply AC1.5kV voltage between high voltage terminal and low voltage terminal; The leakage current is not more than 3mA within 1min.

Overall dimension

241mm*177mm*45mm

Panel cutout

220mm*160mm

Weight

1Kg
