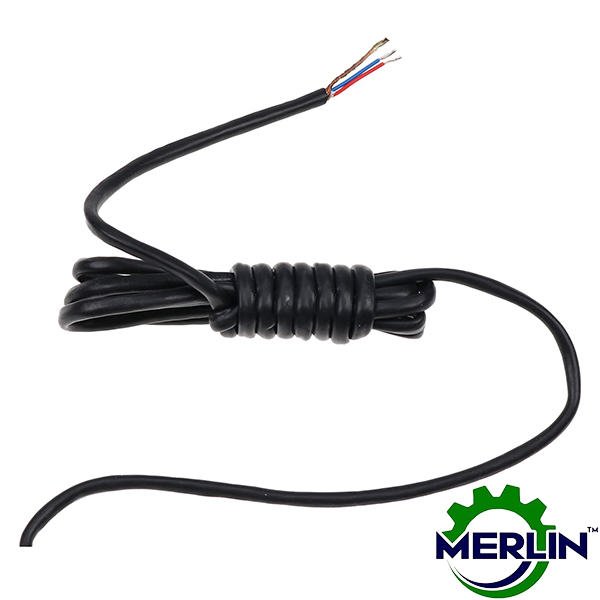

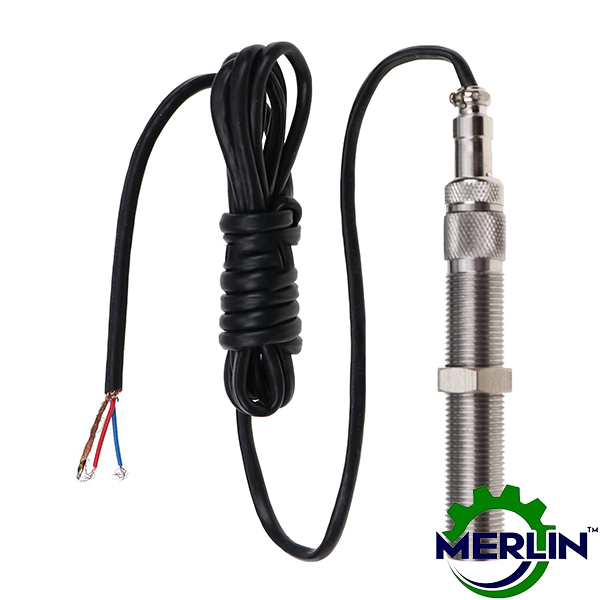

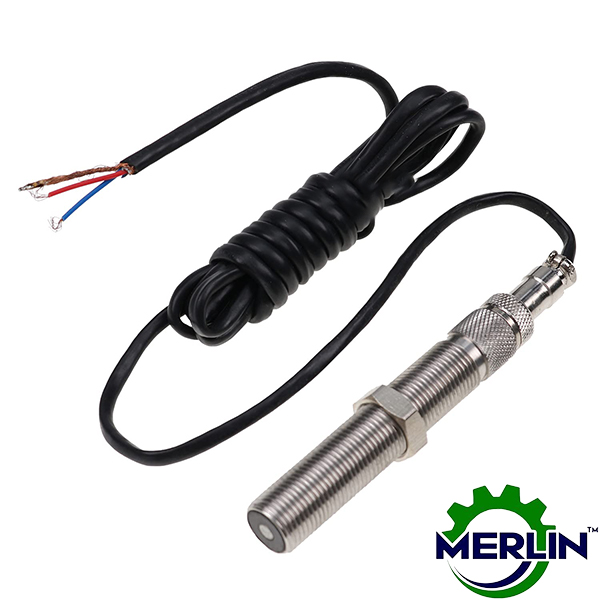

Magnetic Pickup 213272 MPU Speed Sensor for Generator Set

The Magnetic Pickup 213272 MPU Speed Sensor is an essential component designed to enhance the functionality and performance of generator sets. With its precision engineering and reliable operation, this speed sensor accurately detects the speed of the generator set, enabling precise monitoring and control. Whether used in industrial or commercial settings, this sensor ensures optimal performance, contributing to the efficiency and reliability of generator operations. Upgrade your generator set with the Magnetic Pickup 213272 MPU Speed Sensor for enhanced performance and peace of mind.

Product Description

• Part No.: 213272

Magnetic Speed Sensors:

• 213272 magnetic pick-up sensor
• Magnetic Pickup (MPU) 213272 specifications:
• Measure range: 50-5000Hz
• Inductance: 142MH+25%
• Thread Size: 5/8-18 UNF-2A
• Tap Drill Size: 37/64 inch
• Proximity to Gear Teeth: .028 in min. - .042 in max.(Approximately 1/2 to 3/4 turn)
• Temperature Range: -55 deg C to 105 deg C
• Output at Cranking Speed: 1.5 volts AC minimum
• Maximum Output: 30 volts AC
• Coil Resistance: 300 ohms maximum
