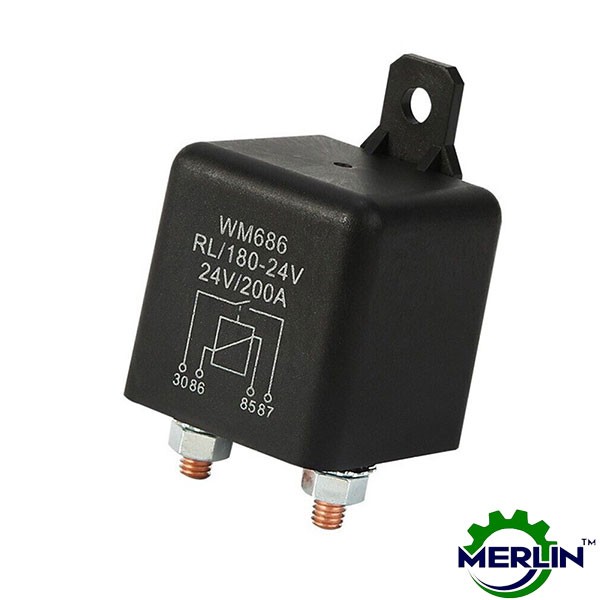

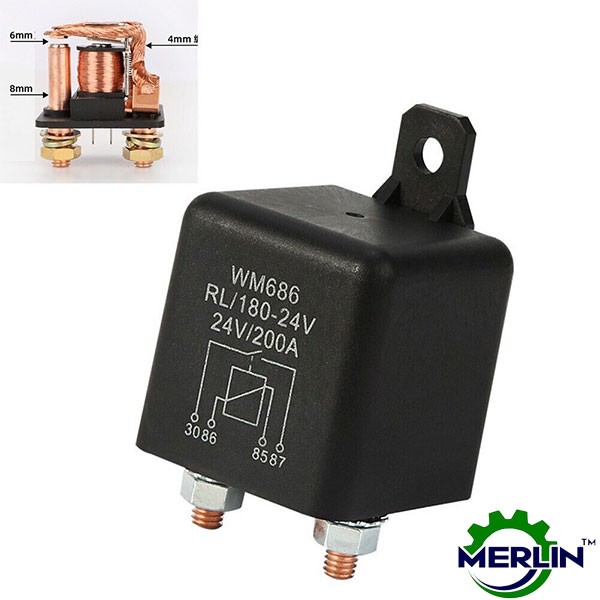

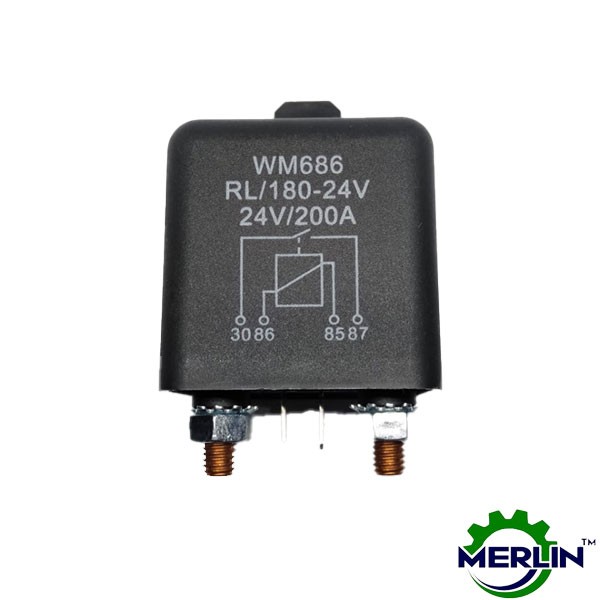

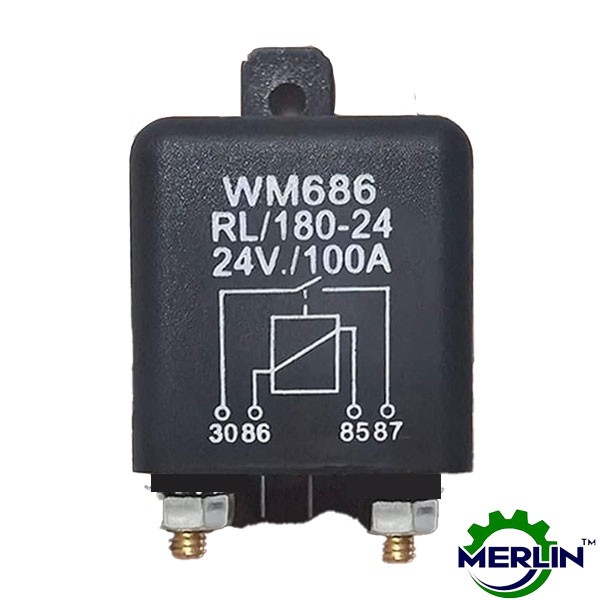

Relay RL 180 24V 200A | Heavy Duty Split Charge/Winch Relay

KEY FEATURES

• Model: ZL180 (WM686 / RL180) SPST NO
• Nominal Current Rating:
  • 100A Ith.; continuous load working current ≤ 75A
  • 120A Ith.; continuous load working current ≤ 90A
  • 200A Ith.; continuous load working current ≤ 150A
• Working Voltage:
  • 12V
  • 24V
  • 36V
  • 48V
• Coil Consumption:
  • Intermittent work: 4.8W (utilization factor ≤ 25%), typical application: motor starter, emergency brake, etc.
  • Continuous work: 2.4W (utilization factor ≤ 50%), typical application: hydraulic pump motor control, electric air compressor motor control, etc.
  The utilization factor (or use factor) is the ratio of the time that a piece of equipment is in use to the total time that it could be in use. In electrical engineering, utilization factor is the ratio of the maximum working time to the total time, for example the ratio 25% means that the ZL180 can maximally work 15 minutes (continuously or in average) in one hour.
• Contact Resistance: ≤ 50mΩ
• Isolation Resistance: ≥ 1.0MΩ
• Electric Life: 100,000 times
• Mechanic Life: 10,000,000 times
• Electrical Isolation:
  • Between open contacts: 2000VAC
  • Between coil contacts: 1000VAC
• Connector kit included:
  • control: wires with 1/4" (6.3mm) Spade Contactors
  • load: M6 lug terminal, rated for 50A (continuous load), suitable for 4 ~ 10 mm2 wire (Need lug crimping tool?
• Working Temperature: -25°C ~ +100°C
• Product Weight: 100 g
