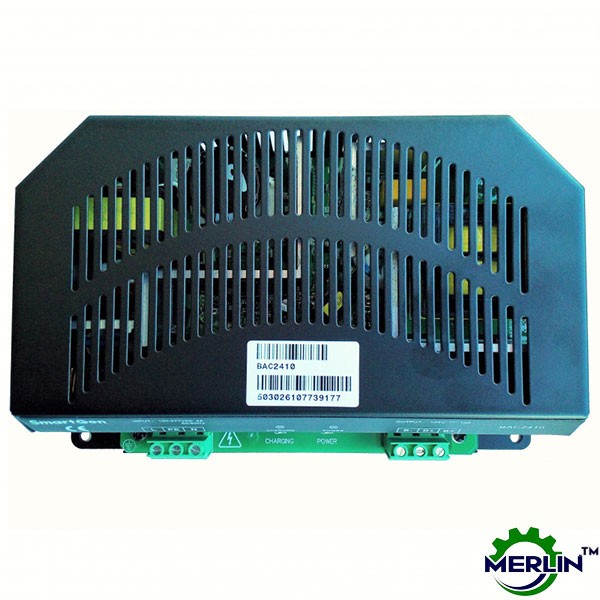

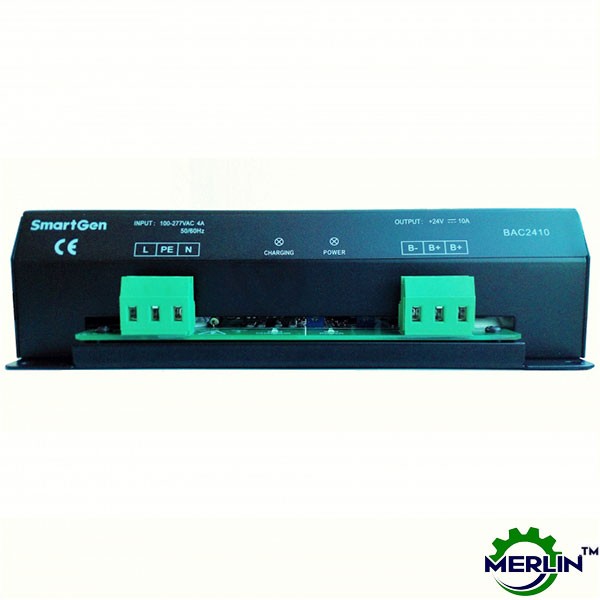

SmartGen BAC2410-24V | Generator Battery Charger

Technical Specifications:

• Battery Voltage: 24V
• Max. Charging Current: 10A
• Rated Input Voltage: (100~277)V
• Max. Input Voltage Range: (90~305)V
• AC Input Frequency: (50/60)Hz
• No-Load Power Consumption: <3W
• Power Factor Compensation: ●
• Operating Mode: Two segments
• Maximum Efficiency: 88%
• Operating Temperature: (-30~+55)℃
• Storage Temperature: (-40~+85)℃
• Net Weight: 1.15 kg
• Case Dimensions: 205.513155 mm

Product Overview: The BAC2410 float charger, equipped with modern power supply technology, is designed to meet the charging characteristics of lead-acid engine starter batteries. It serves as a long-term float charger for 12V lead-acid batteries.

Performance and Characteristics:

1. Features a switch power supply structure with a wide input voltage range, compact size, lightweight build, and high efficiency.
2. Implements an automatic two-stage charging process (initially constant current, followed by constant voltage) based on storage battery charging characteristics to prevent overcharging and significantly extend battery lifespan.
3. Includes a built-in Power Factor Correction (PFC) circuit, calibrating the power factor above 0.99.
4. Incorporates a built-in current protective circuit, offering effective protection against output overcurrent, short-circuit, or reverse connection. Fast blinking of the power or charge lamp serves as an alarm.
5. Designed for 24V storage batteries with a rated current of 10A.
6. Provides LED display indicators for power (Green light) and charging (Red light) status.
