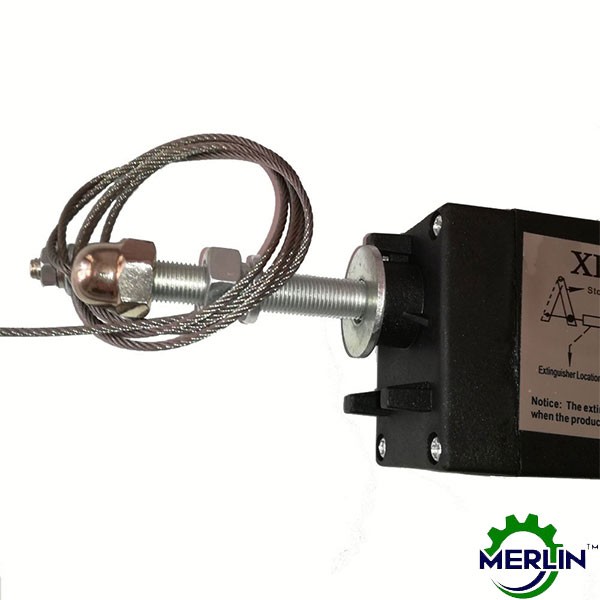

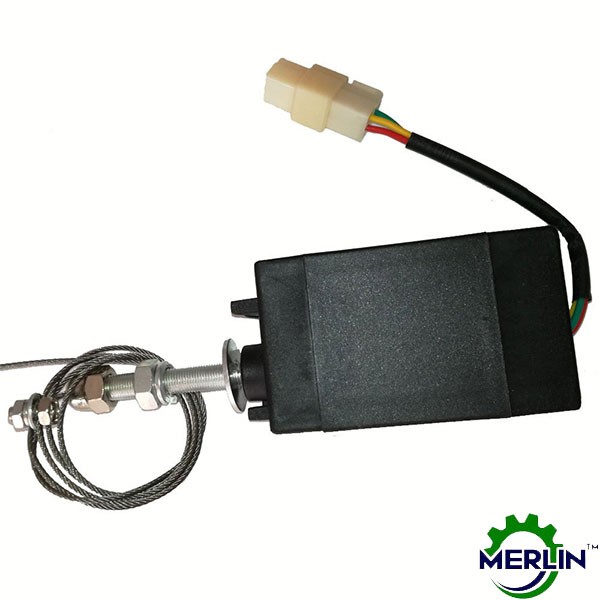

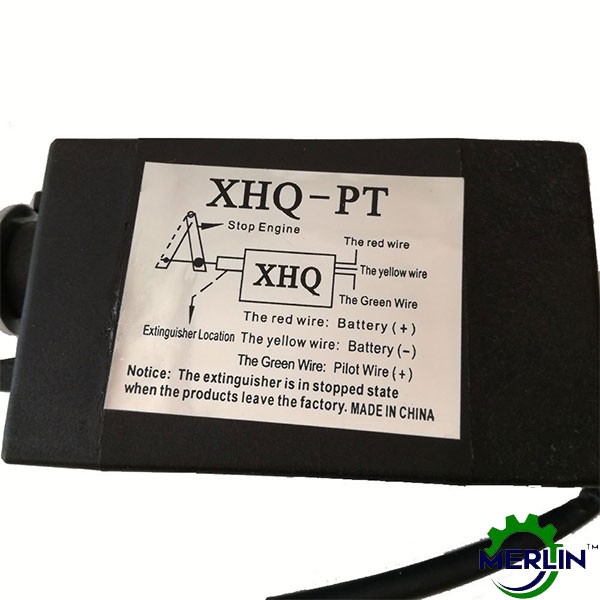

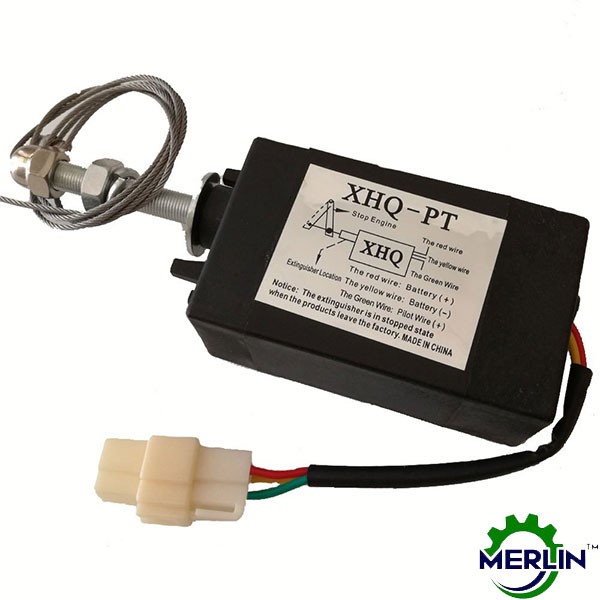

XHQPT 24V Power in Pull Type Stop Solenoid | Diesel Generator Engine Stop Solenoid

1. Voltage Rating: 12V/24VDC for your options, Operating Current: ≤0.5A

2. Life Span: ≥100000 times duty-cycle operation

3. Operating Time: ≤1.5S, Pull: 150N

4. Contact tyle: NO normally open and NC normally closed for your options

5. Usage: stop engine, controlling for various kinds of Diesel generators sets. This product is suitable for the shutdown control of various engines. The main motor applies force to the throttle lever of the diesel engine through the wire rope.

Product Description

1. Working Operation: 45mm±1mm, Working Tempereture: -40℃-105℃
2. High Strength overstriking steel wire
3. Automatic self-protection function
