Full Specification of AP 110 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: PERKINS
- Alternator: ECP 34-2S/4 C
- CONTROL SYSTEM: DSE 6120
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AP 110 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | PERKINS - 1104C-44TAG2 |
Alternator Made and Model | Mecc Alte - ECP 34-2S/4 C |
Control Panel Model | DSE 6120 |
Canopy | AK 40 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 110 | 88.00 | 100 | 80.00 | 158.78 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | PERKINS | |
Engine Model | 1104C-44TAG2 | |
NO. OF CYLINDERS AND BUILD | 4 cylinders - in line | |
BORE AND STROKE | mm | 105 X 127 |
TOTAL DISPLACEMENT | L | 4.4 |
Aspiration | Turbocharged and Air to Air Charge Cooled | |
COMPRESSION RATIO | 18.23:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 8 |
Standby Power (kW/HP) | 103/138,06 | |
Prime Power | 93,6/125,46 | |
Block Heater QTY | 1 | |
Block Heater Power (Watt) | 750 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Delphi Rotary Type | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 12 Vdc | |
Battery and Capacity (Qty/Ah) | 1x66 | |
Charge Alternator (A) | 65 | |
Cooling Method | Water Cooled | |
Coolant Capacity (engine only / with radiator) (lt) | /12.6 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 22.6 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 17.1 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 11.8 | |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECP 34-2S/4 C | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 100 |
DESIGN | Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DSR | |
Voltage Regulation | (+/-) | 1 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 349 | |
COOLING AIR (m³/min) | m3 | 29.2 |
SIZE and WEIGHT

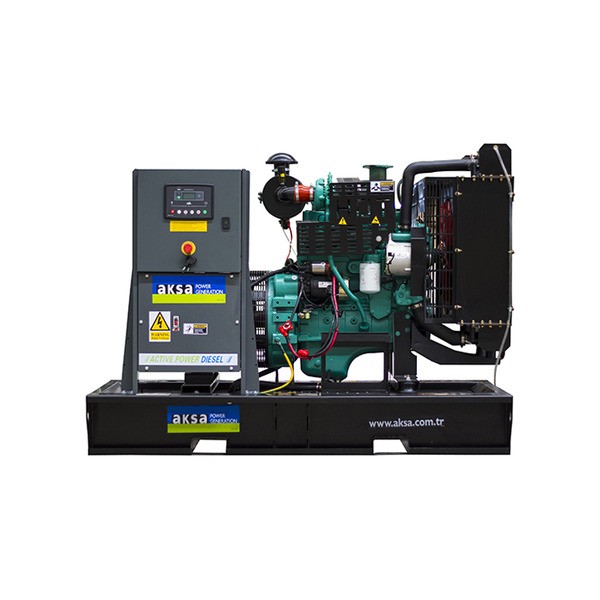

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
1120 | 2150 | 1050 | 1462 | 240 | |

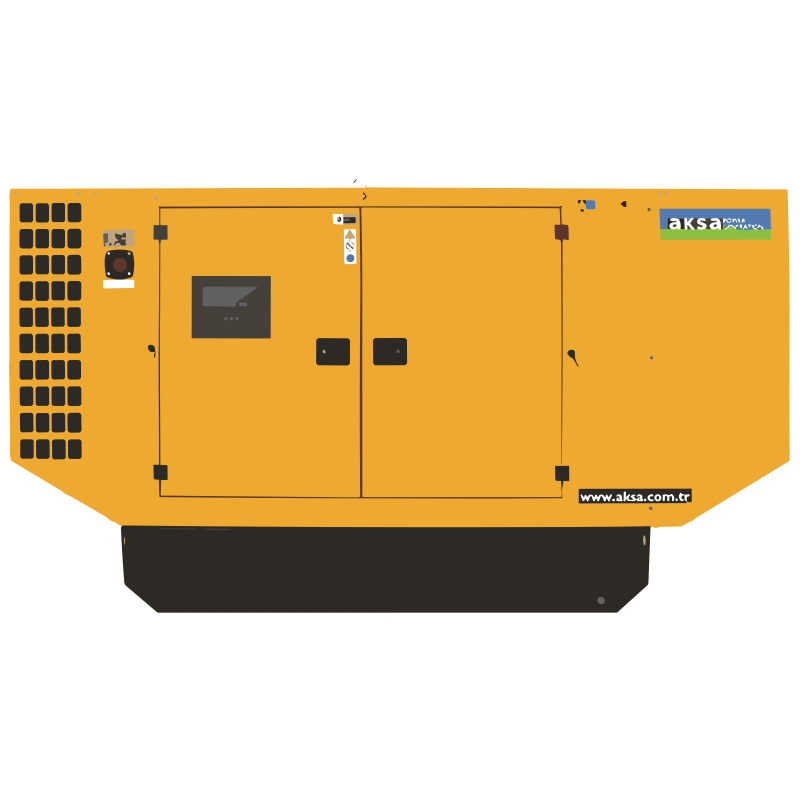

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 40 | 1470 | 3105 | 1113 | 1811 | 240 |
STANDARD SPECIFICATIONS
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
OPTIONAL EQUIPMENTS
ENGINE
• Fuel-Water Seperator Filter• Low water level alarm
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• Main line circuit breaker
CONTROL SYSTEM
• Remote annunciator panel• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
Power Unleashed: A Closer Look at the 110 KVA Aksa Diesel Generator (Aksa AP110)
In a world that relies heavily on electricity, having a dependable source of power is crucial. Whether you're facing unpredictable power outages, need a backup solution for emergencies, or require a reliable energy source for your business or project, the 110 KVA Aksa Diesel Generator, specifically the Aksa AP110 model, stands as a powerhouse in the world of generators. In this blog post, we'll delve into the features and benefits of the Aksa AP110, exploring why it's the go-to solution for uninterrupted power supply.
Powering Your World with 110 KVA
The Aksa AP110 is designed for one thing: delivering robust and consistent power. With an impressive output of 110 KVA (88 kW), this generator can handle a wide range of applications, from critical backup power for hospitals and data centers to continuous energy supply for industrial operations. Aksa's unwavering commitment to quality and performance makes the AP110 a reliable source of power.
Efficiency that Saves
Efficiency and fuel economy are paramount when considering a diesel generator. The Aksa AP110 excels in this area. Its advanced engine technology ensures it makes the most of every drop of fuel, making it an eco-friendly and cost-effective choice for your power needs. Whether you're looking to reduce operational costs or minimize your environmental footprint, the AP110 has you covered.
User-Friendly Operation
The Aksa AP110 is designed with the end user in mind. It features an intuitive interface for easy operation and comes equipped with advanced functionalities, including automatic startup and shutdown. You can also monitor and control the generator remotely, ensuring that your power needs are met without manual intervention.
Quiet and Environmentally Conscious
One common concern with diesel generators is noise pollution. The Aksa AP110 addresses this issue with advanced soundproofing technology, reducing operational noise and making it suitable for both urban and remote settings. Additionally, it complies with environmental standards and emissions regulations, showcasing Aksa's commitment to environmental responsibility.
Versatility to Meet All Needs
The Aksa AP110 is highly adaptable, making it suitable for a wide range of applications. Whether you need standby power, prime power, or continuous power, this generator is up to the task. It's the perfect solution for construction sites, remote off-grid locations, residential backup power, and a multitude of industrial purposes.
Simplified Maintenance
Regular maintenance is key to keeping your generator in peak condition. The Aksa AP110 simplifies this with easy access to critical components, reducing downtime and ensuring your generator remains in top working order.
Conclusion
The 110 KVA Aksa Diesel Generator, Aksa AP110, is a testament to Aksa's unwavering dedication to quality and reliability. Whether you're dealing with unpredictable power outages, need an emergency backup source, or require a steadfast power supply for your business, the AP110 is engineered to meet your needs. With its efficiency, user-friendly operation, minimal noise, versatility, and simplified maintenance, the Aksa AP110 is the ideal choice for ensuring uninterrupted power supply. Trust in the AP110, and you can focus on what you do best while your power supply remains unwavering and dependable.
