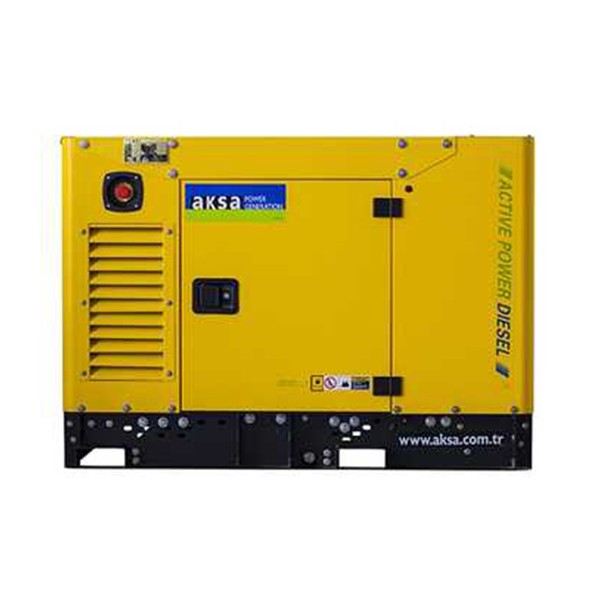

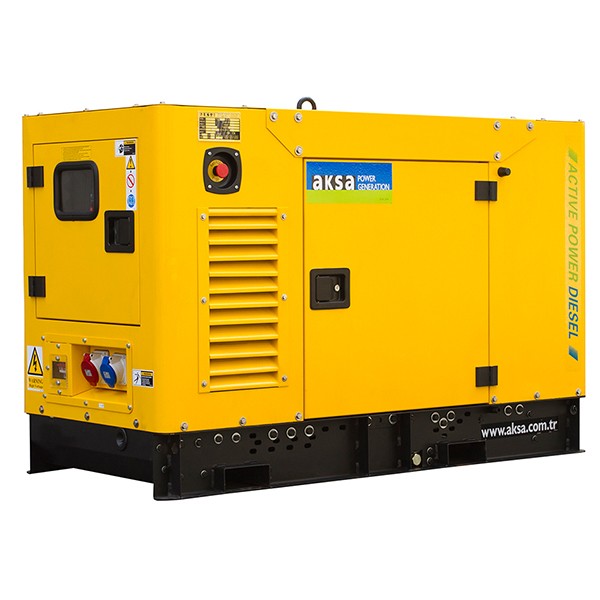

APD17A Diesel Generator

12-15 Days Quick Delivery
Cash on Delivery Facility
Online Payment Options
No Cost 12 Months EMI
Sales & Parts Warranty
100% Genuine Products
24/7 Customer Support

EMI Available

Model: APD17A

Brand: AKSA

680000.00 680000.00

Diesel Generator Price In Bangladesh

Product: AKSA
Alternator: AK 113
CONTROL SYSTEM: DSE 6120

Introduction

Aksa power generation systems offer peak performance and unwavering reliability for various applications, including stationary standby, prime power, and continuous duty. Each generator set is meticulously crafted in our factory and rigorously tested during production to ensure exceptional quality.

Certificate

TS ISO 8528
TS ISO 9001-2008
CE
SZUTEST
2000/14/EC

General Characteristics

Model Name	APD 17 A
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA - A4CRX21
Alternator Made and Model	Aksa - AK 113
Control Panel Model	DSE 6120
Canopy	ACP 1A

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
VOLTAGE	kVA	kW	kVA	kW	Standby Amper
400/231	17	13.60	16	12.80	24.54

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA
Engine Model		A4CRX21
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	85 X 95
TOTAL DISPLACEMENT	L	2.156
Aspiration		Naturally Aspirated
COMPRESSION RATIO		18:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	5.5
Standby Power (kW/HP)		16.7/22.4
Prime Power		15.2/20.4
Block Heater Power (Watt)		500
Fuel Type		Diesel
Injection Type and System		Direct
Type of Fuel Pump		Direct
Governor System		Mechanic
Operating Voltage (Vdc)		12Vdc
Battery and Capacity (Qty/Ah)		1x36
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)		112.64
Coolant Capacity (engine only / with radiator) (lt)		5.5/16.8
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)		4.59
Fuel Cons. Prime With %75 Load (lt/hr)		3.54
Fuel Cons. Prime With %50 Load (lt/hr)		2.6

ALTERNATOR SPECIFICATIONS

Manufacturer		Aksa
Alternator Made and Model		AK 113
Frequency (Hz)	Hz	50
Power (kVA)	kVA	16,3
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		SX460
Voltage Regulation	(+/-)	1,5%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		109
COOLING AIR (m³/min)	m3	4,26

SIZE and WEIGHT

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	405	1400	760	912
CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 1A	535	1672	823	873	32

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
