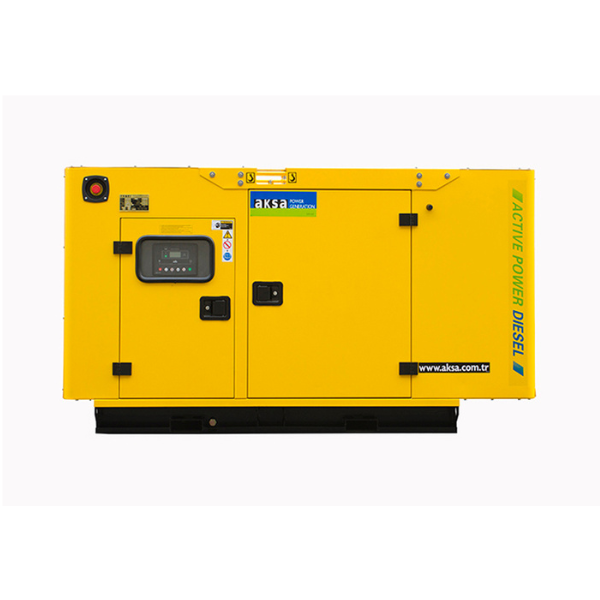

APD25A - Diesel Generating Sets

EMI Available

Model: APD25A

Brand: AKSA

0.00 0.00

Diesel Generating Sets for Bangladesh

Product: AKSA
Alternator: AK 218
CONTROL SYSTEM: DSE 6120

Aksa's power generation systems deliver peak performance and unwavering reliability, catering to stationary standby, prime power, and continuous duty applications. Every generator set is meticulously crafted in our factory and undergoes rigorous production testing to ensure top-notch quality.

Certificate

TS ISO 8528
TS ISO 9001-2008
CE
SZUTEST
2000/14/EC

General Characteristics

Model Name	APD 25 A
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA - A4CRX27
Alternator Made and Model	Aksa - AK 218
Control Panel Model	DSE 6120
Canopy	ACP 3A

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
VOLTAGE	kVA	kW	kVA	kW	Standby Amper
400/231	25	20	22	17.60	36.09

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA
Engine Model		A4CRX27
NO. OF CYLINDERS AND BUILD		4 cylinders - in line
BORE AND STROKE	mm	90 X 105
TOTAL DISPLACEMENT	L	2.672
Aspiration		Naturally Aspirated
COMPRESSION RATIO		18:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	6
Standby Power (kW/HP)		24.4/32.7
Prime Power		22.2/29.8
Block Heater Power (Watt)		500
Fuel Type		Diesel
Injection Type and System		Direct
Type of Fuel Pump		Direct
Governor System		Mechanic
Operating Voltage (Vdc)		12Vdc
Battery and Capacity (Qty/Ah)		1x36
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)		84.7
Coolant Capacity (engine only / with radiator) (lt)		7/15.1
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)		6.43
Fuel Cons. Prime With %75 Load (lt/hr)		5.77
Fuel Cons. Prime With %50 Load (lt/hr)		4.81

ALTERNATOR SPECIFICATIONS

Manufacturer		Aksa
Alternator Made and Model		AK 218
Frequency (Hz)	Hz	50
Power (kVA)	kVA	22,5
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		SX460
Voltage Regulation	(+/-)	1,5%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		128
COOLING AIR (m³/min)	m3	5,7

SIZE and WEIGHT

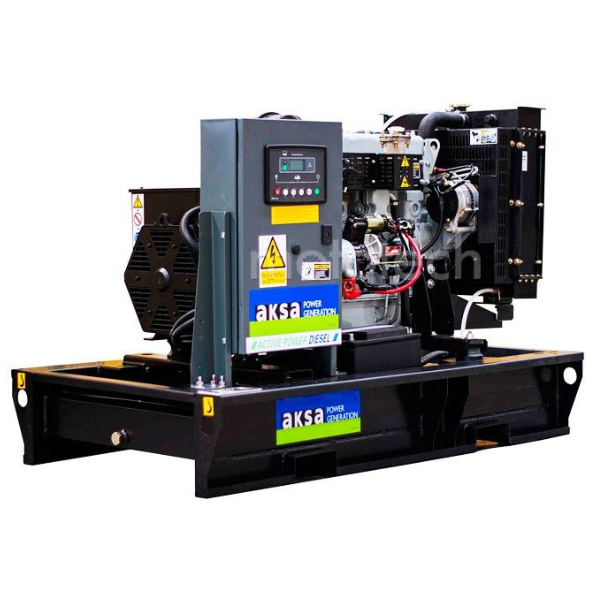

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	635	1696	892	1003

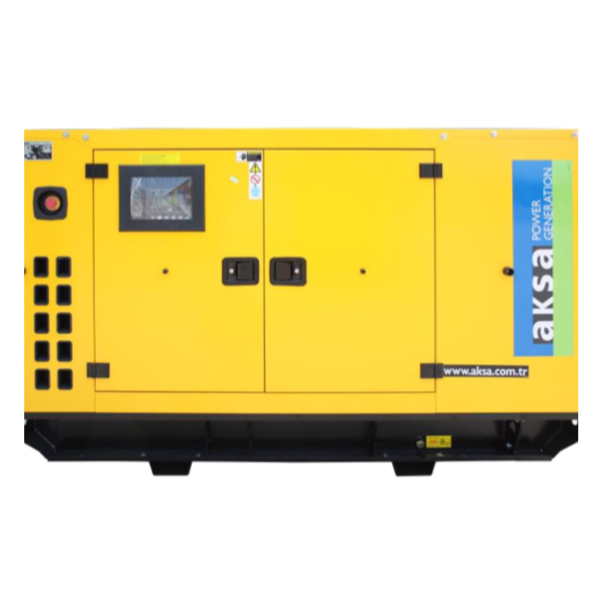

CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 3A	810	1980	950	1128	60

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

Remote Radiator Cooling
Fuel-Water Seperator Filter

CONTROL SYSTEM

Charge Ammeter

TRANSFER SWITCH

Three Pole Contactor
Four Pole Contactor
Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

Main Fuel Tank
Automatic or manual fuel filling system
Manual oil drain pump
Low and high fuel level alarm
Residential silencer
Enclosure: weater protective or sound attenuated
Trailer
Tool kit for maintenance
