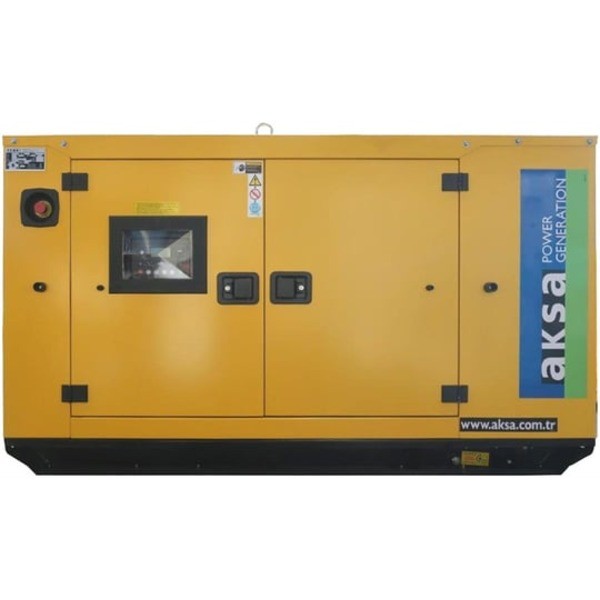

APD44A - Diesel Generating Sets

EMI Available

Model: APD44A

Brand: AKSA

0.00 0.00

Diesel Generating Sets in Bangladesh

Product: AKSA
Alternator: AK 232
CONTROL SYSTEM: DSE 6120

Aksa's power generation system is renowned for delivering peak performance and unmatched reliability in applications like stationary standby, prime power, and continuous duty. Each generator set is meticulously constructed in our factory and undergoes rigorous production testing to ensure top-tier quality.

Certificate

TS ISO 8528
TS ISO 9001-2008
CE
SZUTEST
2000/14/EC

General Characteristics

Model Name	APD 44 A
Frequency (Hz)	50
Fuel Type	Diesel
Engine Made and Model	AKSA - A3CRX32T
Alternator Made and Model	Aksa - AK 232
Control Panel Model	DSE 6120
Canopy	ACP 4

3 Phase, 50 Hz, PF 0.8

VOLTAGE	STANDBY RATING (ESP)		PRIME RATING (PRP)		Standby Amper
VOLTAGE	kVA	kW	kVA	kW	Standby Amper
400/231	44	35.20	40	32.00	63.51

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.

ENGINE SPECIFICATIONS

Engine		AKSA
Engine Model		A3CRX32T
NO. OF CYLINDERS AND BUILD		3 cylinders - in line
BORE AND STROKE	mm	105 X 120
TOTAL DISPLACEMENT	L	3,12
Aspiration		Turbo Charged
COMPRESSION RATIO		17:1
RATED SPEED (RPM)	d/dk	1500
OIL CAPACITY	L	11
Standby Power (kW/HP)		44/59.82
Prime Power		39/53.02
Block Heater Power (Watt)		500
Fuel Type		Diesel
Injection Type and System		Direct
Type of Fuel Pump		3JI402 pump
Governor System		Mechanic
Operating Voltage (Vdc)		12 Vdc
Battery and Capacity (Qty/Ah)		1x54
Cooling Method		Water Cooled
Cooling Fan Air Flow (m3/min)		120
Coolant Capacity (engine only / with radiator) (lt)		6/16
Air Filter		Dry Type
Fuel Cons. Prime With %100 Load (lt/hr)		10.3

ALTERNATOR SPECIFICATIONS

Manufacturer		Aksa
Alternator Made and Model		AK 232
Frequency (Hz)	Hz	50
Power (kVA)	kVA	40
DESIGN		Brushless
VOLTAGE	V	400
Phase		3
A.V.R.		AS460
Voltage Regulation	(+/-)	1,5%
Insulation System		H
Protection		IP22
Rated Power Factor		0.8
WEIGHT COMP. GENERATOR (Kg)		226
COOLING AIR (m³/min)	m³	9

SIZE and WEIGHT

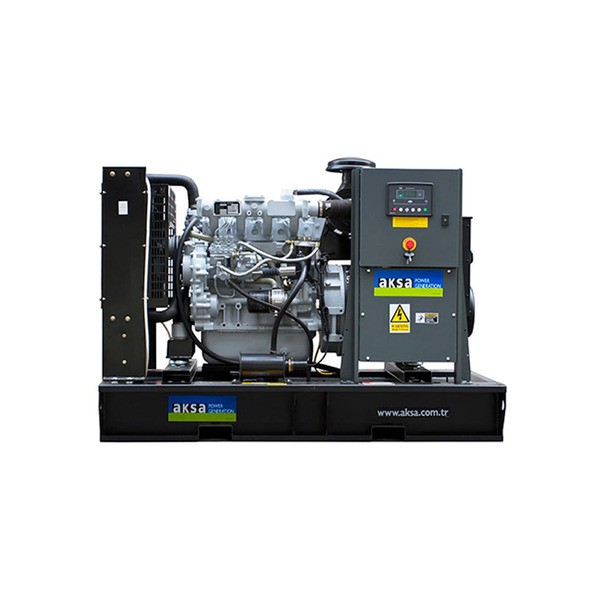

Open Type	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
	-	-	-	-
CANOPY	DRY WEIGHT (kg.) (kg.)	LENGTH (mm.)	WIDTH (mm.)	HEIGHT (mm.)	TANK CAPACITY (lt.) (Lt.)
ACP 4	940	2094	950	1287	76

STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

Remote Radiator Cooling
Fuel-Water Seperator Filter
Oil heater

ALTERNATOR

Anti-Condensation Heater
Main line circuit breaker

CONTROL SYSTEM

Charge Ammeter

TRANSFER SWITCH

Three Pole Contactor
Four Pole Contactor
Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

Main Fuel Tank
Automatic or manual fuel filling system
Enclosure: weater protective or sound attenuated
Trailer
Tool kit for maintenance
