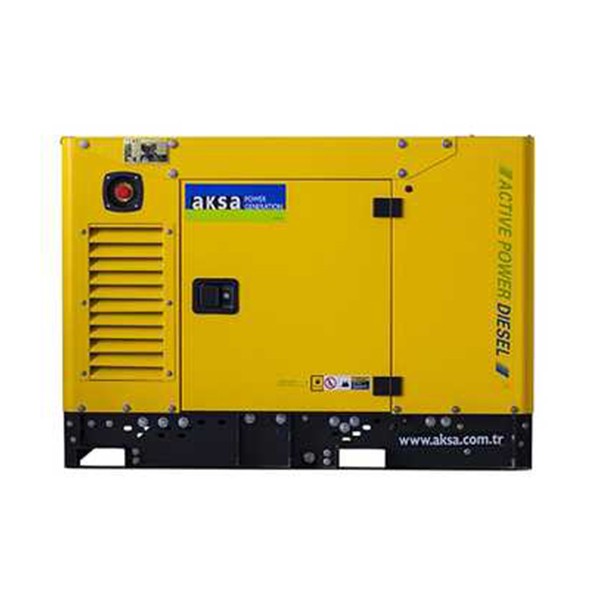

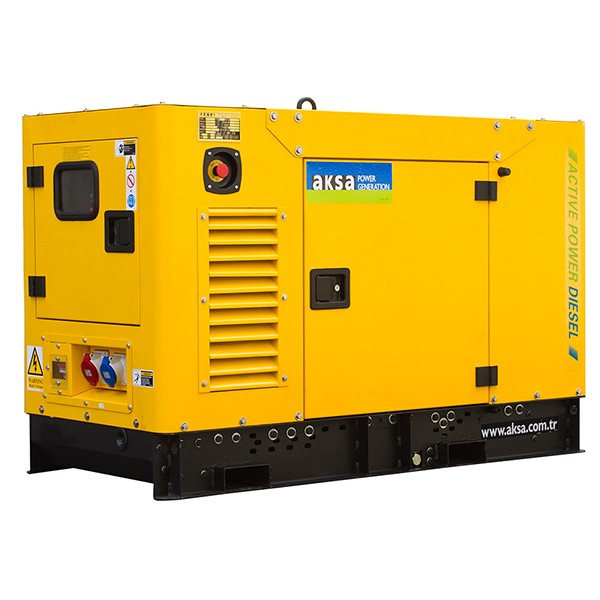

Diesel Generating Sets in Bangladesh
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
|
Model Name |
APD 13 A |
|
Frequency (Hz) |
50 |
|
Fuel Type |
Diesel |
|
Engine Made and Model |
AKSA - A4CRX19 |
|
Alternator Made and Model |
Aksa - AK 109 |
|
Control Panel Model |
DSE 6120 |
|
Canopy |
ACP 1A |
3 Phase, 50 Hz, PF 0.8
|
VOLTAGE |
STANDBY RATING (ESP) |
PRIME RATING (PRP) |
Standby Amper |
||
|
400/231 |
kVA |
kW |
kVA |
kW |
17.32 |
|
12 |
9.60 |
11 |
8.80 |
||
STANDBY RATING (ESP) : Applicable
for supplying power to varying electrical load for the duration of power
interruption of a reliable utility source. ESP is in accordance with ISO
8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical
load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload
capability is available for a period of 1 hour within 12-hour perod of
operation.
ENGINE SPECIFICATIONS
|
Engine |
AKSA |
|
|
Engine Model |
A4CRX19 |
|
|
NO. OF CYLINDERS AND BUILD |
4 cylinders - in line |
|
|
BORE AND STROKE |
mm |
80 X 90 |
|
TOTAL DISPLACEMENT |
L |
1809 |
|
Aspiration |
Naturally Aspirated |
|
|
COMPRESSION RATIO |
18:1 |
|
|
RATED SPEED (RPM) |
d/dk |
1500 |
|
OIL CAPACITY |
L |
6 |
|
Standby Power (kW/HP) |
13.7/18.4 |
|
|
Prime Power |
12.5/16.7 |
|
|
Block Heater Power (Watt) |
500 |
|
|
Fuel Type |
Diesel |
|
|
Injection Type and System |
Direct |
|
|
Type of Fuel Pump |
Direct |
|
|
Governor System |
Mechanic |
|
|
Operating Voltage (Vdc) |
12 Vdc |
|
|
Battery and Capacity (Qty/Ah) |
1x36 |
|
|
Cooling Method |
Water Cooled |
|
|
Cooling Fan Air Flow (m3/min) |
112.64 |
|
|
Coolant Capacity (engine only / with radiator)
(lt) |
5/16.3 |
|
|
Air Filter |
Dry Type |
|
|
Fuel Cons. Prime With %100 Load (lt/hr) |
4.19 |
|
ALTERNATOR SPECIFICATIONS
Manufacturer | Aksa | |
Alternator Made and Model | AK 109 | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 11,3 |
DESIGN | Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | SX460 | |
Voltage Regulation | (+/-) | 1,5% |
Insulation System | H | |
Protection | IP22 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 95 | |
COOLING AIR (m³/min) | m3 | 4,26 |
SIZE and WEIGHT
Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
760 | 1400 | 760 | 912 | ||
CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
ACP 1A | 515 | 1672 | 823 | 873 | 32 |
STANDARD SPECIFICATIONS
- Radiator with mechanical fan
- Protective grille for rotating and hot parts
- Electric starter and charge alternator
- Starting battery (with lead acid) including rack and cables
- Engine coolant heater
- Base frame design incorporates an integral fuel tank and anti-vibration isolators
- Flexible fuel connection hoses
- Single bearing, class H alternator
- Industrial exhaust silencer and steel bellows supplied separately(for open sets)
- Static battery charger
- Manual for application and installation
OPTIONAL EQUIPMENTS
ENGINE
- Remote Radiator Cooling
- Fuel-Water Separator Filter
ALTERNATOR
- Anti-Condensation Heater
CONTROL SYSTEM
- Charge Ammeter
TRANSFER SWITCH
- Three Pole Contactor
- Four Pole Contactor
- Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
- Main Fuel Tank
- Automatic or manual fuel filling system
- Manual oil drain pump
- Residential silencer
- Enclosure: weater protective or sound attenuated
- Trailer
- Tool kit for maintenance
Final Words
In conclusion, the APD 13 A Diesel Generating Sets from Aksa offer a dependable and efficient solution for all your power generation needs. With a commitment to quality, performance, and reliability, Aksa sets the standard in the industry. Don't compromise on power – choose APD 13 A and experience uninterrupted energy supply you can rely on. Trust in Aksa for excellence in power generation.
