APD35A - Diesel Generating Sets
EMI Available
Model: APD35A
Brand: AKSA
0.00 0.00

Diesel Generating Sets in Bangladesh

  • Product: AKSA
  • Alternator: AK 228
  • CONTROL SYSTEM: DSE 6120

The Aksa power generation system ensures peak performance and unwavering reliability in stationary standby, prime power, and continuous duty applications. Every generator set is meticulously crafted in our factory and undergoes thorough production testing to ensure top-quality performance.

Certificate

  •   TS ISO 8528
  •   TS ISO 9001-2008
  •   CE
  •   SZUTEST
  •   2000/14/EC

General Characteristics

Model Name

APD 35 A

Frequency (Hz)

50

Fuel Type

Diesel

Engine Made and Model

AKSA - A4CRX25T

Alternator Made and Model

Aksa - AK 228

Control Panel Model

DSE 6120

Canopy

ACP 3A



3 Phase, 50 Hz, PF 0.8

VOLTAGE

STANDBY RATING (ESP)

PRIME RATING (PRP)

Standby Amper

kVA

kW

kVA

kW

400/231

35

28.00

32

25.60

50.52


STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.


ENGINE SPECIFICATIONS

Engine

AKSA

Engine Model

A4CRX25T

NO. OF CYLINDERS AND BUILD

4 cylinders - in line

BORE AND STROKE

mm

90 X 100

TOTAL DISPLACEMENT

L

2.54

Aspiration

Turbo Charged

COMPRESSION RATIO

18:1

RATED SPEED (RPM)

d/dk

1500

OIL CAPACITY

L

8,5

Standby Power (kW/HP)

33/44.8

Prime Power

30/40.7

Block Heater Power (Watt)

500

Fuel Type

Diesel

Injection Type and System

Direct

Type of Fuel Pump

Direct

Governor System

Mechanic

Operating Voltage (Vdc)

12Vdc

Battery and Capacity (Qty/Ah)

1x54

Cooling Method

Water Cooled

Cooling Fan Air Flow (m3/min)

180

Coolant Capacity (engine only / with radiator) (lt)

6/20

Air Filter

Dry Type

Fuel Cons. Prime With %100 Load (lt/hr)

8



ALTERNATOR SPECIFICATIONS

Manufacturer

Aksa

Alternator Made and Model

AK 228

Frequency (Hz)

Hz

50

Power (kVA)

kVA

35

DESIGN

  4 Pole,  Brushless

VOLTAGE

V

400

Phase

3

A.V.R.

FD460

Voltage Regulation

(+/-)

1%

Insulation System

H

Protection

IP23

Rated Power Factor

0.8

WEIGHT COMP. GENERATOR (Kg)

167.5

COOLING AIR (m³/min)

m3

12.96


SIZE and WEIGHT

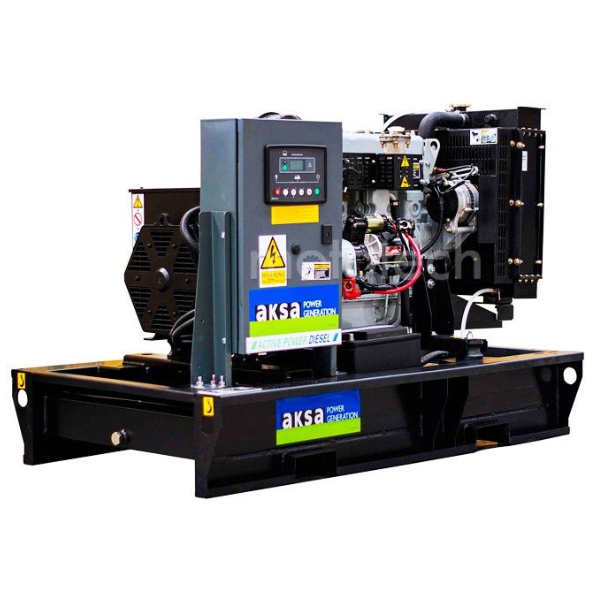

Open Type

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

-

-

-

-

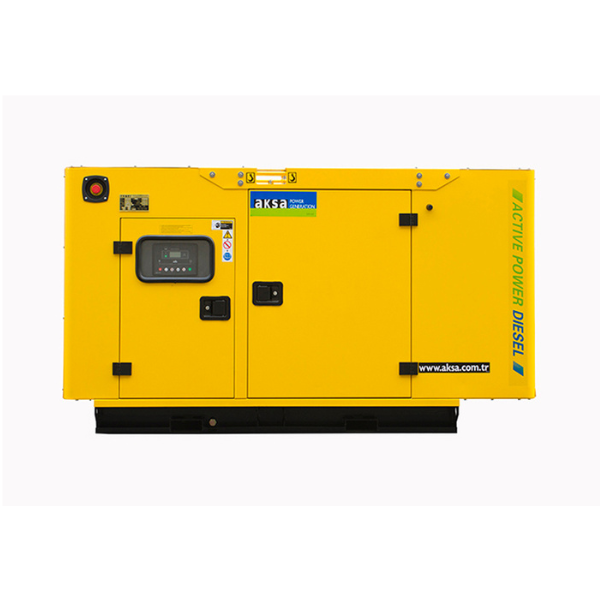

CANOPY

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

ACP 3A

810

1980

950

1128

60


STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE

  • Remote Radiator Cooling
  • Fuel-Water Seperator Filter

ALTERNATOR

  • Anti-Condensation Heater
  • Main line circuit breaker

CONTROL SYSTEM

  • Charge Ammeter

TRANSFER SWITCH

  • Three Pole Contactor
  • Four Pole Contactor
  • Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

  • Main Fuel Tank
  • Automatic or manual fuel filling system
  • Enclosure: weater protective or sound attenuated
  • Trailer
  • Tool kit for maintenance
