Full Specification of AC 1410 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: CUMMINS
- Alternator: ECO 43-2L/4 A
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AC 1410 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | CUMMINS - KTA50-G3 |
Alternator Made and Model | Mecc Alte - ECO 43-2L/4 A |
Control Panel Model | DSE 7320 |
Canopy | AK 98 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 1410 | 1128.0 | 1280 | 1024.0 | 2035.22 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | CUMMINS | |
Engine Model | KTA50-G3 | |
NO. OF CYLINDERS AND BUILD | 16 cylinders - V type | |
BORE AND STROKE | mm | 159 X 159 |
TOTAL DISPLACEMENT | L | 50.3 |
Aspiration | Turbo Charged and AfterCooled | |
COMPRESSION RATIO | 13.9:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 177 |
Standby Power (kW/HP) | 1227/1645 | |
Prime Power | 1097/1470 | |
Block Heater QTY | 2 | |
Block Heater Power (Watt) | 3000 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Cummins PT | |
Governor System | Electronic | |
Operating Voltage (Vdc) | 24 Vdc | |
Battery and Capacity (Qty/Ah) | 4x143 | |
Charge Alternator (A) | 35 | |
Cooling Method | Water Cooled | |
Cooling Fan Air Flow (m3/min) | 1770 | |
Coolant Capacity (engine only / with radiator) (lt) | 161/415 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 261 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 199 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 139 |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECO 43-2L/4 A | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 1300 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DER1 | |
Voltage Regulation | (+/-) | 0.5 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 2660 | |
COOLING AIR (m³/min) | m3 | 90 |

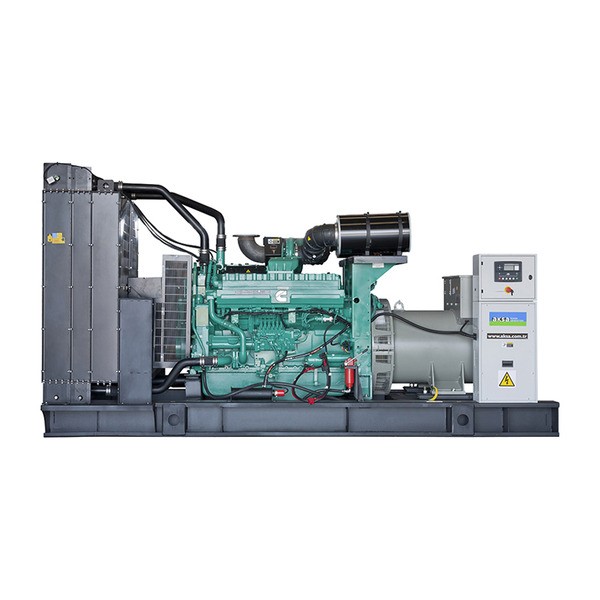

SIZE and WEIGHT
Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
9900 | 4871 | 1940 | 2405 | 2000 | |

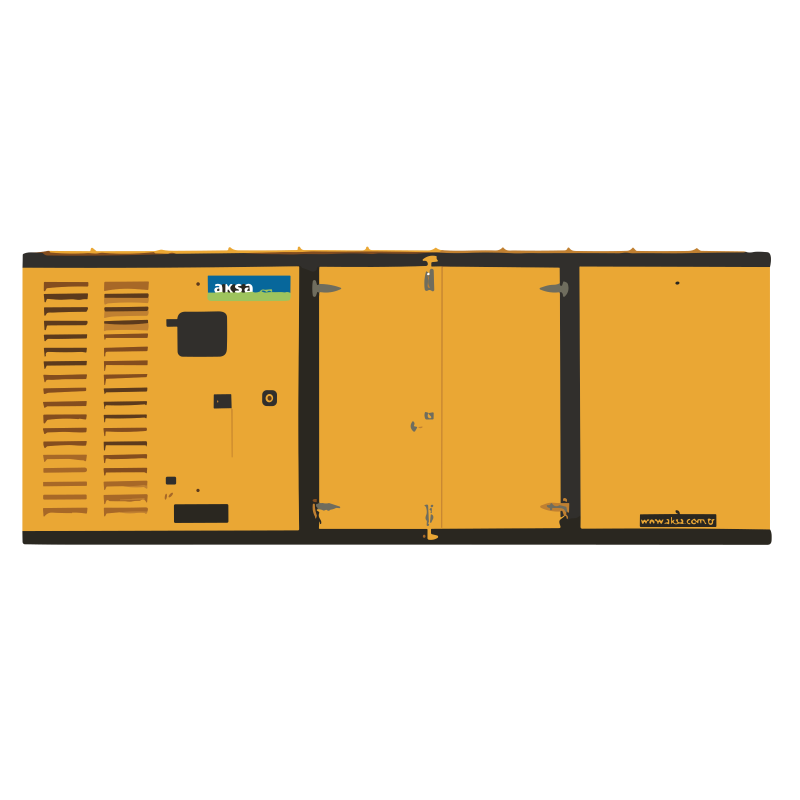

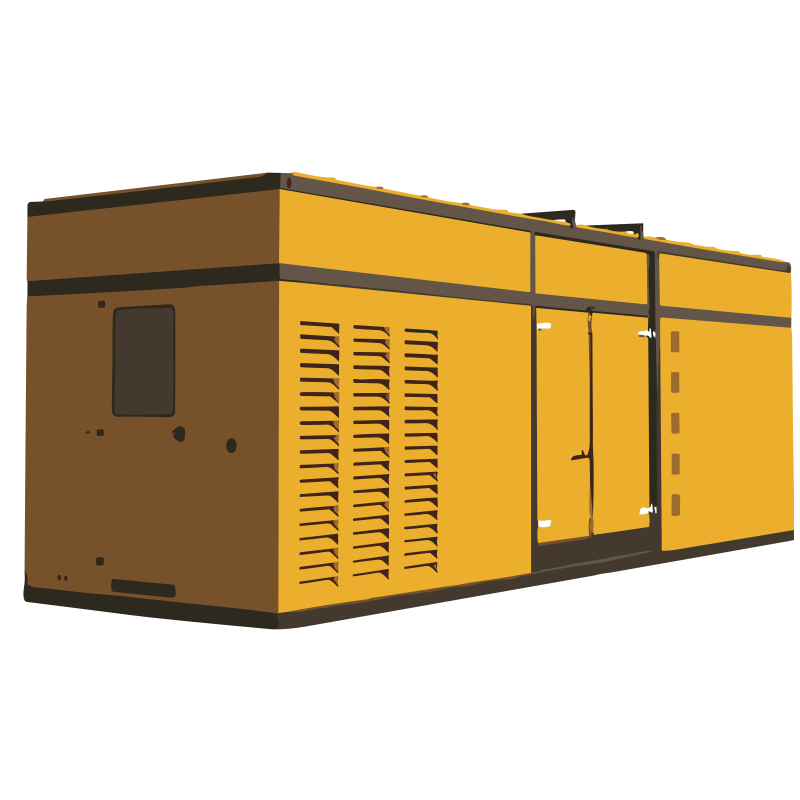

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 98 | 14000 | 9000 | 2270 | 2581 | 1900 |
STANDARD SPECIFICATIONS
Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5
OPTIONAL EQUIPMENTS
ENGINE
• Remote Radiator Cooling• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker
CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C
AC1410 Diesel Generator: Unmatched Power for Critical Applications
In a world where a consistent and robust power supply is paramount, the AC1410 Diesel Generator by Aksa, with its commanding 1410 KVA capacity, stands as an emblem of unwavering power. Designed for demanding applications, this generator is a stalwart source of electricity. In this comprehensive blog, we will delve into the various facets of the AC1410, from its key features to applications and maintenance tips.
Key Features
- Raw Power Unleashed:
- The AC1410 Diesel Generator is a behemoth in the power generation arena, delivering an astonishing 1410 KVA capacity. It is tailor-made for applications that require substantial and uninterrupted electricity, from industrial plants to data centers and beyond.
- Fuel Efficiency at Its Finest:
- Fueled by a dependable diesel engine, the AC1410 offers not just power but also efficiency. Its fuel economy ensures cost-effective operation, making it an attractive choice for businesses looking to manage their operational expenses.
- Reliability Redefined:
- When the stakes are high and power outages are not an option, the AC1410 rises to the challenge. It is engineered for utmost reliability, boasting premium components that guarantee consistent power, even during extended outages.
- Versatility Beyond Compare:
- The AC1410 adapts seamlessly to a wide array of environments and applications. It can serve as a primary power source, delivering electricity to remote construction sites or critical backup power for hospitals, data centers, and more.
- Advanced Control and Monitoring:
- The digital control panel is equipped with user-friendly features, allowing for remote monitoring, automated testing, and seamless integration with existing infrastructure. This puts you in control of your power supply, regardless of your location.
Applications
The AC1410 Diesel Generator finds its place in numerous sectors, including:
- Large-scale manufacturing and industrial complexes
- Data centers and IT facilities
- Healthcare and medical facilities
- Telecommunications and data networks
- Mining and mineral extraction operations
- Construction sites and infrastructure projects
- Agricultural operations
- Large events and entertainment venues
Maintenance
Regular maintenance is essential to ensure the generator's optimal performance. Consider these maintenance tips for the AC1410:
- Scheduled oil changes and filter replacements
- Routine checks of the cooling system and radiator
- Inspections of electrical connections and fuel lines
- Monitoring the control panel for any alarms or warnings
Safety Precautions
Safety is a paramount consideration when operating the AC1410 generator. Abide by these safety guidelines:
- Ensure proper ventilation to prevent exhaust accumulation in the generator room.
- Regularly inspect and clean the generator and its surroundings.
- Ensure that operators are adequately trained to handle the generator safely.
Environmental Compliance
The AC1410 Diesel Generator complies with emissions and environmental regulations, affirming its commitment to eco-friendliness.
Conclusion
The AC1410 Diesel Generator is more than a power source; it is a lifeline for industries and services that rely on unwavering electricity. With its remarkable features, adaptability, and reliability, it is the embodiment of a comprehensive power solution for the modern world. For the latest information on the AC1410 and its specifications, consult with Aksa or an authorized distributor.
