Full Specification of AP 150 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: PERKINS
- Alternator: ECP 34-2M/4 C
- CONTROL SYSTEM: DSE 6120
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
General Characteristics
Model Name | AP 150 |
Frequency (Hz) | 50 |
Fuel Type | Diesel |
Engine Made and Model | PERKINS - 1106A-70TG1 |
Alternator Made and Model | Mecc Alte - ECP 34-2M/4 C |
Control Panel Model | DSE 6120 |
Canopy | AK 49 |
3 Phase, 50 Hz, PF 0.8
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
kVA | kW | kVA | kW | ||
400/231 | 150 | 120.0 | 135 | 108.0 | 216.51 |
STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
ENGINE SPECIFICATIONS
Engine | PERKINS | |
Engine Model | 1106A-70TG1 | |
NO. OF CYLINDERS AND BUILD | 6 cylinders - in line | |
BORE AND STROKE | mm | 105 X 135 |
TOTAL DISPLACEMENT | L | 7.01 |
Aspiration | Turbo Charged | |
COMPRESSION RATIO | 18.2:1 | |
RATED SPEED (RPM) | d/dk | 1500 |
OIL CAPACITY | L | 18 |
Standby Power (kW/HP) | 135.8/182,03 | |
Prime Power | 122.7/164,47 | |
Block Heater QTY | 1 | |
Block Heater Power (Watt) | 1500 | |
Fuel Type | Diesel | |
Injection Type and System | Direct | |
Type of Fuel Pump | Delphi DPG Rotary Type | |
Governor System | Mechanic | |
Operating Voltage (Vdc) | 12 Vdc | |
Battery and Capacity (Qty/Ah) | 1x85 | |
Charge Alternator (A) | 65 | |
Cooling Method | Water Cooled | |
Coolant Capacity (engine only / with radiator) (lt) | /21 | |
Air Filter | Dry Type | |
Fuel Cons. Prime With %100 Load (lt/hr) | 30.3 | |
Fuel Cons. Prime With %75 Load (lt/hr) | 22.7 | |
Fuel Cons. Prime With %50 Load (lt/hr) | 15.9 | |
ALTERNATOR SPECIFICATIONS
Manufacturer | Mecc Alte | |
Alternator Made and Model | ECP 34-2M/4 C | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 135 |
DESIGN | 4 Pole, Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DSR | |
Voltage Regulation | (+/-) | 1 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 388 | |
COOLING AIR (m³/min) | m3 | 29.2 |
SIZE and WEIGHT

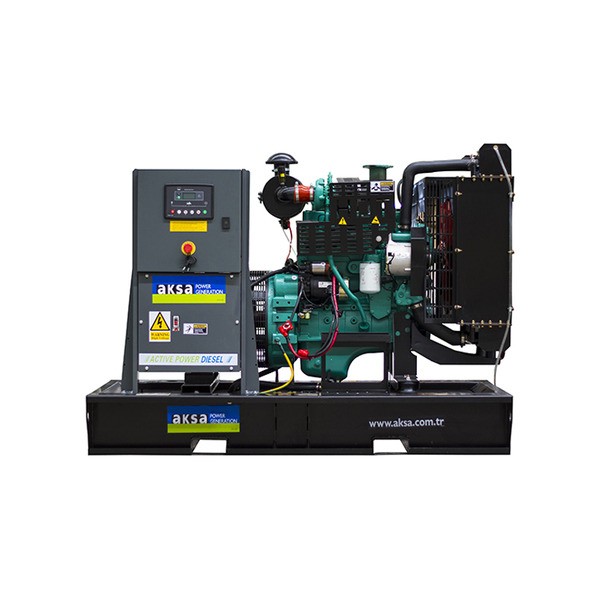

Open Type | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
1260 | 2300 | 1080 | 1568 | 340 | |

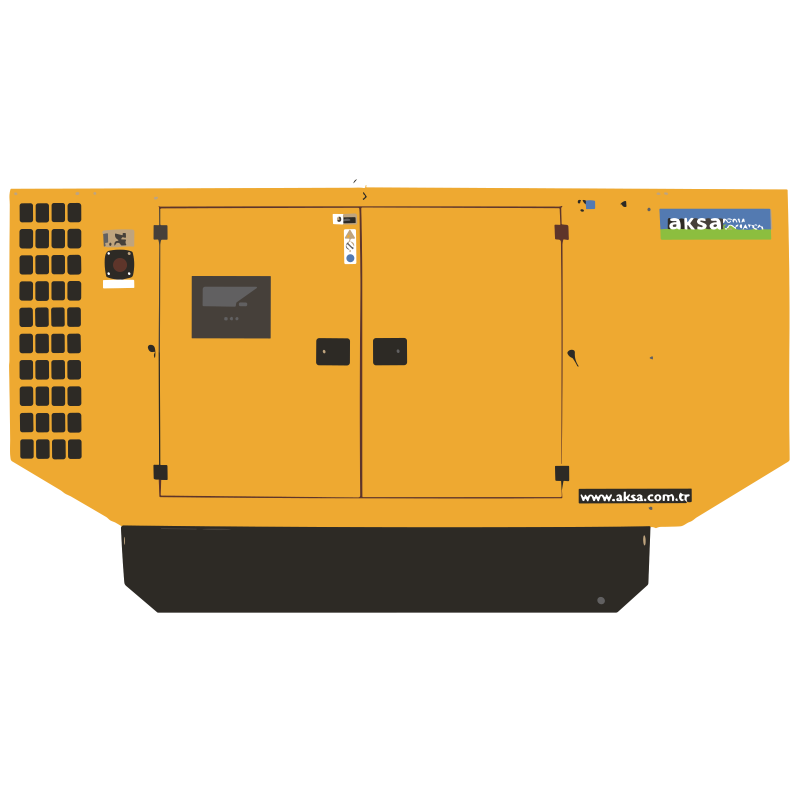

CANOPY | DRY WEIGHT (kg.) | LENGTH | WIDTH | HEIGHT | TANK CAPACITY (lt.) (Lt.) |
AK 49 | 1850 | 3402 | 1147 | 2007 | 340 |
STANDARD SPECIFICATIONS
Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
OPTIONAL EQUIPMENTS
ENGINE
• Fuel-Water Seperator Filter• Low water level alarm
• Oil heater
ALTERNATOR
• Anti-Condensation Heater• Over sized alternator
• Main line circuit breaker
CONTROL SYSTEM
• Remote annunciator panel• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank• Automatic or manual fuel filling system
• Manual oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
Powering Up: The 150 KVA Aksa Diesel Generator - Aksa AP150
In a world where consistent power is crucial for businesses, industries, and everyday life, having a dependable source of energy is non-negotiable. When you need a powerhouse that can handle the most demanding applications, the 150 KVA Aksa Diesel Generator, specifically the Aksa AP150 model, is the name that stands out. In this blog post, we'll take an in-depth look at the features and advantages of the Aksa AP150, and why it's the ultimate solution for ensuring uninterrupted power supply.
150 KVA: Power to Rely On
The Aksa AP150 is engineered for one primary purpose: to deliver robust and consistent power. With an impressive output of 150 KVA (120 kW), this generator is well-equipped to handle a wide range of applications, from providing critical backup power for hospitals and data centers to sustaining continuous energy supply for large-scale industrial operations. Aksa's steadfast commitment to quality and performance makes the AP150 a dependable source of power.
Efficiency that Saves You Money
Efficiency and fuel economy are paramount when choosing a diesel generator. The Aksa AP150 excels in this aspect. Its advanced engine technology ensures it maximizes fuel usage, making it both cost-effective and environmentally friendly. Whether you're seeking to reduce operational costs or minimize your carbon footprint, the AP150 is the right choice.
User-Friendly Operation
The Aksa AP150 is designed with the user in mind. It features an intuitive interface for easy operation and is equipped with advanced features, such as automatic startup and shutdown. You can also monitor and control the generator remotely, ensuring your power needs are met without manual intervention.
Quiet and Environmentally Responsible
Noise pollution is often a concern with diesel generators. The Aksa AP150 tackles this issue with advanced soundproofing technology, reducing operational noise and making it suitable for various settings, whether urban or remote. Moreover, it complies with environmental standards and emissions regulations, demonstrating Aksa's commitment to environmental responsibility.
Versatility for All Your Needs
The Aksa AP150 is highly adaptable, making it suitable for a wide array of applications. Whether you need standby power, prime power, or continuous power, this generator is ready to meet your requirements. It's the ideal solution for construction sites, remote off-grid locations, residential backup power, and numerous industrial applications.
Simplified Maintenance
Regular maintenance is crucial for keeping your generator in top condition. The Aksa AP150 simplifies this with easy access to critical components, reducing downtime and ensuring your generator remains reliable and efficient.
Conclusion
The 150 KVA Aksa Diesel Generator, Aksa AP150, is a testament to Aksa's unyielding dedication to quality and reliability. Whether you're dealing with unexpected power outages, need a backup source for emergencies, or require a robust power supply for your business, the AP150 is engineered to meet your needs. With its efficiency, user-friendly operation, minimal noise, versatility, and simplified maintenance, the Aksa AP150 is the ideal choice for ensuring uninterrupted power supply. Trust in the AP150, and you can focus on what you do best while your power supply remains steadfast and dependable.
