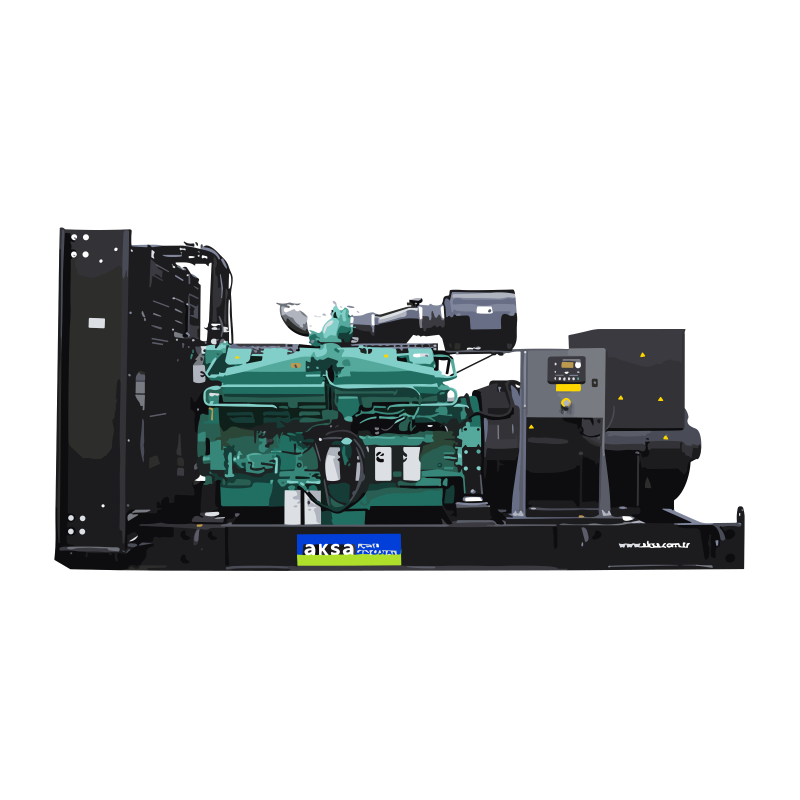

1650 KVA Diesel Generator | AC1650
EMI Available
Model: AC 1650
Brand: AKSA
0.00 0.00

Full Specification of AC 1650 Diesel Generator With Details Guide!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


  • Product: CUMMINS
  • Alternator: ECO 46-1S/4 A
  • CONTROL SYSTEM: DSE 7320

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

  • TS ISO 8528
  • CE
  • SZUTEST
  • 2000/14/EC

General Characteristics

Model Name

AC 1650

Frequency (Hz)

50

Fuel Type

Diesel

Engine Made and Model

CUMMINS - KTA50-GS8

Alternator Made and Model

Mecc Alte - ECO 46-1S/4 A

Control Panel Model

DSE 7320

Canopy

AK 98-AP1650


3 Phase, 50 Hz, PF 0.8

VOLTAGE

STANDBY RATING (ESP)

PRIME RATING (PRP)

Standby Amper

kVA

kW

kVA

kW

400/231

1650

1320.00

1500

1200.00

2381.64

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.


ENGINE SPECIFICATIONS

Engine

CUMMINS

Engine Model

KTA50-GS8

NO. OF CYLINDERS AND BUILD

16 cylinders - V type

BORE AND STROKE

mm

159 X 159

TOTAL DISPLACEMENT

L

50.3

Aspiration

Turbo Charged and AfterCooled

COMPRESSION RATIO

14.9:1

RATED SPEED (RPM)

d/dk

1500

OIL CAPACITY

L

204

Standby Power (kW/HP)

1429/1915

Prime Power

1287/1725

Block Heater QTY

2

Block Heater Power (Watt)

3000

Fuel Type

Diesel

Injection Type and System

Direct

Type of Fuel Pump

Cummins PT

Governor System

Electronic

Operating Voltage (Vdc)

24 Vdc

Battery and Capacity (Qty/Ah)

4x143

Charge Alternator (A)

35

Cooling Method

Water Cooled

Cooling Fan Air Flow (m3/min)

2631

Coolant Capacity (engine only / with radiator) (lt)

165/420

Air Filter

Dry Type

Fuel Cons. Prime With %100 Load (lt/hr)

309

Fuel Cons. Prime With %75 Load (lt/hr)

238

Fuel Cons. Prime With %50 Load (lt/hr)

167


ALTERNATOR SPECIFICATIONS

Manufacturer

Mecc Alte

Alternator Made and Model

ECO 46-1S/4 A

Frequency (Hz)

Hz

50

Power (kVA)

kVA

1500

DESIGN

  Brushless

VOLTAGE

V

400

Phase

3

A.V.R.

DER1

Voltage Regulation

(+/-)

0.5

Insulation System

H

Protection

IP23

Rated Power Factor

0.8

WEIGHT COMP. GENERATOR (Kg)

3010

COOLING AIR (m³/min)

m3

135


SIZE and WEIGHT

Open Type

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

10200

5396

1950

2444

2000

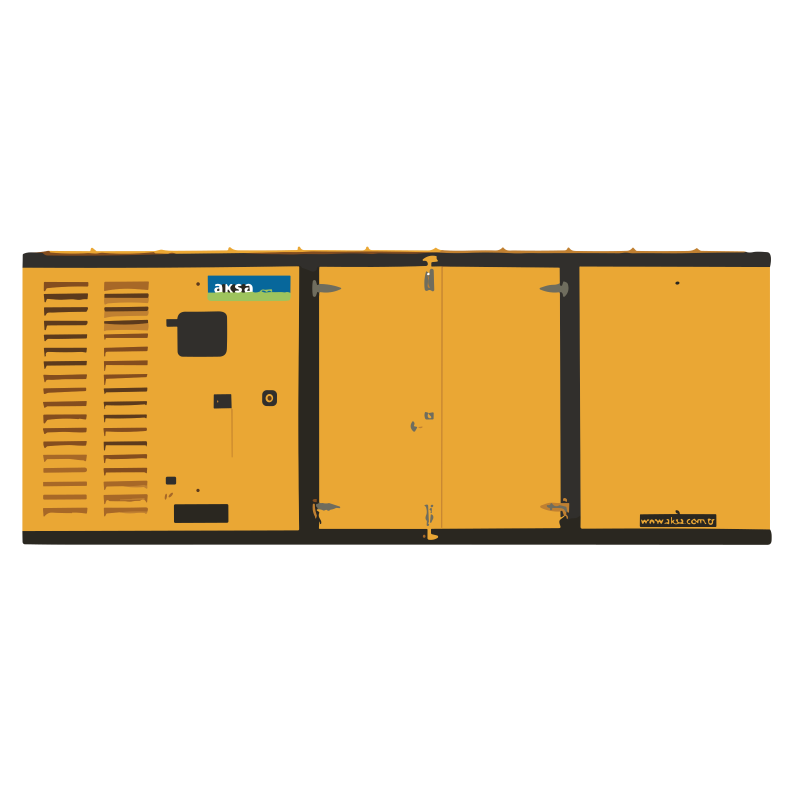

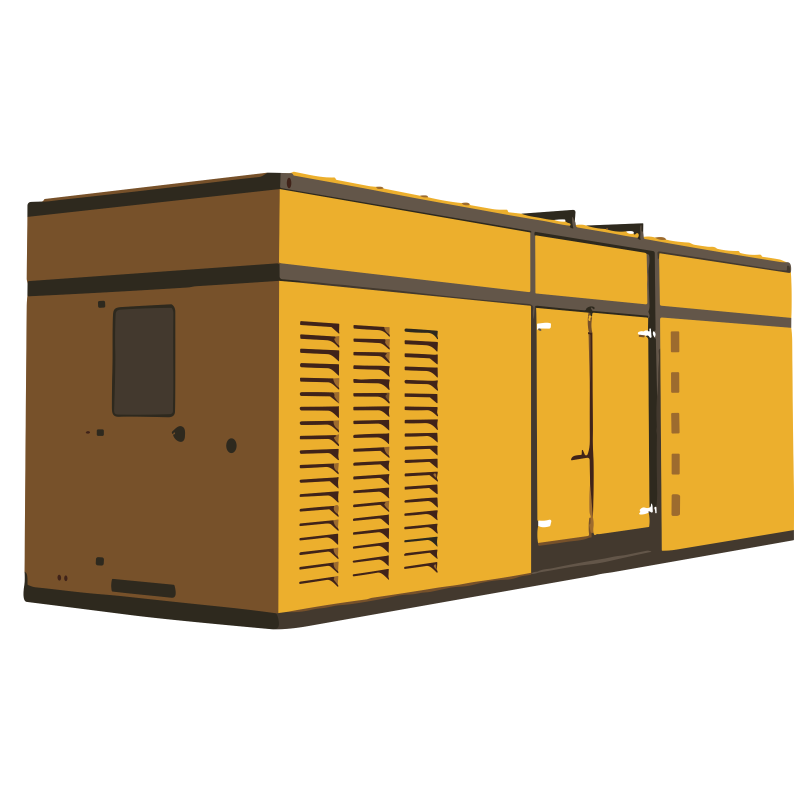

CANOPY

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

AK 98-AP1650

15100

9000

2270

2648

1900


STANDARD SPECIFICATIONS

Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5

OPTIONAL EQUIPMENTS

ENGINE
• Remote Radiator Cooling
• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker

CONTROL SYSTEM
• Automatic synchronizing and power control system ( multi gen-set Parallel )
• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Double wall chassis
• Supplied with oil and coolant - 30 °C
• Automatic transfer switch

AC1650 Diesel Generator: Unleashing Unrivaled Power

In a world where electricity is the lifeblood of industries and essential services, the AC1650 Diesel Generator by Aksa, with its commanding 1650 KVA capacity, stands as a true titan of power generation. Designed for the most demanding applications, this generator is a symbol of unwavering power. In this comprehensive blog, we will explore the various facets of the AC1650, from its key features to applications and maintenance tips.

Key Features

  1. Unmatched Power Unleashed:
    • The AC1650 Diesel Generator boasts a staggering 1650 KVA capacity, making it the ultimate solution for applications that require substantial and uninterrupted electricity. From large manufacturing facilities to data centers, it has the muscle to deliver.
  2. Fuel Efficiency at Its Best:
    • Powered by a dependable diesel engine, the AC1650 is not just about power but also efficiency. Its fuel economy ensures cost-effective operation, appealing to businesses looking to manage their operational expenses.
  3. Reliability Beyond Compare:
    • When downtime is not an option, the AC1650 steps up. It is engineered for utmost reliability, with premium components that ensure a consistent power supply, even during extended outages.
  4. Versatility Redefined:
    • The AC1650 adapts seamlessly to a wide array of environments and applications. It can serve as a primary power source for remote locations or provide robust backup power for mission-critical facilities.
  5. Advanced Control and Monitoring:
    • The digital control panel features user-friendly functions, including remote monitoring, automated testing, and effortless integration with existing infrastructure. This gives you full control over your power supply, regardless of your location.

Applications

The AC1650 Diesel Generator is suitable for a myriad of sectors, including:

  • Large-scale manufacturing and industrial complexes
  • Data centers and IT facilities
  • Healthcare and medical facilities
  • Telecommunications and data networks
  • Mining and mineral extraction operations
  • Construction sites and infrastructure projects
  • Agricultural operations
  • Large events and entertainment venues

Maintenance

Regular maintenance is crucial to ensure the generator's optimal performance. Consider these maintenance tips for the AC1650:

  • Scheduled oil changes and filter replacements
  • Routine checks of the cooling system and radiator
  • Inspections of electrical connections and fuel lines
  • Monitoring the control panel for any alarms or warnings

Safety Precautions

Safety is paramount when operating the AC1650 generator. Adhere to these safety guidelines:

  • Ensure proper ventilation to prevent exhaust accumulation in the generator room.
  • Regularly inspect and clean the generator and its surroundings.
  • Ensure that operators are adequately trained to handle the generator safely.

Environmental Compliance

The AC1650 Diesel Generator complies with emissions and environmental regulations, reaffirming its commitment to eco-friendliness.

Conclusion

The AC1650 Diesel Generator is not just a power source; it is a lifeline for industries and services that rely on unwavering electricity. With its remarkable features, adaptability, and reliability, it embodies a comprehensive power solution for the modern world. For the latest information on the AC1650 and its specifications, consult Aksa or an authorized distributor. Experience power like never before with the AC1650.
