200 KVA Aksa Diesel Generator | Aksa AP200
EMI Available
Model: AP 200
Brand: AKSA
0.00 0.00

Full Specification of AP 200 Diesel Generator With Details Guide!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


  • Product: PERKINS
  • Alternator: ECO 38-1S/4 C
  • CONTROL SYSTEM: DSE 6120

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

  •   TS ISO 8528
  •   TS ISO 9001-2008
  •   CE
  •   SZUTEST
  •   2000/14/EC

General Characteristics

Model Name

AP 200

Frequency (Hz)

50

Fuel Type

Diesel

Engine Made and Model

PERKINS - 1106A-70TAG3

Alternator Made and Model

Mecc Alte - ECO 38-1S/4 C

Control Panel Model

DSE 6120

Canopy

AK 49 TRP


3 Phase, 50 Hz, PF 0.8

VOLTAGE

STANDBY RATING (ESP)

PRIME RATING (PRP)

Standby Amper

kVA

kW

kVA

kW

400/231

200

160.0

180

144.0

288.68

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.


ENGINE SPECIFICATIONS

Engine

PERKINS

Engine Model

1106A-70TAG3

NO. OF CYLINDERS AND BUILD

6 cylinders - in line

BORE AND STROKE

mm

105 X 135

TOTAL DISPLACEMENT

L

7.01

Aspiration

Turbo Charged and Charge Air Cooled

COMPRESSION RATIO

16.0:1

RATED SPEED (RPM)

d/dk

1500

OIL CAPACITY

L

18

Standby Power (kW/HP)

180.2/241,55

Prime Power

162.7/218,09

Block Heater QTY

1

Block Heater Power (Watt)

1500

Fuel Type

Diesel

Injection Type and System

Direct

Type of Fuel Pump

Delphi DP210G Rotary Type

Governor System

Mechanic

Operating Voltage (Vdc)

12 Vdc

Battery and Capacity (Qty/Ah)

1x85

Charge Alternator (A)

65

Cooling Method

Water Cooled

Coolant Capacity (engine only / with radiator) (lt)

/21

Air Filter

Dry Type

Fuel Cons. Prime With %100 Load (lt/hr)

41.4

Fuel Cons. Prime With %75 Load (lt/hr)

32

Fuel Cons. Prime With %50 Load (lt/hr)

20.2


ALTERNATOR SPECIFICATIONS

Manufacturer

Mecc Alte

Alternator Made and Model

ECO 38-1S/4 C

Frequency (Hz)

Hz

50

Power (kVA)

kVA

180

DESIGN

  4 Pole,  Brushless

VOLTAGE

V

400

Phase

3

A.V.R.

DSR

Voltage Regulation

(+/-)

1

Insulation System

H

Protection

IP23

Rated Power Factor

0.8

WEIGHT COMP. GENERATOR (Kg)

525

COOLING AIR (m³/min)

m3

32


SIZE and WEIGHT

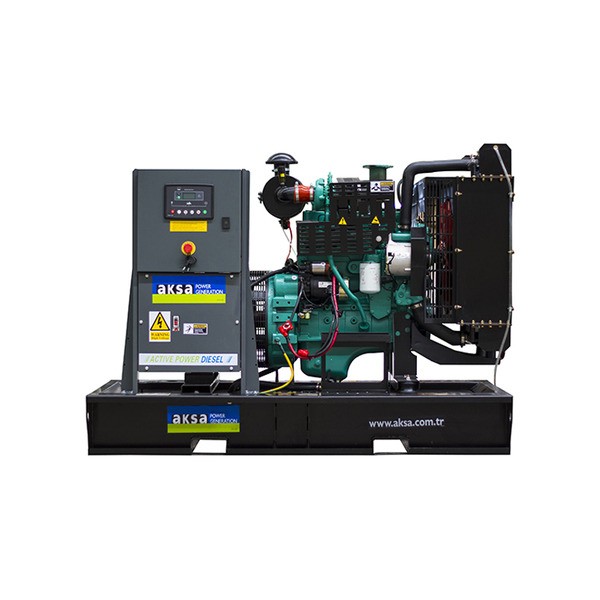

Open Type

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

1650

2300

1080

1642

340

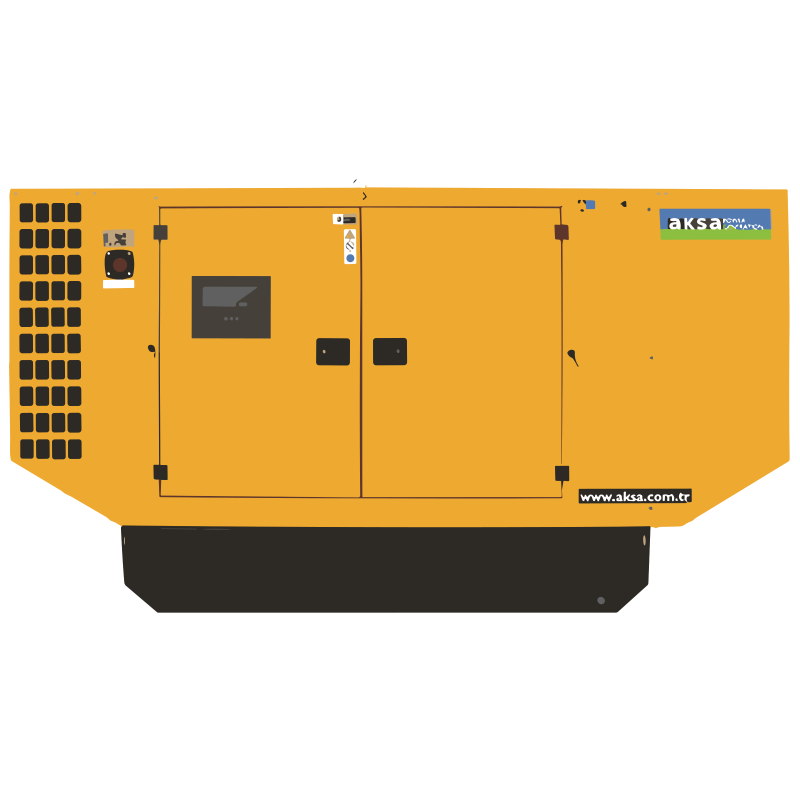

CANOPY

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

AK 49 TRP

2050

3402

1147

2008

340


STANDARD SPECIFICATIONS

Water cooled, Diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation

OPTIONAL EQUIPMENTS

ENGINE
• Fuel-Water Seperator Filter
• Low water level alarm
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker

CONTROL SYSTEM
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch

Empowering Your World: The 200 KVA Aksa Diesel Generator - Aksa AP200

In an age where a continuous and reliable power supply is the lifeblood of modern society, having a trusted source of energy is paramount. The 200 KVA Aksa Diesel Generator, more specifically the Aksa AP200 model, is a powerhouse that is primed to meet even the most demanding of energy needs. In this blog post, we will delve into the remarkable features and advantages of the Aksa AP200, shedding light on why it is the ultimate solution for ensuring a seamless and uninterrupted power supply.

Unleashing 200 KVA of Pure Power

The Aksa AP200 is meticulously engineered to provide unwavering and robust power. Boasting an impressive output of 200 KVA (160 kW), this generator is more than capable of accommodating a diverse range of applications. From serving as a critical backup for hospitals and data centers to providing uninterrupted power for expansive industrial operations, the AP200's performance is a testament to Aksa's commitment to quality and reliability.

Efficiency that Saves Resources and Costs

Efficiency and fuel economy are paramount when considering a diesel generator. The Aksa AP200 excels in this department. Its advanced engine technology ensures optimal fuel utilization, making it both cost-effective and environmentally friendly. Whether you aim to reduce operational costs or minimize your carbon footprint, the AP200 is the smart choice.

User-Friendly Operation

The Aksa AP200 has been designed with the user in mind. It features an intuitive interface for easy operation and comes equipped with advanced features such as automatic startup and shutdown. With the ability to monitor and control the generator remotely, you can rest assured that your power needs are met without manual intervention.

Quiet and Environmentally Responsible

Noise pollution can be a concern with diesel generators, but the Aksa AP200 tackles this issue head-on. It is equipped with advanced soundproofing technology, reducing operational noise and making it suitable for a variety of settings, whether in urban or remote environments. Moreover, the AP200 complies with environmental standards and emissions regulations, underlining Aksa's commitment to environmental responsibility.

Versatility for Every Scenario

The Aksa AP200 is highly adaptable, making it suitable for a wide range of applications. Whether you need standby power, prime power, or continuous power, this generator is ready to meet your specific requirements. It serves as an ideal solution for construction sites, remote off-grid locations, residential backup power, and a wide array of industrial applications.

Simplified Maintenance

Regular maintenance is vital to keep your generator in peak condition. The Aksa AP200 simplifies this with easy access to critical components, reducing downtime and ensuring that your generator remains reliable and efficient.

Conclusion

The 200 KVA Aksa Diesel Generator, Aksa AP200, is a testament to Aksa's unwavering dedication to quality and reliability. Whether you're dealing with unpredictable power outages, require a backup source for emergencies, or need a robust power supply for your business, the AP200 is engineered to meet your needs. With its efficiency, user-friendly operation, minimal noise, versatility, and simplified maintenance, the Aksa AP200 is the ideal choice for ensuring an uninterrupted power supply. Trust in the AP200, and you can focus on what you do best while your power supply remains unwavering and dependable.
