2250 KVA Diesel Generator | AC2250
EMI Available
Model: AC 2250
Brand: AKSA
0.00 0.00

Full Specification of AC 2250 Diesel Generator With Details Guide!

For Quotation Please Contact:

Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516

E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"


  • Product: CUMMINS
  • Alternator: ECO 46-1L/4 A
  • CONTROL SYSTEM: DSE 7320

Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.

Certificate

  • TS ISO 8528
  • CE
  • SZUTEST
  • 2000/14/EC

General Characteristics

Model Name

AC 2250

Frequency (Hz)

50

Fuel Type

Diesel

Engine Made and Model

CUMMINS - QSK60-G4

Alternator Made and Model

Mecc Alte - ECO 46-1L/4 A

Control Panel Model

DSE 7320

Canopy

AK 99


3 Phase, 50 Hz, PF 0.8

VOLTAGE

STANDBY RATING (ESP)

PRIME RATING (PRP)

Standby Amper

kVA

kW

kVA

kW

400/231

2250

1800.0

2045

1636.0

3247.69

STANDBY RATING (ESP) : Applicable for supplying power to varying electrical load for the duration of power interruption of a reliable utility source. ESP is in accordance with ISO 8528-1. Overload is not allowed.

PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.


ENGINE SPECIFICATIONS

Engine

CUMMINS

Engine Model

QSK60-G4

NO. OF CYLINDERS AND BUILD

16 cylinders - V type

BORE AND STROKE

mm

159 X 159

TOTAL DISPLACEMENT

L

60.2

Aspiration

Turbo Charged and AfterCooled

COMPRESSION RATIO

14.5:1

RATED SPEED (RPM)

d/dk

1500

OIL CAPACITY

L

280

Standby Power (kW/HP)

1915/2567

Prime Power

1730/2319

Block Heater QTY

2

Block Heater Power (Watt)

3000

Fuel Type

Diesel

Injection Type and System

Direct

Type of Fuel Pump

Cummins HPI-PT

Governor System

Electronic

Operating Voltage (Vdc)

24 Vdc

Battery and Capacity (Qty/Ah)

4x143

Charge Alternator (A)

55

Cooling Method

Water Cooled

Cooling Fan Air Flow (m3/min)

2374

Coolant Capacity (engine only / with radiator) (lt)

157/500

Air Filter

Dry Type

Fuel Cons. Prime With %100 Load (lt/hr)

394

Fuel Cons. Prime With %75 Load (lt/hr)

291

Fuel Cons. Prime With %50 Load (lt/hr)

200


ALTERNATOR SPECIFICATIONS

Manufacturer

Mecc Alte

Alternator Made and Model

ECO 46-1L/4 A

Frequency (Hz)

Hz

50

Power (kVA)

kVA

2100

DESIGN

  Brushless

VOLTAGE

V

400

Phase

3

A.V.R.

DER1

Voltage Regulation

(+/-)

0.5

Insulation System

H

Protection

IP23

Rated Power Factor

0.8

WEIGHT COMP. GENERATOR (Kg)

3810

COOLING AIR (m³/min)

m3

135


SIZE and WEIGHT

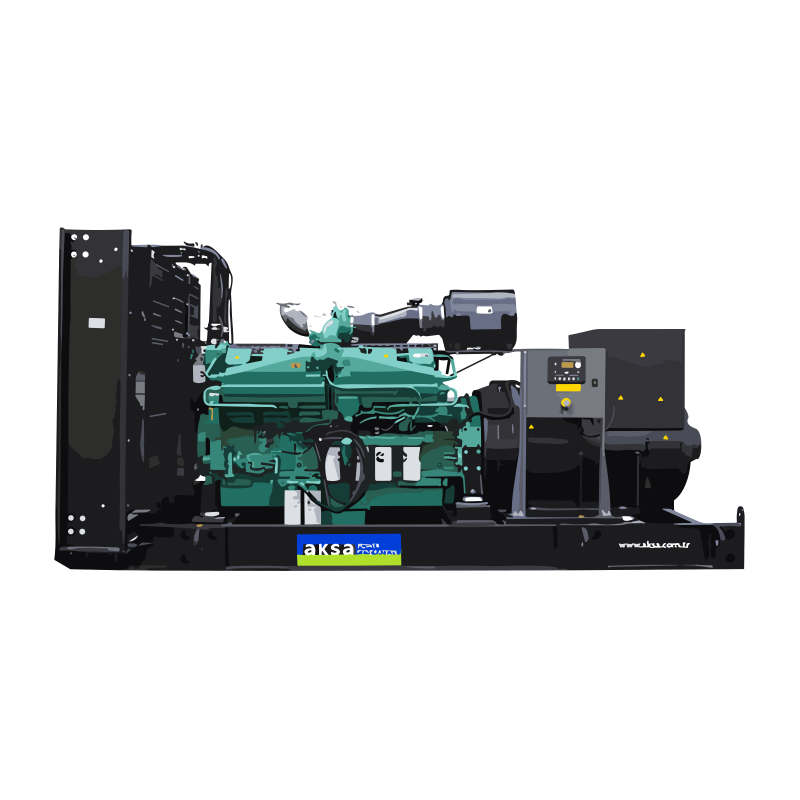

Open Type

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

15500

5706

2408

3090

2000

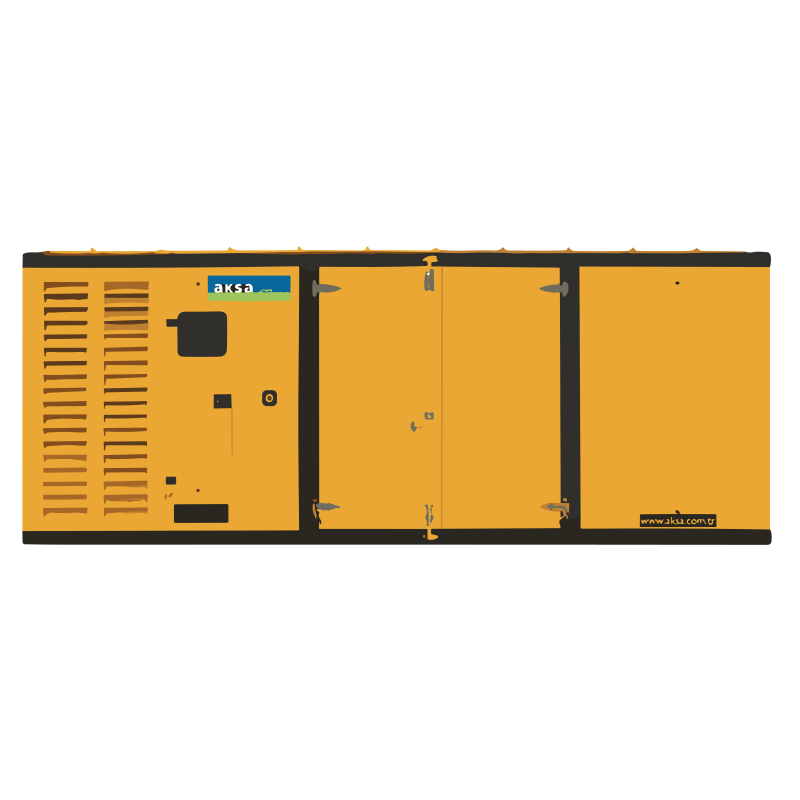

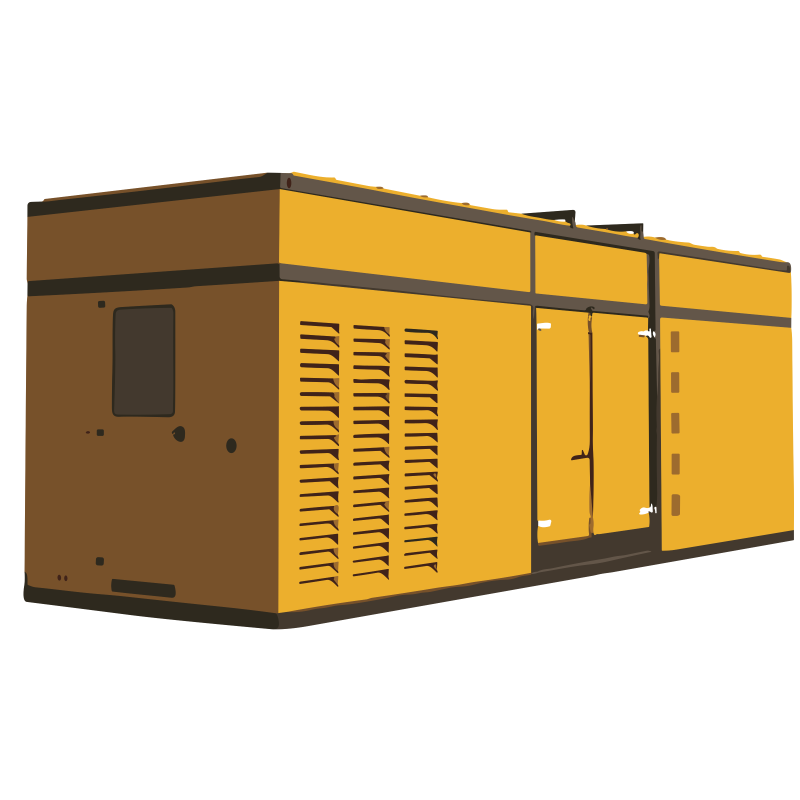

CANOPY

DRY WEIGHT (kg.)
(kg.)

LENGTH
(mm.)

WIDTH
(mm.)

HEIGHT
(mm.)

TANK CAPACITY (lt.) (Lt.)

AK 99

21100

9000

2800

3456

2200


STANDARD SPECIFICATIONS

Water cooled diesel engine
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Steel base frame and anti-vibration isolators
Spare external fuel tank (open set)
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately
Static battery charger
Manual for application and installation
Generators Sets’ voltage and frequency regulation comply with ISO 8528-5

OPTIONAL EQUIPMENTS

ENGINE
• Remote Radiator Cooling
• Fuel-Water Seperator Filter
• Oil heater

ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• PMG excitation + AVR
• Main line circuit breaker

CONTROL SYSTEM
• Automatic synchronising and power control system ( multi gen-set Parallel )
• Paralel system with mains.
• Transition synchronization with mains
• Remote annunciator panel
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter

TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker

OTHER ACCESSORIES

• Main Fuel Tank
• Automatic or manual fuel filling system
• Electrical oil drain pump
• Low and high fuel level alarm
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Tool kit for maintenance
• 1500/3000 hours maintenance kit
• Supplied with oil and coolant - 30 °C

AC2250 Diesel Generator: Where Unstoppable Power Meets Precision

In a world where uninterrupted power is the lifeblood of critical industries, the AC2250 Diesel Generator by Aksa, boasting a commanding 2250 KVA capacity, emerges as the epitome of power generation. This generator is meticulously designed for the most demanding applications, delivering an unwavering source of electricity. In this comprehensive blog, we will delve into the various aspects of the AC2250, from its exceptional features to its diverse applications and maintenance recommendations.

Key Features

  1. Unmatched Power Unleashed:

    The AC2250 Diesel Generator stands as a testament to raw power, offering an impressive 2250 KVA capacity. It's a solution for applications that require substantial, uninterrupted electricity, from sprawling industrial facilities to data centers and more.

      • Fuel Efficiency at Its Pinnacle:

        Driven by a dependable diesel engine, the AC2250 doesn't just deliver power, it does so efficiently. Its fuel economy ensures cost-effective operation, making it an attractive choice for businesses aiming to manage operational costs.

          • Reliability Beyond Measure:

            When continuity is paramount, the AC2250 excels. Engineered for unmatched reliability, it incorporates premium components that ensure a consistent power supply, even during prolonged outages.

              • Versatility at Its Core:

                The AC2250 adapts seamlessly to diverse environments and applications. It serves as a primary power source for remote locations and a stalwart backup for mission-critical facilities, making it an ideal choice for numerous industries.

                  • Advanced Control and Monitoring:

                    The digital control panel, featuring a user-friendly interface, offers remote monitoring, automated testing, and effortless integration with existing infrastructure. This provides you with full control over your power supply, regardless of your location.

                      Applications

                      The AC2250 Diesel Generator finds its place in an array of sectors, including:

                      • Large-scale manufacturing and industrial complexes
                      • Data centers and IT facilities
                      • Healthcare and medical facilities
                      • Telecommunications and data networks
                      • Mining and mineral extraction operations
                      • Construction sites and infrastructure projects
                      • Agricultural operations
                      • Large events and entertainment venues

                      Maintenance

                      Regular maintenance is key to ensuring optimal performance. Consider these maintenance tips for the AC2250:

                      • Scheduled oil changes and filter replacements
                      • Routine checks of the cooling system and radiator
                      • Inspections of electrical connections and fuel lines
                      • Monitoring the control panel for any alarms or warnings

                      Safety Precautions

                      Safety is paramount when operating the AC2250 generator. Follow these safety guidelines:

                      • Ensure proper ventilation in the generator room to prevent exhaust accumulation.
                      • Regularly inspect and clean the generator and its surroundings.
                      • Ensure that operators are adequately trained to handle the generator safely.

                      Environmental Compliance

                      The AC2250 Diesel Generator adheres to emissions and environmental regulations, emphasizing its eco-friendliness and environmental responsibility.

                      Conclusion

                      The AC2250 Diesel Generator is not just a power source; it is the lifeblood of industries and services that rely on unwavering electricity. With its remarkable features, adaptability, and reliability, it represents a comprehensive power solution for the modern world. For the latest information on the AC2250 and its specifications, consult with Aksa or an authorized distributor. Unleash power like never before with the AC2250.
