Full Specification of AP 250 Diesel Generator With Details Guide!
For Quotation Please Contact:
Mobile/WhatsApp: +880 1816 553327 "or" +880 1730848516
E-Mail: "info@merlintechbd.com "or" sales.merlin18@gmail.com"
- Product: PERKINS
- Alternator: ECO 38-2M/4 C
- CONTROL SYSTEM: DSE 7320
Aksa power generation system, providing optimum performance, and reliability, for stationary standby, prime power, and continuous duty applications. All generator sets are factory build, and production tested.
Certificate
- TS ISO 8528
- TS ISO 9001-2008
- CE
- SZUTEST
- 2000/14/EC
Model Name | AP 250 | ||
---|---|---|---|
Frequency (Hz) | 50 | ||
Fuel Type | Diesel | ||
Engine Made and Model | PERKINS - 1206A-E70TTAG2 | ||
Alternator Made and Model | Mecc Alte - ECO 38-3S/4 A | ||
Control Panel Model | DSE 7320 | ||
Canopy | MS 60 |
VOLTAGE | STANDBY RATING (ESP) | PRIME RATING (PRP) | Standby Amper | ||
---|---|---|---|---|---|
kVA | kW | kVA | kW | ||
400/231 | 250 | 200.00 | 225 | 180.00 | 360.85 |
PRIME RATING (PRP) : Applicable for supplying power to varying electrical load for unlimited hours. PRP is in accordance with ISO 8528-1. 10 % overload capability is available for a period of 1 hour within 12-hour perod of operation.
Engine | PERKINS | ||
---|---|---|---|
Engine Model | 1206A-E70TTAG2 | ||
NO. OF CYLINDERS AND BUILD | 6 cylinders - in line | ||
BORE AND STROKE | mm | 105 X 135 | |
TOTAL DISPLACEMENT | L | 7,01 | |
Aspiration | Turbo Charged and AfterCooled | ||
COMPRESSION RATIO | 15.8:1 | ||
RATED SPEED (RPM) | d/dk | 1500 | |
OIL CAPACITY | L | 16 | |
Standby Power (kW/HP) | 226.1/303.1 | ||
Prime Power | 204.2/273.7 | ||
Block Heater QTY | |||
1 | |||
Block Heater Power (Watt) | |||
1500 | |||
Fuel Type | |||
Diesel | |||
Injection Type and System | |||
COMMON RAİL | |||
Type of Fuel Pump | |||
Direct | |||
Governor System | |||
ECM | |||
Operating Voltage (Vdc) | |||
12 Vdc | |||
Battery and Capacity (Qty/Ah) | |||
1x85 | |||
Charge Alternator (A) | |||
100 | |||
Cooling Method | |||
Water Cooled | |||
Coolant Capacity (engine only / with radiator) (lt) | |||
25/29.6 | |||
Air Filter | |||
Dry Type | |||
Fuel Cons. Prime With %100 Load (lt/hr) | |||
51 | |||
Fuel Cons. Prime With %75 Load (lt/hr) | |||
38 | |||
Fuel Cons. Prime With %50 Load (lt/hr) | |||
25 |
Manufacturer | Mecc Alte | |
---|---|---|
Alternator Made and Model | ECO 38-3S/4 A | |
Frequency (Hz) | Hz | 50 |
Power (kVA) | kVA | 225 |
DESIGN | Brushless | |
VOLTAGE | V | 400 |
Phase | 3 | |
A.V.R. | DSR | |
Voltage Regulation | (+/-) | 1 |
Insulation System | H | |
Protection | IP23 | |
Rated Power Factor | 0.8 | |
WEIGHT COMP. GENERATOR (Kg) | 602 | |
COOLING AIR (m³/min) | m3 | 32 |

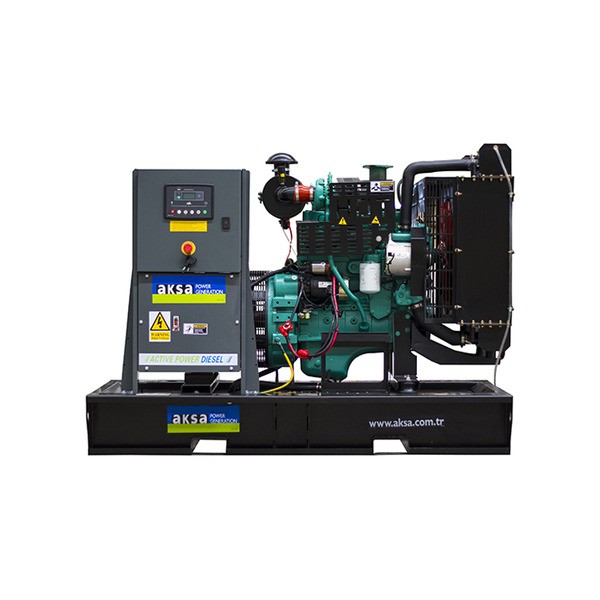

Open Type | DRY WEIGHT (kg.) (kg.) | LENGTH (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
---|---|---|---|---|---|
2750 | 1300 | 1928 | 470 | ||

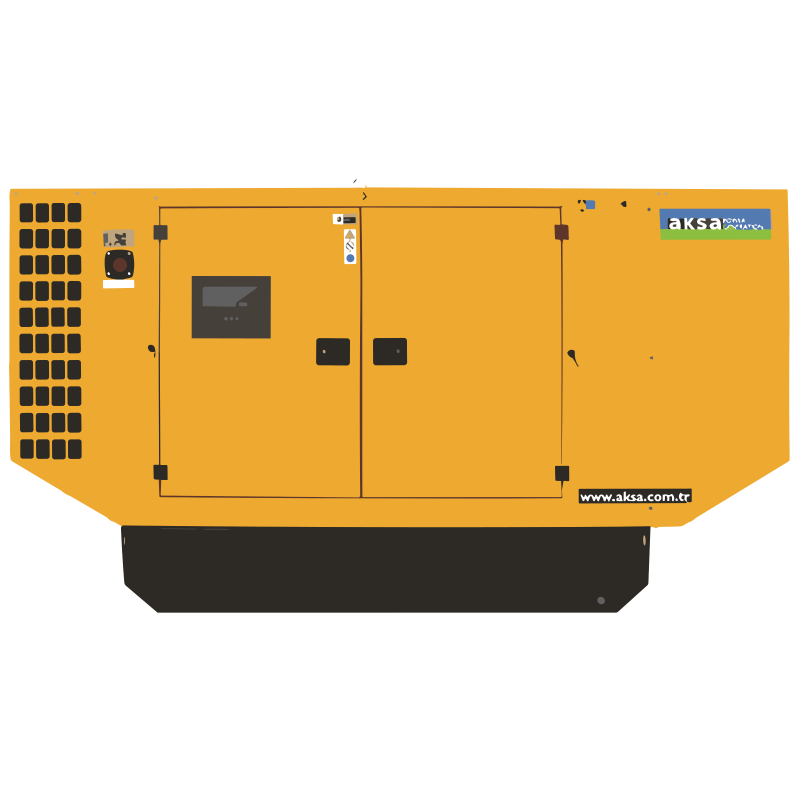

CANOPY | DRY WEIGHT (kg.) (kg.) | LENGTH (mm.) | WIDTH (mm.) | HEIGHT (mm.) | TANK CAPACITY (lt.) (Lt.) |
MS 60 | 3180 | 3934 | 1356 | 2140 | 470 |
Radiator with mechanical fan
Protective grille for rotating and hot parts
Electric starter and charge alternator
Starting battery (with lead acid) including rack and cables
Engine coolant heater
Base frame design incorporates an integral fuel tank and anti-vibration isolators
Flexible fuel connection hoses
Single bearing, class H alternator
Industrial exhaust silencer and steel bellows supplied separately(for open sets)
Static battery charger
Manual for application and installation
• Fuel-Water Seperator Filter
• Oil heater
ALTERNATOR
• Anti-Condensation Heater
• Over sized alternator
• Main line circuit breaker
CONTROL SYSTEM
• Remote annunciator panel
• Remote relay output
• Alarm output relays
• Remote communication with modem
• Earth fault, single set
• Charge Ammeter
TRANSFER SWITCH
• Three or four pole contactor
• Three or four pole motor operated circuit breaker
OTHER ACCESSORIES
• Main Fuel Tank
• Automatic or manual fuel filling system
• Manual oil drain pump
• Electrical oil drain pump
• Residential silencer
• Enclosure: weater protective or sound attenuated
• Duct adapter ( on radiator)
• Inlet and outlet motorised louvers
• Inlet and outlet acoustic baffles
• Trailer
• Tool kit for maintenance
• Supplied with oil and coolant - 30 °C
• Battery isolating switch
The Powerhouse of Energy: Unveiling the 250 KVA Diesel Generator - Aksa AC2250
In today's fast-paced world, businesses rely heavily on consistent and uninterrupted power supply to keep their operations running smoothly. Whether it's an industrial facility, a commercial establishment, or an event requiring backup power, a dependable generator is a must. One such power-packed solution is the 250 KVA Diesel Generator, specifically the Aksa AC2250. In this blog post, we will explore the key features and benefits of this robust generator and understand why it is a game-changer in the world of power generation.
1. Reliability Beyond Measure
Aksa, a globally recognized brand in the power generation industry, has a long-standing reputation for delivering dependable and high-quality generators. The Aksa AC2250 is no exception. This 250 KVA generator is designed to provide a constant and reliable source of power, ensuring that your business or event continues without interruptions, even during power outages or emergencies.
2. Power Efficiency
The Aksa AC2250 is built with efficiency in mind. Its 250 KVA capacity offers ample power to cater to a wide range of applications, from industrial machinery to commercial buildings. The efficient diesel engine ensures that you get the most out of your fuel, which can be crucial for cost savings and environmental considerations.
3. Robust Construction
The Aksa AC2250 is built to last. Its rugged design and high-quality materials make it ideal for withstanding harsh environmental conditions. Whether you need it for a construction site, an outdoor event, or a remote location, this generator can handle it with ease.
4. Advanced Technology
Aksa has incorporated state-of-the-art technology into the AC2250. Features like automatic voltage regulation and soundproofing make it a versatile choice. The generator operates quietly, reducing noise pollution and ensuring a comfortable work environment.
5. Easy Maintenance
Routine maintenance is vital for ensuring the longevity and reliability of any generator. The Aksa AC2250 is designed for user-friendliness, making it easier to conduct regular check-ups and maintenance tasks, ensuring the longevity of the unit.
6. Environmental Considerations
In an era where sustainability is crucial, Aksa has taken environmental considerations into account. The AC2250 is designed to reduce emissions and minimize its environmental impact, making it a responsible choice for power generation.
7. Versatile Applications
The 250 KVA capacity of the Aksa AC2250 allows it to be used in various scenarios. Whether you need it for a construction site, a remote research facility, or as a backup power source for your business, this generator can handle the task.
Conclusion
In the world of power generation, the 250 KVA Diesel Generator - Aksa AC2250 stands out as a reliable, efficient, and environmentally responsible choice. With its advanced technology, ease of maintenance, and versatile applications, it's a powerful asset for businesses and events. When you invest in the Aksa AC2250, you're not just buying a generator; you're ensuring that your power needs are met with excellence and reliability. Trust in Aksa's legacy of quality and make the Aksa AC2250 a part of your power solution.
